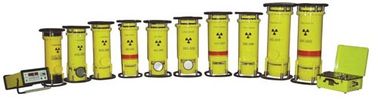

Directional radiation portable X-ray flaw detector, Glass X ray tube, XXQ series flaw detectors

China Directional radiation portable X-ray flaw detector, Glass X ray tube, XXQ series flaw detectors supplier
Directional radiation portable X-ray flaw detector, Glass X ray tube, XXQ series flaw detectors supplier Directional radiation portable X-ray flaw detector, Glass X ray tube, XXQ series flaw detectors supplier

Large Image :  Directional radiation portable X-ray flaw detector, Glass X ray tube, XXQ series flaw detectors

Product Details:

Place of Origin: China
Brand Name: RAYTECH
Certification: ISO CE
Model Number: XXQ Series

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Carton
Payment Terms: Western Union, T/T, L/C
Supply Ability: 500units/month
Contact Now
Detailed Product Description
Product Name: Directional Radiation Portable X-ray Flaw Detector, Glass X Ray Tube, XXQ Series Flaw Detectors X-ray Tube: Ditectional Glass Tube
Output Voltage(kv): 50-350 Max Penetration (mm): 7-60
Input (KW): 1.2-3.5 Beam Angle: 40 Degree And 40+5degree



Directional radiation portable X-ray flaw detector, Glass X ray tube,

XXQ series flaw detectors



Directional radiation portable X-ray flaw detector, Glass X ray tube, XXQ series flaw detectors



XXQ series are suitable for the material directional of thin iron plate, aluminum, rubber and so on,



may get very good picture quality and clarity.





Feature:


●Checking the software and hardware itself after start the machine



●Excellent anti-jamming performance, which can adapt for field operation without power supply,



because of the motor supports



●Can adjust exposure parameters with keys ( easy operation.)



●Has the function of Delay time opening HV. Convenient for operator keep away from dangerous



field



●Can adjust high voltage slowly for protecting X-ray generator



●Automatically controlling according to 1:1 working and rest operating way, the longest



continuous exposure period is 5 minutes.



●Including complete protecting system: over KV, low mA, over mA, over temperature and optical-



sound alarming



●Convenient for repairing and maintenance



●Much more Substance for structure designing, much more convenient for local operation



●Time can be changed for±0.3 according to the power supply net to make the exposure more



precise





Specification:





Output voltage

(Kv)

Input

(KW)

Focus spot

(mm)

Beam angle

Max penetration

(mm)

Weight (KG) Dimensions (mm)
Generator Controller Generator Controller



XXQ-1005



50-100 1.2 0.8X0.8 40° 7 8.5 11 Ф135x555 350x290x160



XXQ-1605



60-160 1.5 0.8X0.8 40° 18 18 9.4 225x225x600 350x290x160



XXQ-2005



100-200 2.0 1.5X1.5 40°+5° 29 22.5 9.4 280x280x650 350x290x160



XXQ-2505



150-250 2.5 2.0X2.0 40°+5° 39 33.5 9.4 320x320x740 350x290x160



XXQ-3005



170-300 3.0 3.5X3.5 40°+5° 50 42 18 335x335x835 350x290x160



XXQ-3205



180-320 3.2 4.0X4.0 40°+5° 53 42 18 335x335x835 350x290x160



XXQ-3505



200-350 3.5 4.0X4.0 40°+5° 60 43 18 335x335x835 350x290x160





Standard Delivery





Directional glass X-ray tube



1 Pcs



Generator



1 Set



High voltage joins cable



1 Pcs 25 Meters



Controller



1 Set



Power cable



1 Pcs 10 Meters



Grounding cable



1 Pcs 5 Meters



Accessories



1 Set



(Including: alarm lamp,1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen 5



pcs; Wire penetrameter (IQI) 1 set; fuse1 pc)







TAG: X ray flaw Detectors       Lead markers     Lead numbers
