China High Quality X ray flaw detector, Ceramic X-ray Tube, Portable X ray flaw detectors, XXG-2005

China China High Quality X ray flaw detector, Ceramic X-ray Tube, Portable X ray flaw detectors, XXG-2005 supplier
China High Quality X ray flaw detector, Ceramic X-ray Tube, Portable X ray flaw detectors, XXG-2005 supplier China High Quality X ray flaw detector, Ceramic X-ray Tube, Portable X ray flaw detectors, XXG-2005 supplier

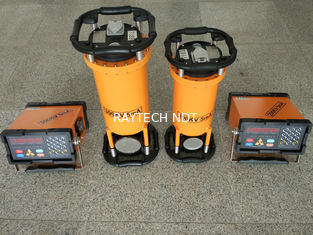

Large Image :  China High Quality X ray flaw detector, Ceramic X-ray Tube, Portable X ray flaw detectors, XXG-2005

Product Details:

Place of Origin: China
Brand Name: RAYTECH
Certification: ISO CE
Model Number: XXG Series

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Carton
Payment Terms: Western Union, T/T, L/C
Supply Ability: 500units/month
Contact Now
Detailed Product Description
Product Name: China High Quality X Ray Flaw Detector, Ceramic X-ray Tube, Portable X Ray Flaw Detectors, XXG-2005 X-ray Tube: Ceramic X-ray Tube
Output Voltage(kv): 60-300 Max Penetration (mm): 18-50
Input (KW): 1.5-3.0 Beam Angle: 40+5degree



China High Quality X ray flaw detector, Ceramic X-ray Tube,



Portable X ray flaw detectors, XXG-2005

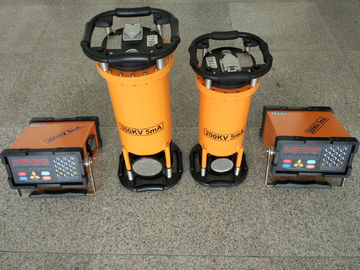

China High Quality X ray flaw detector, Ceramic X-ray Tube, Portable X ray flaw detectors, XXG-2005



XXG series are ceramic X-ray tube, both can be directional model and Panoramic, it is more



durable than the glass tube: shake proof and long working life.





Feature:


●Checking the software and hardware itself after start the machine



●Excellent anti-jamming performance, which can adapt for field operation without power supply,



because of the motor supports



●Can adjust exposure parameters with keys ( easy operation.)



●Has the function of Delay time opening HV. Convenient for operator keep away from dangerous



field



●Can adjust high voltage slowly for protecting X-ray generator



●Automatically controlling according to 1:1 working and rest operating way, the longest



continuous exposure period is 5 minutes.



●Including complete protecting system: over KV, low mA, over mA, over temperature and optical-



sound alarming



●Convenient for repairing and maintenance



●Much more Substance for structure designing, much more convenient for local operation



●Time can be changed for±0.3 according to the power supply net to make the exposure more



precise





Specification





Output voltage

(Kv)

Input

(KW)

Focus spot

(mm)

Beam angle

Max penetration

(mm)

Weight (KG) Dimensions (mm)
Generator Controller Generator Controller



XXG-1605



60-160 1.5 0.8X0.8 40°+5° 18 17 11 225x225x600 350x290x160



XXG-2005



100-200 2.0 2.0X2.0 40°+5° 29 22.5 11 280x280x650 350x290x160



XXG-2505



150-250 2.5 2.0X2.0 40°+5° 38 33.5 11 320x320x745 350x290x160



XXG-3005



170-300 3.0 2.5X2.5 40°+5° 50 42 11 335x335x835

350x290x160

Standard Delivery





Directional  X-ray tube



1 Pcs



Generator



1 Set



High voltage joins cable



1 Pcs 25 Meters



Controller



1 Set



Power cable



1 Pcs 10 Meters



Grounding cable



1 Pcs 5 Meters



Accessories



1 Set



(Including: alarm lamp,1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen 5



pcs; Wire penetrameter (IQI) 1 set; fuse1 pc)
