Product Details:

Place of Origin: China
Brand Name: RAYTECH
Certification: ISO CE
Model Number: RFD820

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: standard export package
Delivery Time: about 3~5days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Ultrasound Flaw Detector, Flaw Detector Ultrasonic, Ultrasonic Ndt Equipment, Ultrasonic Inspection Equipment Measuring Range(mm): 0 ~ 15000
Pulse Repetition Frequency: 20-3000Hz Units: Inch Or Millimeter
Sensitivity: 120 DB Max Dynamic Range: ≥38dB

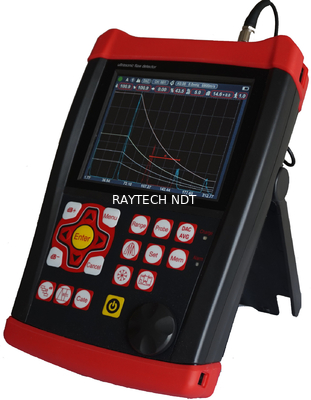

Ultrasonic testing equipment, Digital ultrasonic flaw detector, Ultrasound flaw detector RFD820

Ultrasound flaw detector, flaw detector ultrasonic,ndt ultrasonic equipment,ultrasonic inspection equipment

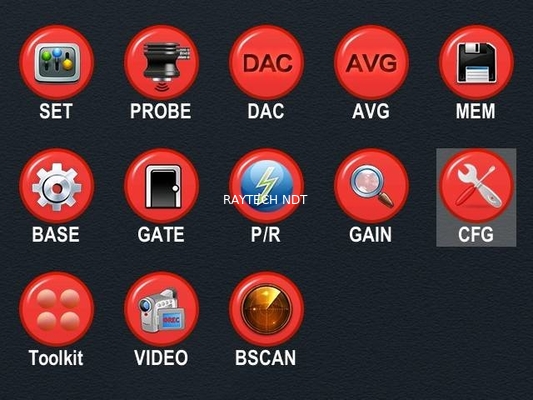

User friendly dialog interactive helps operations like Calibration, making curves, etc.

All tools you need: DAC, AVG, TCG,color Bscan, AWS, Spheroidization Rate, etc.

Pulse Repeatition Frequency: 20-3000Hz precise adjust, high speed scan, no miss out.

High Signal to noise ratio, clear and stable echo, anti-noise design, perfect for tough working conditions.

12-digit AD, high speed sampling leads to better echo diagram with all details. Sensitive and can detect even tiny flaws.

Can use probe frequency 30M perfectly .

High speed real-time flaw detection video recording. Unlimited USB data storage.

Blue tooth connection to mobile device to generate and print detection reports on-site.

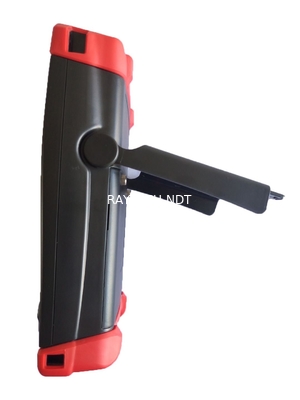

IP65 standard. Alloy + Silica gel case, water and dust proof, solid and lasts forever. Damping support makes it stands in any angle.

Battery lasts 15 hours for one charge. Each battery has own charging control so with two batteries it can work around the clock.


Specifications

Range:0-15000 mm ,at steel velocity

Material Velocity:100~20000 m/s

Pulse Repetition Frequency:20-3000Hz

Dynamic range:≥38dB

Linearity: Horizontal: +/-0.2%, Vertical: 2.5%, Amplifier Accuracy +/-1 dB.

Resolving Power:>40dB (5P14)

Sensitivity Leavings:>62dB

Reject (suppression): 0 to 80% full screen height

500 independence setup, any criterion can be input freely, we can work in the scene without test block;

Big memory of 1000 A graph

Test Modes: Pulse echo, dual element and thru-transmission

Probe Types: Single Straight, Single Angle,Daul Straight, Daul Anlge,Thrugh,Creeping,Surface

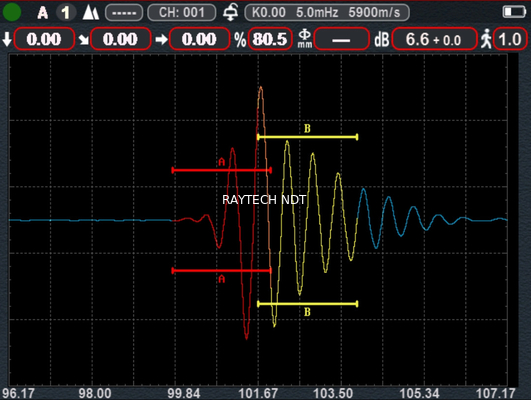

Gate Monitors: Two independent gates controllable over entire sweep range

Units: Inch or millimeter

Power Requirements: AC Mains 100-240 VAC, 50-60 Hz

Display Delay: -20 to 3400 µs

Probe Delay/Zero Offset : 0 to 99.99µs

Internal rechargeable Li-ion battery pack rated 7.2V at 8000 mAh

15 hours nominal operating time depending on display brightness

4 hours typical recharge time

H×W×D(mm):260×175×60 (mm)

Weight :1.2kg

Operating Temperature: -10℃ to 50℃

Storage Temperature: -30℃ to 50℃

Pulse Energy: 70V,100V,200V, 300V, 400V, 500V selectable

Rectification: Positive half wave, negative half wave, full wave, RF System

Bandwidth (amplifier bandpass ): 0.2 to 35 MHz

Gate Monitors: Two independent gates controllable over entire sweep range

Sensitivity: 120 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB.

       Transducer Connections: BNC or LEMO



Functions



Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,ф).

Flaw sizing: Automatic flaw sizing using AVG or DAC/TCG, speeds reporting of defect acceptance or rejection.

Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity . ( V2 and two hole )

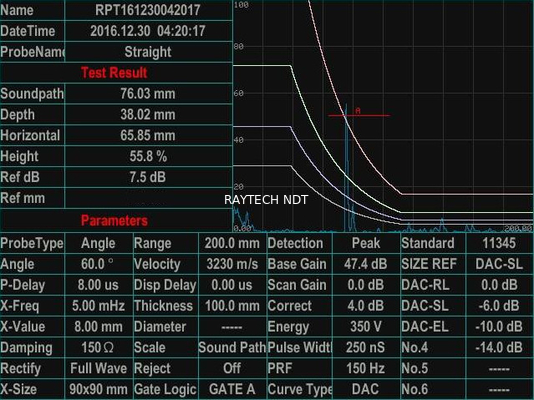

Convenient to make and use DAC/TCG and AVG to evaluate the echo, the curve can be modified and compensated.

Connectting U-Disk,the unit can get unlimited memory.

Automated make video of test process and play; use upan,the length of video is unlimited.

Color Bscan.

There are 17 standards of in the unit.

Blue tooth connection to mobile device to generate and print detection reports on-site. AWS D1.1.

Curved Surface Correction feature.

Crack Height Measure function.

Magnify gate:spreading of the gate range over the entire screen width.

Auto-gain function.

Envelope: Simultaneous display of live A-scan at 70 Hz update rate and envelope of A-scan

display.

Peak Hold: Compare frozen peak waveforms to live A-Scans to easily interpret test results.

Scan Freeze:Display freeze holds waveform and sound path data.

Spheroidization Rate test.

Alarm:Beep and LED.

Real Time Clock.

Fill echo.

Capture mark.

       Echo color within the Gate.

Standard Configuration





Name QTY
1 Main unit 1
2 power adaptor 1
3 probe connecting cable 2
4 Instrument case 1
5 Instruction manual 1
6

Straight probe
20mm 2.5MHz

1
7 Angle probe 8x9 60°4MHz 1
8 Certificate of approval 1
9 Strap 1
10 App Software 1
