Pipeline Testing Machine, X ray Pipeline Crawlers, X ray flaw detector RXPC-100D

China Pipeline Testing Machine, X ray Pipeline Crawlers, X ray flaw detector RXPC-100D supplier
Pipeline Testing Machine, X ray Pipeline Crawlers, X ray flaw detector RXPC-100D supplier Pipeline Testing Machine, X ray Pipeline Crawlers, X ray flaw detector RXPC-100D supplier

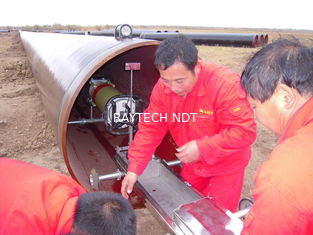

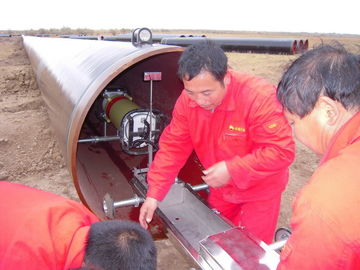

Large Image :  Pipeline Testing Machine, X ray Pipeline Crawlers, X ray flaw detector RXPC-100D

Product Details:

Place of Origin: China
Brand Name: RAYTECH
Certification: ISO CE
Model Number: RXPC-100D

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Carton
Payment Terms: Western Union, MoneyGram, T/T, L/C
Supply Ability: 100units per month
Contact Now
Detailed Product Description
Product Name: Pipeline Testing Machine, X Ray Pipeline Crawlers, X Ray Flaw Detector RXPC-100D Pipe Diameter Detecting Range: Φ219—Φ510mm
Crawler Length: 1770mm Creeping Speed: >15M/min
Creeping Distance: >5Km Exposure Time: 1s~9h Continues Adjustable
Max.Penetrate Thickness: 12mm Total Weight: 70kgs





Pipeline Testing Machine, X ray Pipeline Crawlers, X ray flaw detector



RXPC-100D



Pipeline Testing Machine, X ray Pipeline Crawlers, X ray flaw detector RXPC-100D


The X-ray pipeline crawlers include the special part that can detect the welding line of long



pipeline. The X-ray pipeline crawlers have the advantages of high radiographic quality, high



imaging sensitivity, low failure rate and high work efficiency. The X-ray pipeline crawlers have



differential driving and vibration absorbers. The chassis of the X-ray pipeline crawlers can be



moved in the pipeline steadily without off center running and overturning. The X-ray pipeline



crawlers can be moved in the pipeline with great efficiency because it is controlled by PLC with



protecting it from blocking and under voltage. The X-ray pipeline crawler is easy to be separated



into several parts and then to be put together, so it is easy to carry. You can change the exposure



parameter and make the X-ray pipeline crawler move, stop and have an exposure with the



exterior controlling source. The X-ray pipeline crawlers are easy to operate.





Specification of X Ray Pipeline Crawler





Model



Specification



RXPC-100D



Pipe diameter detecting range



Φ219—Φ510mm



Total weight



70KG



Crawler length



1770mm



Size for generator



Φ200×570



Creeping speed



>15M/min



Creeping distance



>5Km



Locating error



±5mm



Max.output voltage



150Kv



Max.outout current



3mA



Climbing ability



22°



Radiation angle



360°*40°



Focus spot



1.0×2.0mm



Battery energy



22Ah/120V



Motor power



150W



Exposure time



1s~9h continues adjustable



Delay time before exposure



24s



Humidity



90%



Max.Penetrate thickness



12mm



Operation temperature



-30°~ 70°





The crawler include below parts as standard accessories:



Main vehicle



Lead acid pile: 110V(22Ah)



X-ray machine: 150KV/3mA



Instruction source
