X-ray flaw detector, Ceramic X-ray Tube, Portable Digital X ray flaw detector, XXG Series

China X-ray flaw detector, Ceramic X-ray Tube, Portable Digital X ray flaw detector, XXG Series supplier
X-ray flaw detector, Ceramic X-ray Tube, Portable Digital X ray flaw detector, XXG Series supplier X-ray flaw detector, Ceramic X-ray Tube, Portable Digital X ray flaw detector, XXG Series supplier

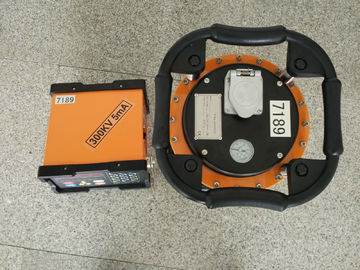

Large Image :  X-ray flaw detector, Ceramic X-ray Tube, Portable Digital X ray flaw detector, XXG Series

Product Details:

Place of Origin: China
Brand Name: Raytech
Certification: ISO CE
Model Number: XXG Series

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Carton
Payment Terms: Western Union, T/T, L/C
Supply Ability: 500units/month
Contact Now
Detailed Product Description
Product Name: X-ray Flaw Detector, Ceramic X-ray Tube, Portable Digital X Ray Flaw Detector, XXG Series X-ray Tube: Ceramic X-ray Tube
Output Voltage(kv): 60-300 Max Penetration (mm): 18-50
Input (KW): 1.5-3.0 Beam Angle: 25+5 Degree To 30+5degree



X-ray flaw detector, Ceramic X-ray Tube, Portable Digital X ray


flaw detector, XXG Series


X-ray flaw detector, Ceramic X-ray Tube, Portable Digital X ray flaw detector, XXG Series

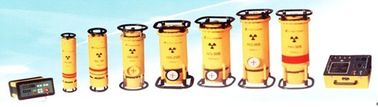

XXG series are ceramic X-ray tube, both can be directional model and Panoramic, it is more

durable than the glass tube: shake proof and long working life.



Feature:

●Checking the software and hardware itself after start the machine

●Excellent anti-jamming performance, which can adapt for field operation without power supply,

because of the motor supports

●Can adjust exposure parameters with keys ( easy operation.)

●Has the function of Delay time opening HV. Convenient for operator keep away from dangerous

field

●Can adjust high voltage slowly for protecting X-ray generator

●Automatically controlling according to 1:1 working and rest operating way, the longest

continuous exposure period is 5 minutes.

●Including complete protecting system: over KV, low mA, over mA, over temperature and optical-

sound alarming

●Convenient for repairing and maintenance

●Much more Substance for structure designing, much more convenient for local operation

●Time can be changed for±0.3 according to the power supply net to make the exposure more

precise


Specification




Output voltage
(Kv)

Input
(KW)

Focus spot
(mm)

Beam angle

Max penetration
(mm)

Weight (KG)Dimensions (mm)
Level targetCone targetLevel targetCone targetGeneratorControllerGeneratorController


XXG-2505


100-2502.51.0x2.425°+5°30°+5°3734319.4320x320x680305x338x140


XXG-3005


150-3003.01.0x2.525°+5°30°+5°4740389.4340x340x730350x310x240




Standard Delivery



Ceramic X-ray tube


1 Pcs


Generator


1 Set


High voltage joins cable


1 Pcs25 Meters


Controller


1 Set


Power cable


1 Pcs10 Meters


Grounding cable


1 Pcs5 Meters


Accessories


1 Set


(Including: alarm lamp,1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen 5

pcs; Wire penetrameter (IQI) 1 set; fuse1 pc)





TAG: Digital X ray flaw Detector
