Panoramic radiation portable X-ray flaw detector, Glass Tube, China X ray Flaw detector

China Panoramic radiation portable X-ray flaw detector, Glass Tube, China X ray Flaw detector supplier
Panoramic radiation portable X-ray flaw detector, Glass Tube, China X ray Flaw detector supplier Panoramic radiation portable X-ray flaw detector, Glass Tube, China X ray Flaw detector supplier

Large Image :  Panoramic radiation portable X-ray flaw detector, Glass Tube, China X ray Flaw detector

Product Details:

Place of Origin: China
Brand Name: Raytech
Certification: ISO CE
Model Number: XXH Series

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Carton
Payment Terms: Western Union, T/T, L/C
Supply Ability: 500units/month
Contact Now
Detailed Product Description
Product Name: Panoramic Radiation Portable X-ray Flaw Detector, Glass Tube, China X Ray Flaw Detector X-ray Tube: Panoramic Glass Tube
Output Voltage(kv): 50-350 Max Penetration (mm): 8-55
Input (KW): 1.2-3.5 Beam Angle: 25+5 Degree And 30+5degree



Panoramic radiation portable X-ray flaw detector, Glass Tube,



China X ray Flaw detector

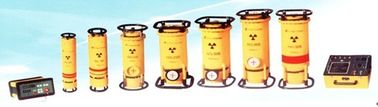

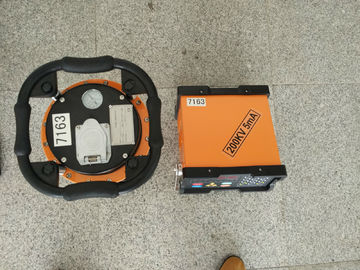

Panoramic radiation portable X-ray flaw detector, Glass Tube, China X ray Flaw detector





XXH series are suitable for the welding line detection of little pipe. Installing carrying wheel or



pipeline creeping device, convenient to set up in pipeline (controller also may enter pipeline with



generator together), once exposure complete one week welding line detection.





Feature:


●Checking the software and hardware itself after start the machine



●Excellent anti-jamming performance, which can adapt for field operation without power supply,



because of the motor supports



●Can adjust exposure parameters with keys ( easy operation.)



●Has the function of Delay time opening HV. Convenient for operator keep away from dangerous



field



●Can adjust high voltage slowly for protecting X-ray generator



●Automatically controlling according to 1:1 working and rest operating way, the longest



continuous exposure period is 5 minutes.



●Including complete protecting system: over KV, low mA, over mA, over temperature and optical-



sound alarming



●Convenient for repairing and maintenance



●Much more Substance for structure designing, much more convenient for local operation



●Time can be changed for±0.3 according to the power supply net to make the exposure more



precise





Specification:





Output voltage

(Kv)

Input

(KW)

Focus spot

(mm)

Beam angle

Max penetration

(mm)

Weight (KG) Dimensions (mm)
Level target Cone target Level target Cone target Generator Controller Generator Controller



XXH-1005



50-100 1.2 1.0x3.5 25°+5°   8   8.5 9.4 Ф135x555 305x338x140



XXH-1605



60-160 1.5 1.0x3.5 25°+5°   11   17 11 225x225x600 350x290x160



XXH-2005



100-200 2.0 1.0x3.5 25°+5° 30°+5° 27 24 22.5 11 280x280x650 350x290x160



XXH-2505



150-250 2.5 1.0x2.4 25°+5° 30°+5° 37 34 33.5 11 320x320x740 350x290x160



XXH-3005



170-300 3.0 1.0x3.5 25°+5° 30°+5° 47 40 42 11 335x335x835 350x290x160



XXH-3205



180-320 3.2 1.0X4.0 25°+5° 30°+5° 50 48 42 11 335x335x835 350x290x160



XXH-3505



200-350 3.5 1.0X4.0 25°+5° 30°+5° 55 52 42 11 335x335x835 350x290x160





Standard Delivery





Directional glass X-ray tube



1 Pcs



Generator



1 Set



High voltage joins cable



1 Pcs 25 Meters



Controller



1 Set



Power cable



1 Pcs 10 Meters



Grounding cable



1 Pcs 5 Meters



Accessories



1 Set



(Including: alarm lamp,1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen 5



pcs; Wire penetrameter (IQI) 1 set; fuse1 pc)
