Electrical Conductivity Meter, Eddy Current Conductivity Tester and meters REC-102

China Electrical Conductivity Meter, Eddy Current Conductivity Tester and meters REC-102 supplier
Electrical Conductivity Meter, Eddy Current Conductivity Tester and meters REC-102 supplier Electrical Conductivity Meter, Eddy Current Conductivity Tester and meters REC-102 supplier

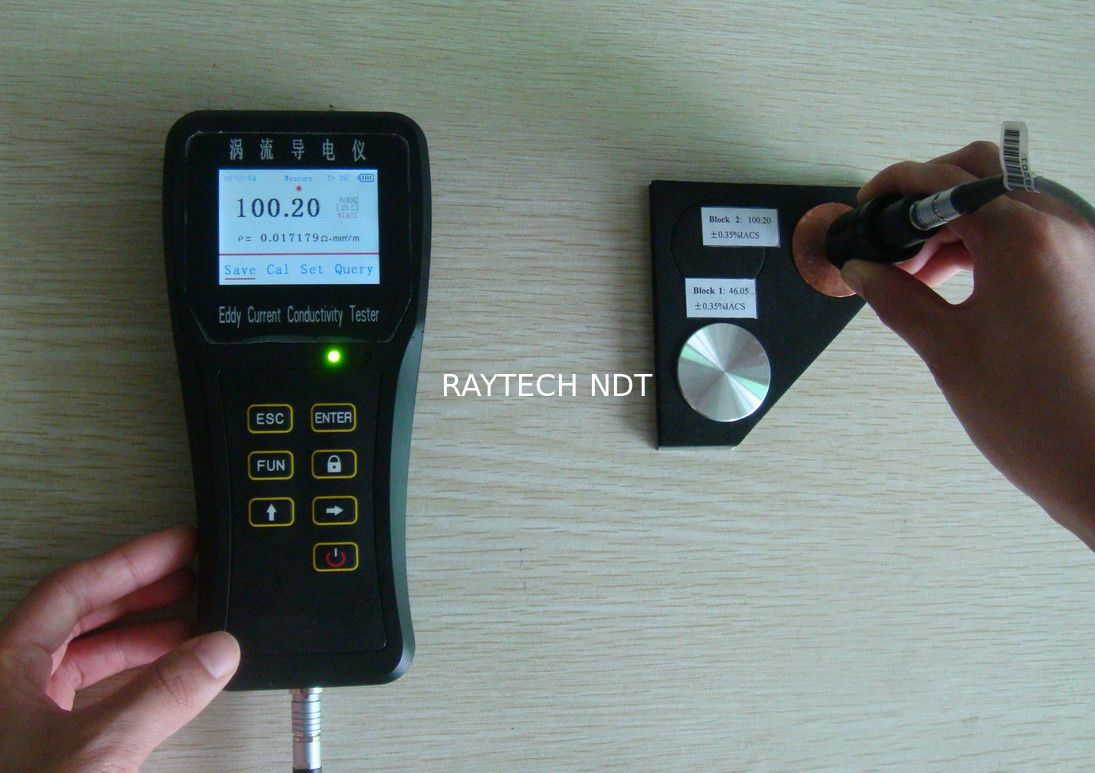

Large Image :  Electrical Conductivity Meter, Eddy Current Conductivity Tester and meters REC-102

Product Details:

Place of Origin: China
Brand Name: Raytech
Certification: ISO CE
Model Number: REC-102

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Carton
Payment Terms: Western Union, T/T, L/C
Supply Ability: 500units/month
Contact Now
Detailed Product Description
Product Name: Electrical Conductivity Meter, Eddy Current Conductivity Tester And Meters Measurement Technology: Eddy Current
Operating Frequency: 60KHz Measuring Range: 1%IACS—105%IACS(0.58 MS/m -61MS/m)
Distinguishing Rate: 0.01% IACS Probe Compensated: 0.05mm
PC Communication: USB Reading Storage: Preserve 1000 Survey Data


Electrical Conductivity Meter, Eddy current electrical

conductivity Tester and meters REC-102

Electrical Conductivity Meter, Eddy Current Conductivity Tester and meters REC-102


REC-100 series of eddy current electrical conductivity meters, which are designed for quick &

convenient measurement of material property, such as material separate,quality control,material

state check and so on. The products use the electromagnetism testing principle, can testing objects

focus on non-ferromagnetic materials.



REC-100 series products use 60 KHz (aviation industry standard) to inspirit, the testing data can be

read in two kinds of unit (%IACS and MS/m). The products can test electrical conductivity and resistivity

at the same time, and they include the intelligent temperature and lift-off compensations, thus can

guarantee the testing accuracy of each measurement. The big typeface and the back light illumination

designs are advantageous for users to take the testing data even in low light condition. The products

use the high property battery to make sure it keeps more running time, and because of their mini-size,

you could easy to carry and to grasp hold. The design of the products are more advantages, such as

users can replace the probe in the outdoor, don’t need to return the company to adjust the probe into

matching the meter.


 It can store 1000 measurement data, moreover, users can use USB connect

the meter to a PC to create testing report.


Application:

★ Absolute measurement of electrical conductivity of nearly all non-ferrous metals;(Ti – Ag)

★ In the aerospace and automotive industry,monitor the process of heat treatment, the strength and

hardness of aluminum alloy;

★Test the conductivity when the aluminum have not been oxidized;

★ Measurement the purity of non-ferrous metals;

★Test the resistivity of conductive materials;

★Analyze thermal properties of materials.



REC-102 Technical parameters



NAME


CONTENTNOTE


Measurement technology


Eddy current


Operating frequency


60KHz


Display screen


240X320 pixels TFT-LCD4 kinds of background color


L*B*H


180*80*35 mm


Instrument case


Anti-intense impact,water-proofing polyesterMatch the fixed belt the leather protective covering


Weight


245gContain battery
Power supplyHigh capacity, high performance lithium polymer battery


Not back light illuminate may keep on working about 100 hours.



Measuring range


1%IACS—105%IACS(0.58 MS/m -61MS/m)


Distinguishing rate


0.01% IACS


Probe compensated


0.05mm


Measuring accuracy



0°C to 50°C

23%IACS :±0.25%IACS

100%IACS :±0.5%IACS





Temperature compensation


0°C~50°CAutomatic compensation function
Normal work environment


Relative humidity


0~95%


Operating temperature


0℃~50℃


Language


Chinese, English


PC communication


USB
FittingPortable box; probe; probe in cable; operating manual; conductivity standard sample; adapter


Conductivity sample installs in the instrument, to verify and guarantee temperature compensation


Probe Diameter


12.7mm

(Applicable to minimum measuring area

diameter at 60KHz is13mm.)





Reading storage


Preserve 1000 survey data



Hand-held eddy current conductivity tester for NF-metals with automatic normalization of the conductivity values to 20°C through temperature sensor.
