Digital Portable Eddy Current Electrical Conductivity Meter, Eddy Current Meter REC-101

China Digital Portable Eddy Current Electrical Conductivity Meter, Eddy Current Meter REC-101 supplier
Digital Portable Eddy Current Electrical Conductivity Meter, Eddy Current Meter REC-101 supplier Digital Portable Eddy Current Electrical Conductivity Meter, Eddy Current Meter REC-101 supplier

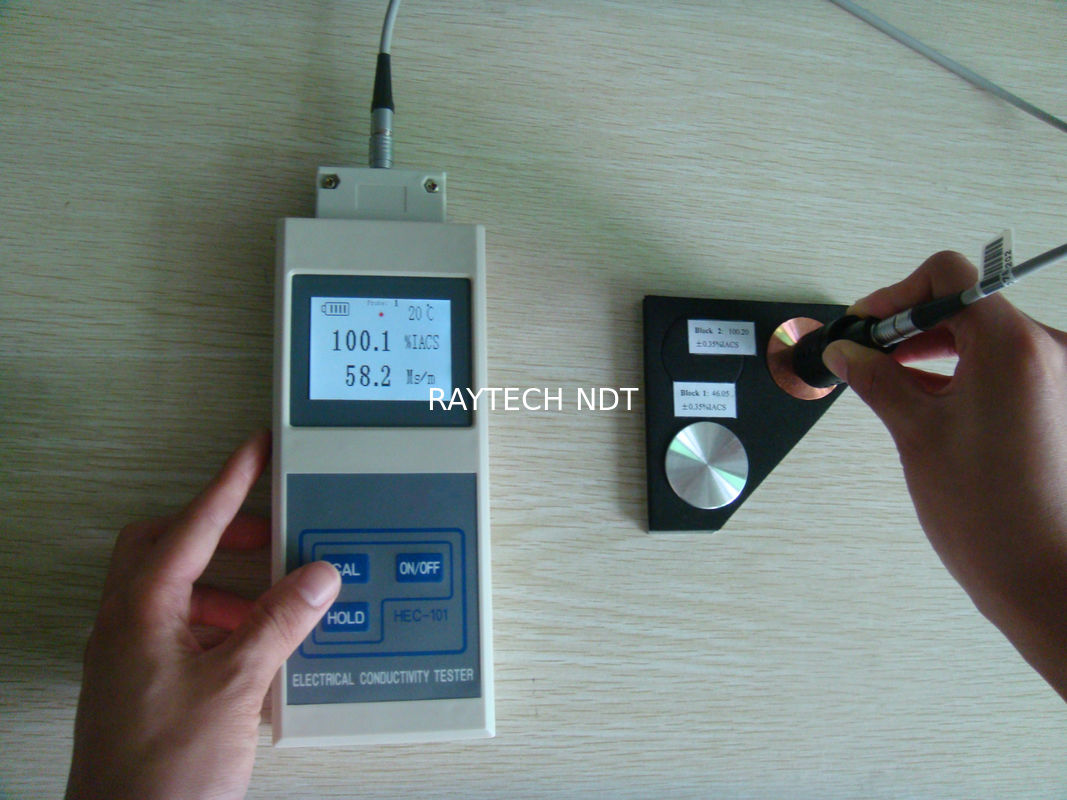

Large Image :  Digital Portable Eddy Current Electrical Conductivity Meter, Eddy Current Meter REC-101

Product Details:

Place of Origin: China
Brand Name: Raytech
Certification: ISO CE
Model Number: REC-101

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Carton
Payment Terms: Western Union, T/T, L/C
Supply Ability: 500units/month
Contact Now
Detailed Product Description
Product Name: Digital Portable Eddy Current Electrical Conductivity Meter, Eddy Current Meter REC-101 Measurement Technology: Eddy Current
Operating Frequency: 60KHz Display Screen: Monochrome
L*B*H: 180*76*35 Mm Measuring Range: 1%IACS—105%IACS(0.58 MS/m -61MS/m)
Probe Diameter: 12.7mm Weight: 300g



Digital Portable Eddy Current Electrical Conductivity Meter,



Eddy Current Meter REC-101



Digital Portable Eddy Current Electrical Conductivity Meter, Eddy Current Meter REC-101



REC-100 series of eddy current electrical conductivity meters, which are designed for quick &

convenient measurement of material property, such as material separate,quality control,material

state check and so on. The products use the electromagnetism testing principle, can testing objects

focus on non-ferromagnetic materials.



REC-100 series products use 60 KHz (aviation industry standard) to inspirit, the testing data can be

read in two kinds of unit (%IACS and MS/m). The products can test electrical conductivity and resistivity

at the same time, and they include the intelligent temperature and lift-off compensations, thus can

guarantee the testing accuracy of each measurement. The big typeface and the back light illumination

designs are advantageous for users to take the testing data even in low light condition. The products

use the high property battery to make sure it keeps more running time, and because of their mini-size,

you could easy to carry and to grasp hold. The design of the products are more advantages, such as

users can replace the probe in the outdoor, don’t need to return the company to adjust the probe into

matching the meter.


 It can store 1000 measurement data, moreover, users can use USB connect

the meter to a PC to create testing report.


Application:

★ Absolute measurement of electrical conductivity of nearly all non-ferrous metals;(Ti – Ag)

★ In the aerospace and automotive industry,monitor the process of heat treatment, the strength and

hardness of aluminum alloy;

★Test the conductivity when the aluminum have not been oxidized;

★ Measurement the purity of non-ferrous metals;

★Test the resistivity of conductive materials;

★Analyze thermal properties of materials.





REC-101 Technical parameters





NAME



CONTENT NOTE



Measurement technology



Eddy current



Operating frequency



60KHz



Display screen



Monochrome



L*B*H



180*76*35 mm
Instrument case Anti-intense impact,water-proofing polyester



Match the fixed belt the leather protective covering





Weight



300g Contain battery



Power supply



High capacity, high performance lithium polymer battery



Not back light illuminate may keep on working about 100 hours.





Measuring range



1%IACS—105%IACS(0.58 MS/m -61MS/m)



Distinguishing rate



0.1% IACS
Measuring accuracy



5°C to 40°C



23%IACS :±0.5%IACS



100%IACS :±8%IACS




Temperature compensation 5°C~40°C



Automatic compensation function



Normal work environment



Relative humidity



0~95%



Operating temperature



5℃~40℃



Language



Chinese,English
Fitting Portable box; probe; probe in cable; operating manual; conductivity standard sample; adapter



Conductivity sample installs in the instrument, to verify and guarantee temperature compensation



Probe Diameter



12.7mm



(Applicable to minimum measuring area



diameter at 60KHz is13mm.)
