Surface Roughness Tester, Surface Quality Checker, Profile Gauge SRT120A

China Surface Roughness Tester, Surface Quality Checker, Profile Gauge SRT120A supplier
Surface Roughness Tester, Surface Quality Checker, Profile Gauge SRT120A supplier Surface Roughness Tester, Surface Quality Checker, Profile Gauge SRT120A supplier

Large Image :  Surface Roughness Tester, Surface Quality Checker, Profile Gauge SRT120A

Product Details:

Place of Origin: China
Brand Name: RAYTECH
Certification: ISO CE
Model Number: SRT120A

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: standard export package
Delivery Time: about 3~5days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Surface Roughness Tester, Surface Quality Checker, Profile Gauge SRT120A Resolution: 0.001mm
Measuring Range: 0 - 6500μm Gauge Face Diameter: 42mm (1.65")
Power: 1.55V Silver Oxide Battery (SR44) Battery Life: 8 - 12 Months

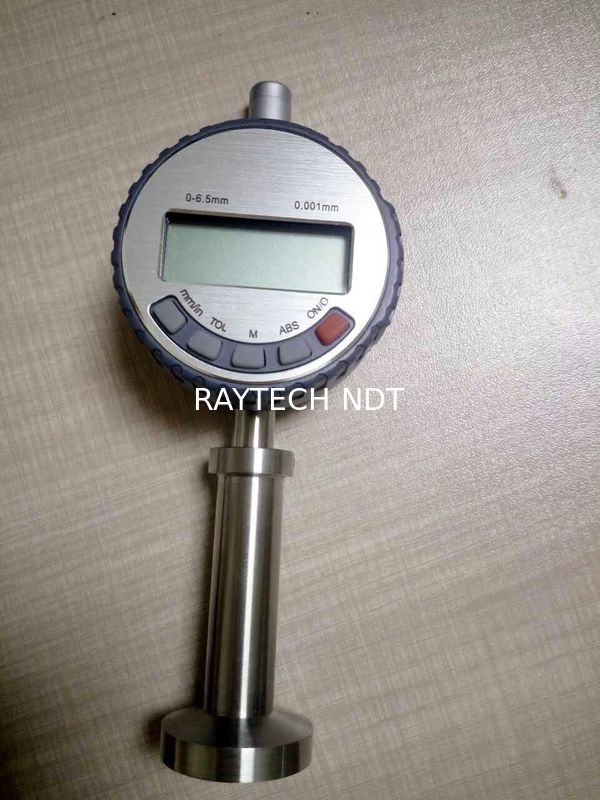

Surface Roughness Tester, Surface Quality Checker, Profile Gauge SRT120A



surface profile gauge



Specification:


       · Resolution: 0.001mm (0.00005")· Measuring Range: 0 - 6500μm m (0 - 0.25")



· Gauge face diameter: 42mm (1.65")



· Power: 1.55V silver oxide battery (SR44)



· Battery Life: 8 - 12 months



· Working Temperature: 0 to +40C (32 to 104F)



· Storage Temperature: -10 to +60C (14 to 140F)



· Relative Humidity: <80%



· Accuracy: ±2μm



· Unit: metric/imperial



Application:



· Enables quick assessment of surface condition prior to coating



· It works on grit sand shot blasted and saw cut surfaces



· The small size (42 mm diameter) of this surface profile gauge makes it easy to use and



easy to balance on the surface



· Its design permits accuracies equivalent to an electronic surface trace



· Gives maximum peak to average valley height



· Available with metric and imperial units.



· This gauge can also measure the depth of pits, cracks, craters and scratches of the outer



(and in some cases the inside) surfaces of steel structures, pipes and concrete



· According to ASTM D4417B

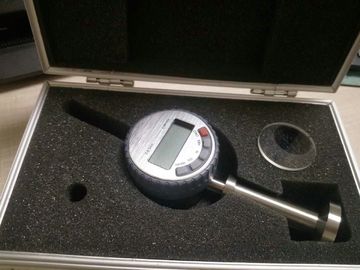

Standard delivery:



Main Unit

1

Carrying Case

1

Certificate

1

Manual

1

Calibration block

1

Spare part

1



Surface Roughness Tester, Surface Quality Checker, Profile Gauge SRT120A



TAG: Surface Roughness Tester     Surface Roughness Gauge    Surface Profile Gauge    Surface Quality Checker
