HVS-30 / HVS-30P / HVS-30Z Digital Vickers Hardness Tester, Table type NDT Hardness Testing Machine

China HVS-30 / HVS-30P / HVS-30Z Digital Vickers Hardness Tester, Table type NDT Hardness Testing Machine supplier
HVS-30 / HVS-30P / HVS-30Z Digital Vickers Hardness Tester, Table type NDT Hardness Testing Machine supplier HVS-30 / HVS-30P / HVS-30Z Digital Vickers Hardness Tester, Table type NDT Hardness Testing Machine supplier

Large Image :  HVS-30 / HVS-30P / HVS-30Z Digital Vickers Hardness Tester, Table type NDT Hardness Testing Machine

Product Details:

Place of Origin: CHINA
Brand Name: RAYTECH
Certification: ISO CE
Model Number: HVS-30 / HVS-30P / HVS-30Z

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Standard Export Carton
Delivery Time: 5~8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: HVS-30 / HVS-30P / HVS-30Z Digital Vickers Hardness Tester, Table Type NDT Hardness Testing Machine Test Force: 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf, 20kgf, 30kgf
Test Range: 1HV~2967HV Loading Method: Automatic (Loading/Dwell/Unloading)
Eyepiece: 10× Resolution: 0.25μm ,0.125μm



HVS-30 / HVS-30P / HVS-30Z Digital Vickers Hardness Tester,



Table type NDT Hardness Testing Machine





Digital Vickers Hardness Tester



Main Function:



HVS-30/HVS-30P/HVS-30Z Digital Vickers hardness tester is a high-tech and new product combining the optics, mechanic and electrics features. It adopts load cell control system, improves the precision of the test force and the repeatability and stability of the indicating value. With digital measuring eyepiece, no need for checking the table or inputting the diagonal of the indentation, it can directly shows the test force, indentation length, dwell time, test numbers, conversion scale, date and time. As long as press the eyepiece button after measuring the indentation length, it can automatically get the hardness value and shows on the screen. P Type: built-in printer,Z Type: automatic shifting of turret + built-in printer. It can be equipped with LCD video measuring device and CCD image automatic measuring system.



Application range:



Suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.



Technical Specification:



Model HVS-30 HVS-30P HVS-30Z
Test Force kgf 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf, 20kgf, 30kgf
N 4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N, 196N, 294N
Test Range 1HV~2967HV
Loading Method Automatic (Loading/Dwell/Unloading)
Shifting between Objective and Indenter Manual Shifting Manual Shifting Automatic Shifting
Data Output None Built-in Printer,RS232 Interface
Objective 10× , 20×
Eyepiece 10×
Total Magnification 100× , 200×
Resolution 0.25μm ,0.125μm
Dwell Time 0~60s
Light Source Halogen Lamp
Max. Height of Specimen 170mm
Throat 130mm
Power Supply AC220V,50Hz
Execute Standard ISO 6507,ASTM E92,JIS Z2244,GB/T 4340.2
Dimension 530×280×630mm,Packing Dimension:620×450×740mm
Weight Net Weight: 35kg,Gross Weight: 47kg


Packing List:



Name Qty Name Qty
Instrument Main Body 1 set 10×Digital Measuring Eyepiece 1 pc
Diamond Vickers Indenter 1 pc 10×,20×Objective each 1 pc
Big Plane Test Table 1 pc V-shaped Test Table 1 pc
Power Cable 1 pc Level 1 pc
Horizontal Regulating Screw 4 pcs Halogen Lamp12V,15~20W 1 pc
Fuse1A 2 pcs Screw Driver 1 pc

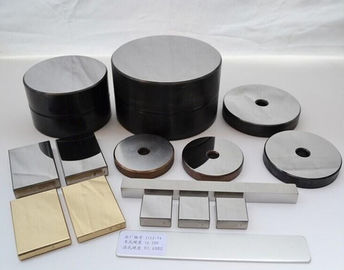

Inner Hexagon Spanner 2.5mm 1 pc Hardness Block 400~500 HV5 1 pc
Hardness Block 700~800 HV30 1 pc Anti-dust Cover 1 pc
Usage Instruction Manual 1 copy
