HV-5 / HV-5Z Digital Vickers Hardness Tester, Metal Hardness Testing Machine

Certification
Good quality X Ray Flaw Detector for sales
Good quality X Ray Flaw Detector for sales
Easy to talk with, very professional and fast service, the quality is super good.

—— Ali Sharif

I'm Online Chat Now

HV-5 / HV-5Z Digital Vickers Hardness Tester, Metal Hardness Testing Machine

China HV-5 / HV-5Z Digital Vickers Hardness Tester, Metal Hardness Testing Machine supplier
HV-5 / HV-5Z Digital Vickers Hardness Tester, Metal Hardness Testing Machine supplier HV-5 / HV-5Z Digital Vickers Hardness Tester, Metal Hardness Testing Machine supplier

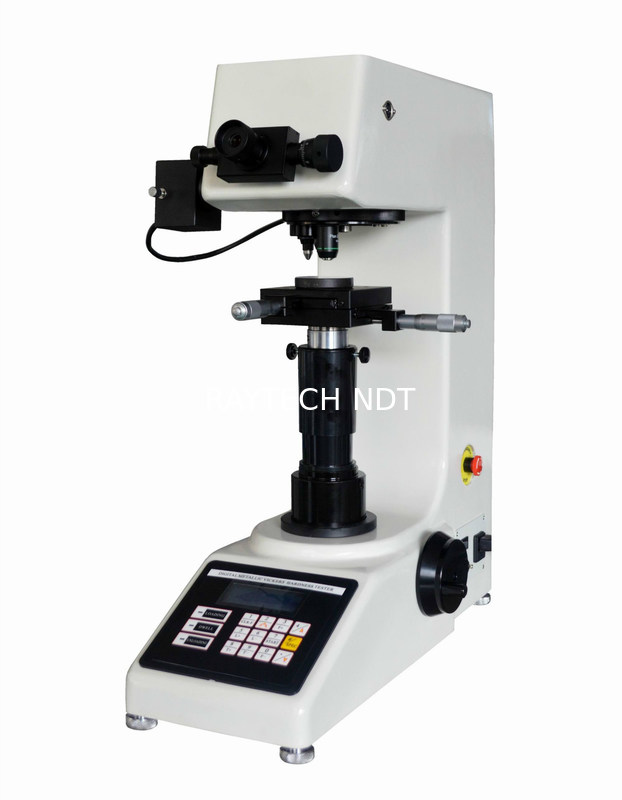

Large Image :  HV-5 / HV-5Z Digital Vickers Hardness Tester, Metal Hardness Testing Machine

Product Details:

Place of Origin: CHINA
Brand Name: RAYTECH
Certification: ISO CE
Model Number: HV-5 / HV-5Z

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Standard Export Carton
Delivery Time: 5~8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: HV-5 / HV-5Z Digital Vickers Hardness Tester, Metal Hardness Testing Machine Test Force: 0.3kgf, 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf
Test Range: 1HV~2967HV Loading Method: Automatic (Loading/Dwell/Unloading)
Eyepiece: 10× Reading Microscope Resolution: 0.25μm



HV-5 / HV-5Z Digital Vickers Hardness Tester,



Metal Hardness Testing Machine

HV-5 / HV-5Z Digital Vickers Hardness Tester, Metal Hardness Testing Machine





Main Function:



HV-5 / HV-5Z Vickers hardness tester is a high-tech and new product combining the optics, mechanic and electrics features. It adopts load cell control system, improves the precision of the test force and the repeatability and stability of the indicating value. It can shows the test force, dwell time, test numbers on the screen, only need to input the diagonal of the indentation when operation, it can automatically get the hardness value and shows on the screen. It can be equipped with CCD image automatic measuring system.



Application range:



Suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.



Technical Specification:



Model HV-5 HV-5Z
Test Force kgf 0.3kgf, 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf
N 2.94N, 4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N
Test Range 1HV~2967HV
Loading Method Automatic (Loading/Dwell/Unloading)
Shifting between Objective and Indenter Manual Shifting Automatic Shifting
Objective 20× (Observe),40× (Measure)
Eyepiece 10× Reading Microscope
Total Magnification 200× , 400×
Resolution 0.25μm
Dwell Time 0~60s
Light Source Halogen Lamp
X-Y Test Table Size: 100×100mm; Travel: 25×25mm; Resolution: 0.01mm
Max. Height of Specimen 170mm
Throat 130mm
Power Supply AC220V,50Hz
Execute Standard ISO 6507,ASTM E92,JIS Z2244,GB/T 4340.2
Dimension 530×280×630mm,Packing Dimension: 620×450×740mm
Weight Net Weight: 35kg,Gross Weight: 47kg


Packing List:



Name Qty Name Qty
Instrument Main Body 1 set 10× Reading Microscope 1 pc
Diamond Vickers Indenter 1 pc 20×,40× Objective each 1 pc
Cross Test Table 1 pc Power Cable 1 pc
Horizontal Regulating Screw 4 pcs Level 1 pc
Fuse 1A 2 pcs Halogen Lamp 12V,15~20W 1 pc
Inner Hexagon Spanner 2.5mm 1 pc Screw Driver 1 pc

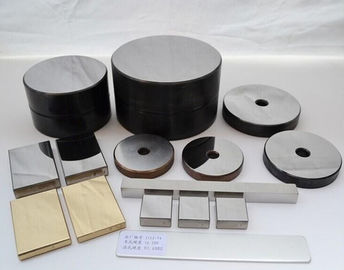

Hardness Block 700~800 HV1 1 pc Hardness Block 400~500 HV5 1 pc
Anti-dust Cover 1 pc Usage Instruction Manual 1 copy
