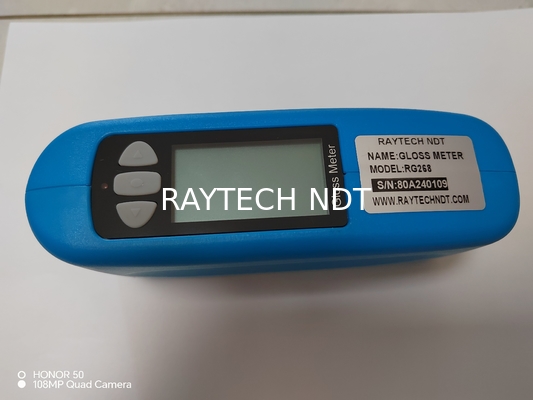

RG268 Micro tri gloss meter digital paint gloss meter for granite 20degree 60 degree 85 degree

Feature of RG268 Micro tri gloss meter digital paint gloss meter for granite 20degree 60 degree 85 degree

RG268 gloss meter is produced according to the national verification regulation of JJG696 standard,

adopt long life light source, good repeatability, small volume, high precision and good stability. It is mainly

used coatings, printing ink, paint, paint, wood, marble,   granite, bo to change polishing brick, brick of

pottery and porcelain, plastic, paper, metal and non-metallic materials to the surface of the mirror gloss

measurement.

Function of RG268 Micro tri gloss meter digital paint gloss meter for granite 20degree 60 degree 85 degree

(1) One button to complete triangle measurement: one operation can complete three angle measurement;

Measuring light incident angle meet ISO 2813 three measuring light incident angle. Three incidenct angle

of mirror gloss meter is 20 °, 60 °, 85 ° respectively;

(2) Optional angle mode: choose measuring angle or angle combination according to user needs.

(3) Manually entering standard samples gloss data;

(4) Humanized design, good man-machine communication interface;

(5)Three angle can store 50000 testing records, storage structure is: 100 prototypes, each prototype with

500 testing data;

(6) Data browsing and viewing function;

(7) The machine has automatic shutdown function, low power warning functions, full data storage hint

functions;

(8) USB communication interface to communicate with PC;

(9) PC software can be extended more functions.

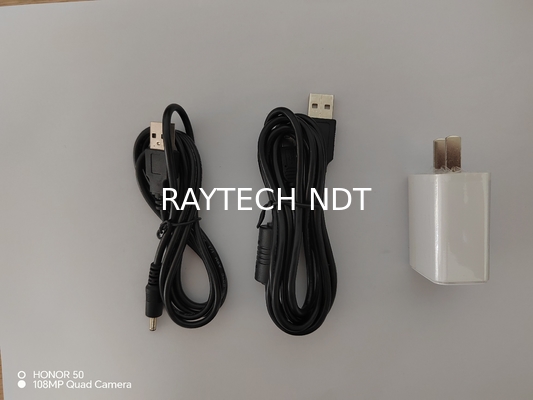

Attachment description of RG268 Micro tri gloss meter digital paint gloss meter for granite 20degree 60 degree 85 degree

(1) Power adapter: standard + 5V, 2A external power supply;

(2) Standard board: provide calibration criterion.

(3) USB cable: connect instrument to PC.

specification of RG268 Micro tri gloss meter digital paint gloss meter for granite 20degree 60 degree 85 degree :
