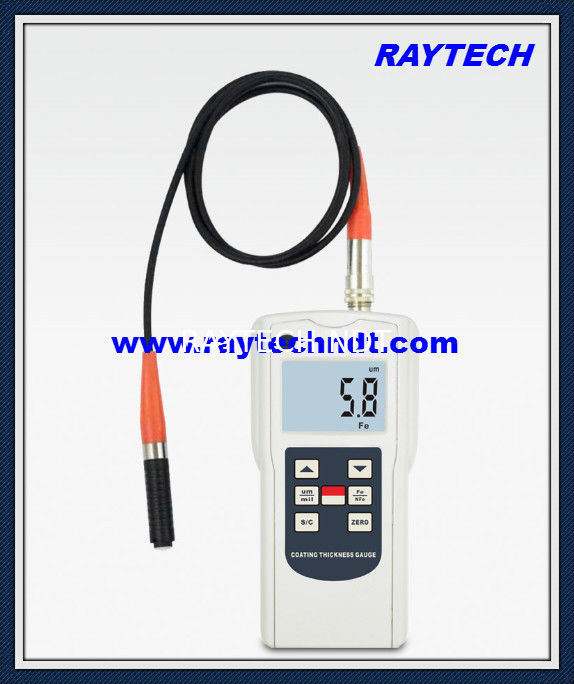

Digital Portable Micro Coating Thickness Gauge, Galvanized Thickness Gage, Elcometer TG-8680F

China Digital Portable Micro Coating Thickness Gauge, Galvanized Thickness Gage, Elcometer TG-8680F supplier
Digital Portable Micro Coating Thickness Gauge, Galvanized Thickness Gage, Elcometer TG-8680F supplier Digital Portable Micro Coating Thickness Gauge, Galvanized Thickness Gage, Elcometer TG-8680F supplier

Large Image :  Digital Portable Micro Coating Thickness Gauge, Galvanized Thickness Gage, Elcometer TG-8680F

Product Details:

Place of Origin: China
Brand Name: RAYTECH
Certification: ISO CE
Model Number: TG-8680F

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: standard export package
Delivery Time: about 3~5days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Digital Portable Micro Coating Thickness Gauge, Galvanized Thickness Gage, Elcometer TG-8680F Probe Type: Separate Probe
Measure Range: 0~200um Power Supply: 4 * AA Batteries
Minimum Measurement Area: 2mm Size: 140x70x30mm





Digital Portable Micro Coating Thickness Gauge,



Galvanized Thickness Gage, Elcometer TG-8680F



Digital Portable Micro Coating Thickness Gauge, Galvanized Thickness Gage, Elcometer TG-8680F







Product Description



Micro Coating Thickness Gauge have two types: F Type, NF Type; Suitable for automotive, paint



layer coating thickness measurement. Specially for the thickness measurement of coating on



small workpiece. It is a kind of portable



measuring instrument, it can quickly, no damage and precise coating, coating thickness



measurement; Not only can be used in the laboratory, also can be used in the engineering field;



Through the use of different measuring head, but also can meet the needs of a variety of



measurement; Widely used in manufacturing, metal processing industry, chemical industry,



commodity inspection and testing field; Is the material protection professional. Necessary



instruments.



Product Parameters



Measuring Range



0~200 um





0~8mil



Resolution



0.1 um / 0.1mil



Accuracy:



1~3%n or 2.5 um or 0.1mil (Whichever is the greater)



Minimum Measurement Area



2 mm



Minimal Surface



F Type convex 2 mm / concave 4 mm



Operating Condition



Temp: 0~50°C





Humidity: <95%



Size



140x70x30 mm



Power Supply



4x1.5vAAA Um-4 Battery



Weight



130 g (Not including batteries)







Application:



This model includes one function, F .



1. F function can measure the thickness of non-magnetic coating layers (aluminum, chrome,



copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless



steel)





Product Accessories









Standard Accessories



Main Unit





Calibration Foils





Substrate ( Iron )





Sensor





Carrying Case





Operation Manual



Optional Accessories



USB data output





Bluetooth data output







Digital Portable Micro Coating Thickness Gauge, Galvanized Thickness Gage, Elcometer TG-8680F
