Wall Ultrasonic Thickness gauge, UT thickness tester, NDT thickness gage RTG-100

China Wall Ultrasonic Thickness gauge, UT thickness tester, NDT thickness gage RTG-100 supplier
Wall Ultrasonic Thickness gauge, UT thickness tester, NDT thickness gage RTG-100 supplier Wall Ultrasonic Thickness gauge, UT thickness tester, NDT thickness gage RTG-100 supplier

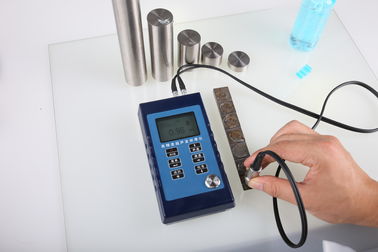

Large Image :  Wall Ultrasonic Thickness gauge, UT thickness tester, NDT thickness gage RTG-100

Product Details:

Place of Origin: China
Brand Name: RAYTECH
Certification: ISO CE
Model Number: RTG-100

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: standard export package
Delivery Time: about 3~5days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Wall Ultrasonic Thickness Gauge, UT Thickness Tester, NDT Thickness Gage RTG-100 Measurement Range: 1.2~200mm
Display Resolution: 0.1mm Material Velocity: 1000 ~ 9000m / S
Display Unit: Millimeters And Inches Size: 140x70x30 Mm





Wall Ultrasonic Thickness gauge, UT thickness tester,



NDT thickness gage RTG-100



ultrasonic thickness gauge

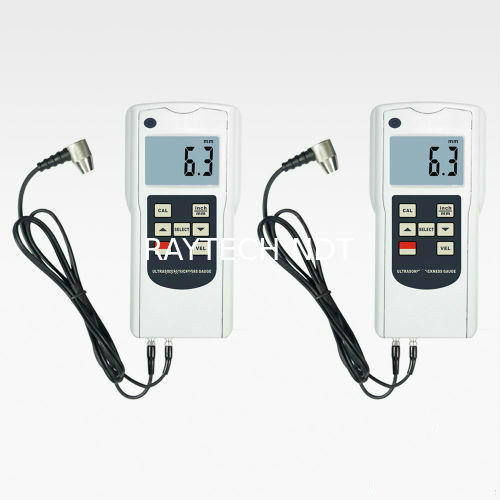

Wall Ultrasonic Thickness gauge, UT thickness tester, NDT thickness gage RTG-100

Wall Ultrasonic Thickness gauge, UT thickness tester, NDT thickness gage RTG-100

Wall Ultrasonic Thickness gauge, UT thickness tester, NDT thickness gage RTG-100



Product Description



The Ultrasonic Thickness Gauge series include two model; Using the latest high performance



and low power consumption micro processing technology, applicable to measure the thickness of



metal and other materials base on the ultrasonic operating principle.



Product Feature



* Coupling state prompt functions.



* Automatic shutdown and manual shutdown function.



* Automatic memory material code and sound velocity value, convenient use.



* Use USB data output with connection PC



* Provide Bluetooth data output choice.



Product Parameters



Resolution



RTG-100: 0.1 mm





RTG-200: 0.01 mm



Range



RTG-100: 1.2~200mm (45# steel )





RTG-200: 1.2~300mm (45# steel )



Accuracy



±(0.5%n+0.1)



Sound velocity



1000~9000m/s



Operating condition



Temp. 0~50





Humidity: <80%)



Display unit



millimeters and inches



Size



140x70x30 mm



Power Supply



4x1.5vAAA (UM-4)Battery



Weight



130 g (Not including batteries)







Product Accessories







Standard Accessories



Main Unit





5MФ8 Standard Sensor





Coupling Agent





Carrying Case





Operation Manual



Optional Accessories



USB data output





Bluetooth data output







Sensor Technical Parameters:



Probe

Model

Characteristics

Measuring

Range ( mm )

Diameter Frequency Operating Temperature
5MHz Φ8

Standard Configure Probe

( UTG-ST )

1.5 ~ 200 ( Steel ) Φ 8 mm 5M Hz

Normal Temperature

( 0 ~ 50 °C )

Measurement of

Round Pipe

( Outwall )

UTG-TP

R60 1.5 ~ 200 ( Steel ) Φ 8 mm 5M Hz

Normal Temperature

( 0 ~ 50 °C )

R40 1.5 ~ 200 ( Steel ) Φ 8 mm 5M Hz

Normal Temperature

( 0 ~ 50 °C )

R50 1.5 ~ 200 ( Steel ) Φ 8 mm 5M Hz

Normal Temperature

( 0 ~ 50 °C )

R60 1.5 ~ 200 ( Steel ) Φ 8 mm 5M Hz

Normal Temperature

( 0 ~ 50 °C )

R70 1.5 ~ 200 ( Steel ) Φ 8 mm 5M Hz

Normal Temperature

( 0 ~ 50 °C )

5MHz Φ6

Measurement of Workpiece

in Small Diameter

1.2 ~ 100 ( Steel ) Φ 8 mm 5M Hz

Normal Temperature

( 0 ~ 50 °C )

5MHz Φ12

High Temperature

Measurement ( UTG-HT )

3.0 ~ 200 ( Steel ) Φ 6 mm 5M Hz

Normal Temperature

( 0 ~ 50 °C )

2MHz Φ10 Measurement Plastic 1.0 ~ 50 Φ 12 mm 5M Hz

High Temperature

( 60 ~ 300 °C )

Cast Iron 1.5 ~ 40 Φ 10 mm 2M Hz

Normal Temperature

( 0 ~ 50 °C )







TAG: Ultrasonic Thickness Gauge      Wall Thickness Gauge



          NDT Thickness Gage
