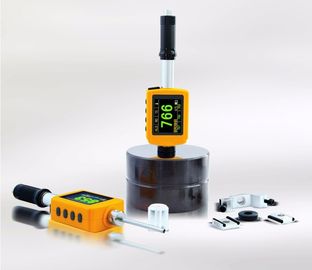

Pen Type Portable Hardness Tester, Leeb Hardness Meter with printer, Impact Device D DL RH-100

China Pen Type Portable Hardness Tester, Leeb Hardness Meter with printer, Impact Device D DL RH-100 supplier

Large Image :  Pen Type Portable Hardness Tester, Leeb Hardness Meter with printer, Impact Device D DL RH-100

Product Details:

Place of Origin: China
Brand Name: Raytech
Certification: ISO CE
Model Number: RH-100

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: standard export package
Delivery Time: about 3~5days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500units per month
Detailed Product Description
Product Name: Pen Type Portable Hardness Tester, Leeb Hardness Meter With Printer, Impact Device D DL RH-100 Display: 1.77 Inch OLED With Resolution 160x128 Pixels
Impact Device: D Type Converts To All Common Hardness Scales: HL, HB, HRB, HRC, HV, HS. σb.
Storage: Max 1000 Groups Power: AAA Lithum Battery





Pen Type Portable Hardness Tester, Leeb Hardness Meter



with printer, Impact Device D DL RH-100



Pen type hardness tester



Features:



1. Pen type, no cable, impact device and screen are integrated.



2. Color OLED, 1.77in large screen.



3. The battery can be replaced by use. Using standard AAA Lithum battery.



4. Bluetooth wireless printing.



5. Hardness scale include HL, HB, HRB, HRC, HV, HS. σb.



6. Interchangeable D/DL impact device can be used in the restricted area



measurement.



7. Highly accuracy in any impact direction (360°), automatically identify impact



direction and gravity compensation.



8. Easy Operation, the four soft keys above the screen achieve the various



functions





Instrument Specifications



Display Type



1.77 inch OLED with resolution 160x128 pixels



Hardness Scale



HL, HB, HRB, HRC, HV, HS. σb.



Measuring Range



HLD (200-960) HRC(19.8-68.5) HB(30-651) HV(80-976) HS(26.4-99.5) HRB(13.5-100).σb.(375-2639)



Impact Device



D type impact device (Standard); Optional DL type impact device(Only RH100A)



Accuracy



+/-6HLD (HLD=800), Repeatability ﹤6HLD (HLD=800)

Measuring direction



360 degree by manual setting



Material



Steel& Cast Steel, Stainless Steel, GC IRON, NC IRON, Cast Aluminum alloy, Macht metal,

Copper-tin alloy, Brass, Forged Steel



Resolution



1HL, 1HV, 1HB, 0.1HRB, 0.1HRC, 0.1HS



Calibration



Automatic



Language



English, Chinese



Memory:



1000 groups ,each group include 6 testing result and 1 average value( Only RH100A)



Communication



USB port, used for recharging and data transmission (Only RH100A)



Software



LmVIEW Software for transmission, storage, and printing (Only RH100A)



Power



AAA Polymer lithium battery ,Capacity of 600 MA/H,voltage:3.7 V, warning under low voltage



Instrument Shut-off



AUTO OFF after 3 minutes of inactivity



Temperature



-10℃~ +50℃



Net Weight



110g with D type impact device,125g with DL type impact device



Size



150mm*46mm*23mm



Standard



GB/T 17394-1998, ASTM A956





Standard delivery:



Main unit(With D type impact device)



HLD value Standard Calibration Block



DataView software



USB Communication cable



Small supporting ring



Cleaning brush



Recharger



User`s manual



Suitcase



Optional accessories:



Impact device DL



Standard calibration test block



Standard supporting ring



Special supporting rings



Small supporting ring
