Ceramic Glass Ultrasonic Thickness Gauge, Plastic Thickness Meter, Metal Wall Thickness Tester

China Ceramic Glass Ultrasonic Thickness Gauge, Plastic Thickness Meter, Metal Wall Thickness Tester supplier

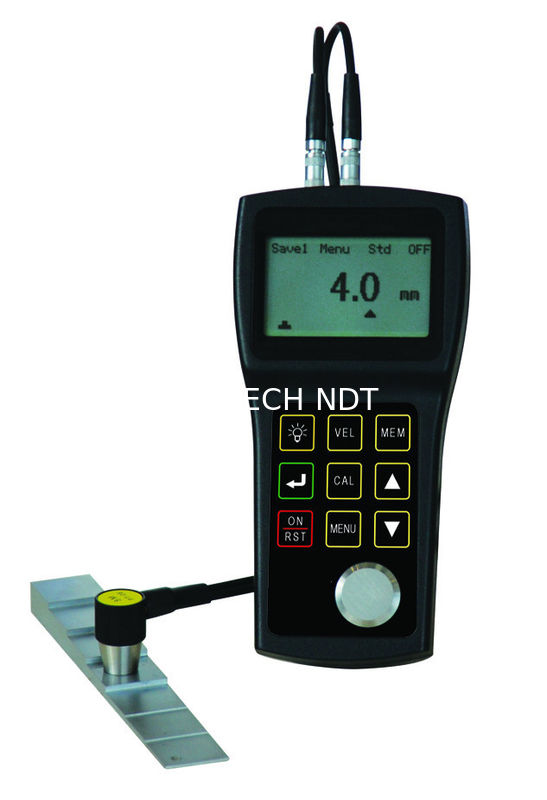

Large Image :  Ceramic Glass Ultrasonic Thickness Gauge, Plastic Thickness Meter, Metal Wall Thickness Tester

Product Details:

Place of Origin: China
Brand Name: Raytech
Certification: ISO CE
Model Number: RTG-500

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: standard export package
Delivery Time: about 3~5days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500units per month
Detailed Product Description
Product Name: Ceramic Glass Ultrasonic Thickness Gauge, Plastic Thickness Meter, Metal Wall Thickness Tester MEASURMENT RANGE STANDARD: 0.8 Mm TO 300 Mm
THROUGH COATING: 2.5 Mm – 18 Mm DISPLAY RESOLUTION: 0.1MM
BULIT-IN STANDARD BLOCK: 4MM VELOCITY RANGE: 1000-9999 M/s







Ceramic Glass Ultrasonic Thickness Gauge, Plastic Thickness



Meter, Metal Wall Thickness Tester



Ultrasonic Thickness Gauge







TECHNICAL DATA





DISPLAY



128X64 PIXEL LCD WITH BACK LIGHT
MEASURMENT RANGE STANDARD



0.8 mm TO 300 mm IN STEEL DEPENDING OF THE PROBE

special request can reach measuring range up to 500mm





THROUGH COATING



2.5 mm – 18 mm ( DEPNDING OF THE PROBES )



TOLERANCE



+/-0.05 mm IN STEEL



DISPLAY RESOLUTION





0.1mm



BULIT-IN STANDARD BLOCK



4.00 mm



VELOCITY RANGE



1000-9999 m/s



POWER



2 EA. 1.2 V AAA BATTERY



OUTSIDE DIMENSION



149X73X32 mm



WEIGHT



160 g







FEATURES:



- AUTOMATIC SELF CALIBRATION



- COUPLANT INDICATOR



- AUTOMATIC POWER OFF DEVICE IN 5 MINUTES AND MANUAL POWER OFF FUNCTION



- HIGH-LOW LIMIT ALARM



- LCD BRIGHTNESS ADJUST



- THROUGH COATING CAPABILTY



- LOW BATTERY INDICTOR





STANDARD PACKAGE:



  • RTG500 MAIN UNIT WITH THOUGH COATING MODE
  •
  • HARD CARRING CASE
  •
  • COUPLANT BOTTLE
  •
  • STANDARD 8 mm, 5 MHz PROBE WITH CABLE ( THROUGH COATING DEVICE)
  •
  • Operation manual
  •
  • Calibration report
  •
  • Packing list



OPTIONAL ACCESSORIES:



  • 4 STEP STEEL TEST BLOCK
  •
  • 7 STEP METRICS STEEL TEST BLOCK
  •
  • 5 MHz, 4 mm CONTACT PROBE
  •
  • 10 MHz, 4 mm, CONTACT PROBE
  •
  • 5 MHz HIGH TEMPERATURE PROBE
  •
  • PROBE CABLES





THICKNESS PROBE EHCO-ECHO RTG500/RTG510



Photo Model Frequency MHz Probe dia. Testing range Min. Pipe dia. Features
  PT-06 7.5 6 0.8mm~30mm (steel) Ф20mm

For thin pipe wall or

small curvature pipe wall measurement

  PT-04 10 4 0.8mm~20mm (steel) Ф20mm

For thin pipe wall or

small curvature pipe wall measurement

  PT-08 5 8 0.8mm~100mm (steel) Ф20mm Normal measurement
  ZT-12 2 12 4.0mm~300mm (steel) Ф30mm

For thick highly attenuating

or highly scattering materials

  PT-12 5 10 1.0mm~200mm (steel) Ф20mm Normal measurement
  GT-12 5 10 4.0mm~80mm (steel) Ф20mm

For high temperature

(Lower then 400℃) measurement







TAG: Ultrasonic through coating thickness tester meter
