Paint Inspection Meter, Paint Thickness Tester, Galvanizing Coating Thickness Gauge Measure OTG-810NF

China Paint Inspection Meter, Paint Thickness Tester, Galvanizing Coating Thickness Gauge Measure OTG-810NF supplier
Paint Inspection Meter, Paint Thickness Tester, Galvanizing Coating Thickness Gauge Measure OTG-810NF supplier Paint Inspection Meter, Paint Thickness Tester, Galvanizing Coating Thickness Gauge Measure OTG-810NF supplier

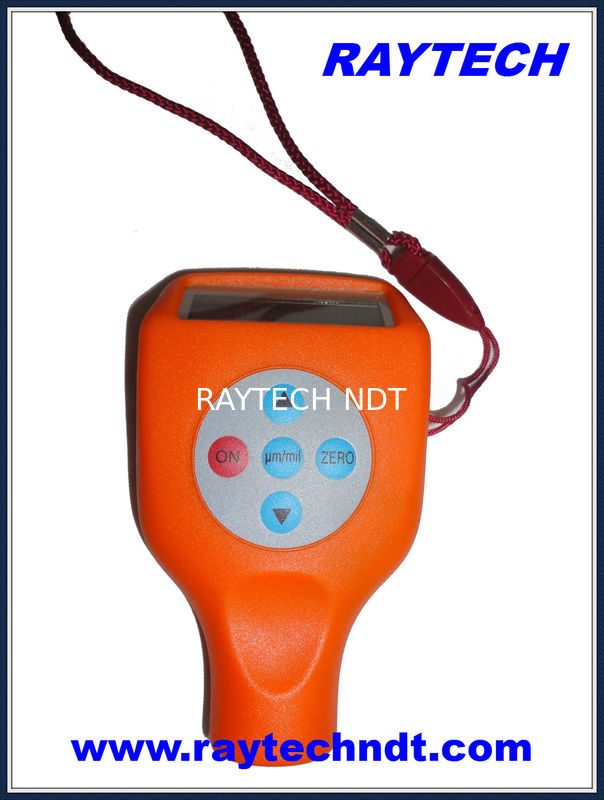

Large Image :  Paint Inspection Meter, Paint Thickness Tester, Galvanizing Coating Thickness Gauge Measure OTG-810NF

Product Details:

Place of Origin: China
Brand Name: RAYTECH
Certification: ISO CE
Model Number: OTG-810NF

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: standard export package
Delivery Time: about 3~5days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Aint Inspection Meter, Paint Thickness Tester, Galvanizing Coating Thickness Gauge Measure OTG-810NF Probe Type: Inbuild Probe
Measure Range: 0~1250um Power Supply: 2 * AA Batteries
Minimum Substrate: 10 * 10mm Size: 102mm * 66mm * 24mm







Paint Inspection Meter, Paint Thickness Tester, Galvanizing



Coating Thickness Gauge Measure OTG-810NF







Paint Inspection Meter, Paint Thickness Tester, Galvanizing Coating Thickness Gauge Measure OTG-810NF







This device is a portable meter. It is capable of measuring coating thickness quickly,



precisely and without injury, both for the laboratory and engineering environment. It



is currently widely used in manufacturing, metal processing industry, chemical



industry, commodity inspection and testing fields; and is essential for material



protection major.





Features



  Thickness measurement using Eddy Current Method to measure the non-



conductive coating on a non-magnetic metal substrate.



  Single-point or two-point method could be used to correct probe system deviation,



in order to ensure the accuracy of the device in the process of measuring.



  Power voltage indicator.



  Speaker beep while operating.



  Power-off automatically when idle; manually power-off available.



  Negative display function to ensure the accuracy of zero point calibration.



  Ultra-low power consumption, less than 10 μA in standby mode.





Technical Data



  Measuring range: 0-1250 μm



  Power supply: 2 * AA batteries



  Measurement deviation: zero calibration ± (1 + 3% H); two-point calibration ± [(1%



~ 3% H)] H + 1.5



  Ambient temperature: 0-40 ℃



  Relative humidity: ≤85%



  Minimum substrate: 10 * 10mm



  Minimum curvature: 5mm convex; 5mm concave



  Thinnest substrate: 0.4mm



  Weight: 99g (with battery)



  Size: 102mm * 66mm * 24mm





Item Checklist



Name

Quantity

Meter device

1

Standard films

5

Base substrate

1

Packing box

1

User Manual

1

























Services



This instrument has one-year quality guarantee, maintenance for all life. If there are



any problems of this product, please contact the dealer in time.



Paint Inspection Meter, Paint Thickness Tester, Galvanizing Coating Thickness Gauge Measure OTG-810NF





TAG: Powder Coating  Thickness Tester     Coating Thickness Gauge



         Dry Film Thickness Gauge
