Ultrasonic Calibration Blocks, Clibration Block for flaw detector, thickness gauge test block

China Ultrasonic Calibration Blocks, Clibration Block for flaw detector, thickness gauge test block supplier
Ultrasonic Calibration Blocks, Clibration Block for flaw detector, thickness gauge test block supplier Ultrasonic Calibration Blocks, Clibration Block for flaw detector, thickness gauge test block supplier Ultrasonic Calibration Blocks, Clibration Block for flaw detector, thickness gauge test block supplier

Large Image :  Ultrasonic Calibration Blocks, Clibration Block for flaw detector, thickness gauge test block

Product Details:

Place of Origin: China
Brand Name: Raytech
Certification: ISO CE
Model Number: V1 V2 step block etc

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Package
Payment Terms: Western Union, T/T, L/C
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Calibration Blocks, Clibration Block For Flaw Detector, Thickness Gauge Test Block Material: Carbon Steel, Stainless Steel, Alloy
Type: Standard Type Or Produce According To Customer Use For: UT Flaw Detector, UT Thicknes Gauge, Eddy Current Meter Calibration And Test

Ultrasonic Calibration Blocks, Clibration Block for flaw detector, thickness gauge test block



Order Code Shape
(Not to Scale)
Type Description
/Application
Standard Made To Material Size

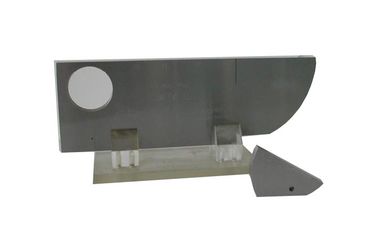

V1 Ultrasonic Calibration Blocks, Clibration Block for flaw detector, thickness gauge test block A2
(BS)

I.I.W Calibration Standard. Calibration of Shear and compression wave probes. Checking beam angle, emergent point and resolution. Calibration of time base and gain settings.

B.S. 2704
DIN 54120
IIW (International Institute of Welding)

Steel

25x100x300mm

V1/50 Ultrasonic Calibration Blocks, Clibration Block for flaw detector, thickness gauge test block A2
(BS)

Generally as V1. Thicker block minimises side wall echoes.

BS 2704

Steel

50x100x300mm

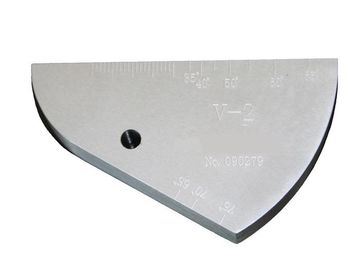

V2
(Specify hole diameter)
Ultrasonic Calibration Blocks, Clibration Block for flaw detector, thickness gauge test block A4
(BS)

Small calibration block for site checking of shear wave probes, time base and gain. 1.5mm or 5mm diameter hole target

BS 2704
IOW (Institute of Welding)

Steel

12.5x43x75mm

V2/20
(Specify hole diameter)
Ultrasonic Calibration Blocks, Clibration Block for flaw detector, thickness gauge test block A4
(BS)

Generally as V2. Thicker block eliminates side wall echoes. 1.5mm or 5mm diameter hole target.

BS 2704

Steel

20x43x75mm

BCB Ultrasonic Calibration Blocks, Clibration Block for flaw detector, thickness gauge test block A5
(BS)

Beam Calibration Block. Beam profile and resolution checks for shear wave probes. Sensitivity checks for shear and compression probes. 9 off 1.5mm holes.

BS 2704

Steel

50x75x305mm

A6 Ultrasonic Calibration Blocks, Clibration Block for flaw detector, thickness gauge test block A6
(BS)

Evaluating dominant frequency, pulse, length, dead zone and resolving power for shear and compression probes as BS4331 part 3,1974.

BS 2704

Steel

25x50x150mm

RTB Ultrasonic Calibration Blocks, Clibration Block for flaw detector, thickness gauge test block A7
(BS)

Checking shear wave probe resolution as BS4331 part 3, 1974. Steps of 2,3,4 and 5mm.

BS 2704

Steel

74mm radius
75mm thick

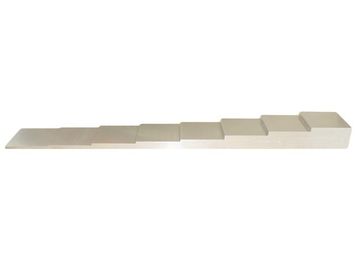

LSW Ultrasonic Calibration Blocks, Clibration Block for flaw detector, thickness gauge test block SPECIAL

Ladder step wedge for timebase calibration with thickness measuring compression probes. 8 steps from 1mm to 8mm.

Tolerance of +0.000mm-
-0.040mm

Steel

8x15x120mm

LSW/M Ultrasonic Calibration Blocks, Clibration Block for flaw detector, thickness gauge test block SPECIAL

Generally as LSW with 15mm diameter steel inserts mounted in plastic. 8 steps from 1mm to 8mm.

Tolerance of +0.000mm-
-0.040mm

Steel inserts
Plastic body

10x20x140mm

CSW Ultrasonic Calibration Blocks, Clibration Block for flaw detector, thickness gauge test block SPECIAL

Curved Step wedge for timebase calibration of thickness measuring probes. 5 steps - 2,4,6,8 and 10mm.

Tolerance of +0.000mm-
-0.040mm

Steel

100mm long
x 30mm I.D.
Quadrant

MU Ultrasonic Calibration Blocks, Clibration Block for flaw detector, thickness gauge test block SPECIAL

Metric Universal Block for general purpose checking as V1 block.

Tolerance of 0.1mm

Steel

20x50x150mm

TBR 2 125 (3) Ultrasonic Calibration Blocks, Clibration Block for flaw detector, thickness gauge test block SPECIAL

Radiused test block for calibration of boiler probes. 3 off 1.5mm holes.

Tolerance of 0.004 inch

Steel

20x25x165mm

TBR 2 125 (5) Ultrasonic Calibration Blocks, Clibration Block for flaw detector, thickness gauge test block SPECIAL

As TBR 2 125(3) - supplied with 5 off 1.5mm holes

Tolerance of 0.004 inch

Steel

20x25x165mm

A5 Blank Type B Ultrasonic Calibration Blocks, Clibration Block for flaw detector, thickness gauge test block ESI

Determination of signal curve and beam characteristics of single crystal probes (longer range). 1.6mm diameter hole.

ESI 98-7

Steel

50x75x305mm

A5 Blank Type C Ultrasonic Calibration Blocks, Clibration Block for flaw detector, thickness gauge test block ESI

Determination of signal curve and beam characteristics of single crystal probes (longer range). 1.6mm diameter hole.

ESI 98-7

Steel

50x75x305mm

ESI-BCB
N-A5
Ultrasonic Calibration Blocks, Clibration Block for flaw detector, thickness gauge test block ESI

Checking twin crystal probes for sensitivity. Contains four additional 1.5mm diameter holes to A5 block.

ESI 98-2

Steel

50x75x305mm

50 RAD Ultrasonic Calibration Blocks, Clibration Block for flaw detector, thickness gauge test block ESI

Checking pulse shape of shear wave probes.

ESI 98-2 and
ESI 98-8

Steel

50x75x150mm

ASME
(Specify Thickness)
Ultrasonic Calibration Blocks, Clibration Block for flaw detector, thickness gauge test block ASME

Setting sensitivity levels for weld testing. Sizes and locations of flaws are dependent on weld thickness.

ASME Article 5 Fig T-546.1

Steel

Size dependent on weld thickness

ASME/M
(Specify Thickness)
Ultrasonic Calibration Blocks, Clibration Block for flaw detector, thickness gauge test block SPECIAL
(ASME)



Metric equivalent of ASME block.



Tolerance of 0.1mm

Steel

Size dependent on weld thickness

DAC
(Specify Thickness)
Ultrasonic Calibration Blocks, Clibration Block for flaw detector, thickness gauge test block SPECIAL

Setting DAC characteristics for shear wave and compression wave probes. Flaws typically 1.5mm diameter holes at 20%, 40%, 60% and 80% of thickness.

Tolerance of 0.0004 inch

Steel

Size dependent on product thickness



Ultrasonic Calibration Blocks, Clibration Block for flaw detector, thickness gauge test block
