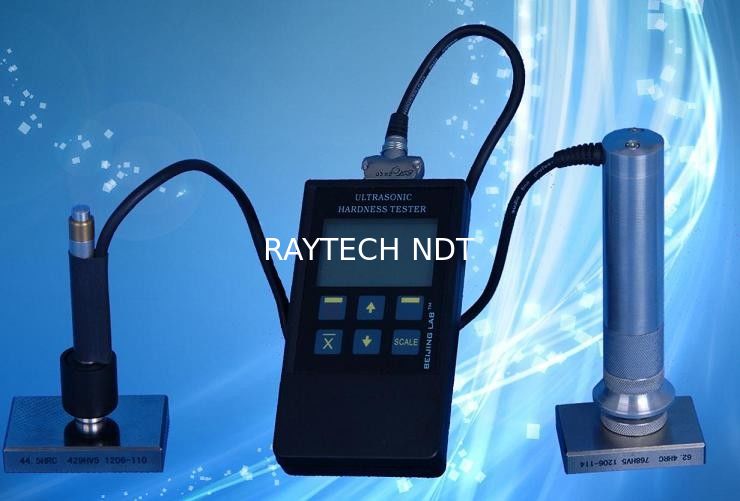

RH-2 Ultrasonic hardness tester, Portable hardness meter, Leeb hardness tester

China RH-2 Ultrasonic hardness tester, Portable hardness meter, Leeb hardness tester supplier
RH-2 Ultrasonic hardness tester, Portable hardness meter, Leeb hardness tester supplier RH-2 Ultrasonic hardness tester, Portable hardness meter, Leeb hardness tester supplier

Large Image :  RH-2 Ultrasonic hardness tester, Portable hardness meter, Leeb hardness tester

Product Details:

Place of Origin: China
Brand Name: Raytech
Certification: ISO CE
Model Number: RH-2

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: standard export package
Delivery Time: about 3~5days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Power: Electronic Usage: Hardness Tester
Memory: Storing 6000 Hardness Measurements Probe: Two Probes
Power Supply: 2 AA Batteries Time Of Continuous Work Hours, Not Less: 100 Hours



RH-2 Ultrasonic hardness tester, Portable hardness meter,



Leeb hardness tester



RH-2 Ultrasonic hardness tester, Portable hardness meter, Leeb hardness tester





Product information:



It is intended for measuring hardness of metal and alloy articles with Rockwell, Brinell, Vickers. It consists



of the dynamic transducer (sensor) and the electronic module.


The principle of tester operation is based on determination of frequency change in free oscillation of the



indenter (an acoustic resonator with Vickers diamond pyramid) subjected to the constant force of 50 N.




Advantages:


►measuring hardness of both small and large articles


►measuring hardness of complexly shaped articles, with hard to reach places, in various spatial positions


►convenience and ease of use


►PC-connectable via RS-232C interface


►high measuring performance


►power source discharge indication and display illumination


►graphical display with  lighting


►storing 6000 hardness measurements in the nonvolatile memory


►supply of reference blocks on request





RH-2 Main technical parameters:



Hardness measurement ranges



Rockwell Scale


  Brinell Scale


  Vickers Scale



Tensile strength, MPa





20 - 70



90 - 450



230 - 940



370 - 1740



Relative measurement error



Rockwell Scale



Brinell Scale


Vickers Scale







± 1



± 3%



± 3%



Chief dimensions, mm



120x60 x25



Category temperature range° C



-5 - +40



Power supply



2 AA batteries



Time of continuous work hours, not less



100 Hours



Weight of electronic module with sensor, kg



0.9
