Portable hardness tester, Metal hardness tester, Pressure Vessel Hardness tester RH-110

China Portable hardness tester, Metal hardness tester, Pressure Vessel Hardness tester RH-110 supplier
Portable hardness tester, Metal hardness tester, Pressure Vessel Hardness tester RH-110 supplier Portable hardness tester, Metal hardness tester, Pressure Vessel Hardness tester RH-110 supplier Portable hardness tester, Metal hardness tester, Pressure Vessel Hardness tester RH-110 supplier

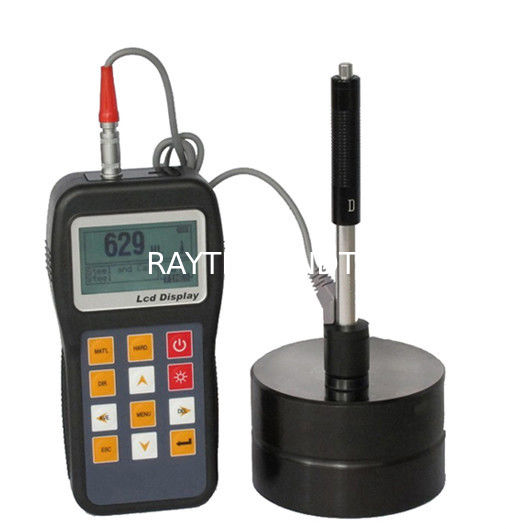

Large Image :  Portable hardness tester, Metal hardness tester, Pressure Vessel Hardness tester RH-110

Product Details:

Place of Origin: China
Brand Name: Raytech
Certification: ISO CE
Model Number: RH-110

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: standard export package
Delivery Time: about 3~5days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Portable Hardness Tester, Metal Hardness Tester, Pressure Vessel Hardness Tester RH-110 Display: 128*64 Digital Matrix LCD
Data Memory: Max 500 Groups Interface Port: RS232
Power: 3V( 2 AA Alkaline Batteries Weight: 0.3kgs







Portable hardness tester, Metal hardness tester, Pressure



Vessel Hardness tester RH-110



portable hardness tester





Function characteristics:



1.The measurement of material



Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast



aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged



steel test characteristic



2.Palm size for narrow space.



3.Large screen LCD,  showing all functions and parameters. With EL background light.



4.support "forged steel (Steel)" material



5.Test at any angle, even upside down.



6.Direct display of hardness scales HL, HB, HRB, HRC, HRA, HV,HS.



7.Large memory could store 600 groups including single measured value, impact direction,



material and hardness scale etc.



8.User recalibration function allowed.



9.The 5 ordinary batteries, can work continuously for not less than 200 hours



10.Can communicate with PC computer for statistics and printing by the optional cable.



11.Manual or automatic shut down.



12.Low battery indication.





Main Application:



1.Die cavity of molds.



2.Bearings and other parts.



3.Failure analysis of pressure vessel, steam generator and other equipment.



4.Heavy work piece.



5.The installed machinery and permanently assembled parts.



6.Testing surface of a small hollow space.



7.Material identification in the warehouse of metallic materials.



8.Rapid testing in large range and multi-measuring areas for large-scale work piece.





Specification:







RH-110

Measuring range

HLD (170-960), HRC (17.9-69.5),HB (19-683), HV (80-1042), HS (30.6-102.6), HRA(59.1-88), HRB (13.5-101.7)



Measuring direction



360°



Hardness Scale



HL, HB, HRB, HRC, HRA, HV, HS



Display



128*64 digital matrix LCD



Data memory



Max 500 groups. (relative to impact times 32~1)



Interface port



RS232



Power



3V( 2 AA alkaline batteries



Size



148*78*28mm



Weight



0.3kg



Continuous working time



200 hours (with backlight off)





Standard configuration:





No.

Item

Quantity

Standard
Configuration

1

Main body



2

D type impact device



3

Test block with HLD value



4

Cleaning brush (I)

1



5

Instruction manual

1



6

Warranty card

4



7

Small supporting ring

1



8

Screwdriver

1



9

Certificate of conformity

1



10

 Instrument box

1



11

5 alkaline battery

2



1

Other types of impact devices

1

Optional Configuration

2

Other types of support ring

1



3

Other types of impact ball/body

7



4

Mini-printer

1



5

Data processing software

1



6

Connecting line

1





TAG: Portable hardness tester    Digital Hardness Tester
