RTG-900 Wall Thickness gauge, Ultrasinic thickness gauge, UT thickness meter, thickness tester

China RTG-900 Wall Thickness gauge, Ultrasinic thickness gauge, UT thickness meter, thickness tester supplier
RTG-900 Wall Thickness gauge, Ultrasinic thickness gauge, UT thickness meter, thickness tester supplier RTG-900 Wall Thickness gauge, Ultrasinic thickness gauge, UT thickness meter, thickness tester supplier RTG-900 Wall Thickness gauge, Ultrasinic thickness gauge, UT thickness meter, thickness tester supplier

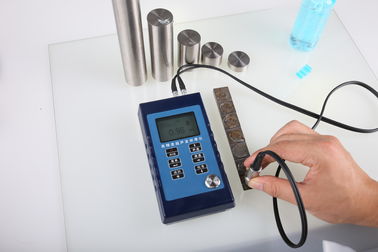

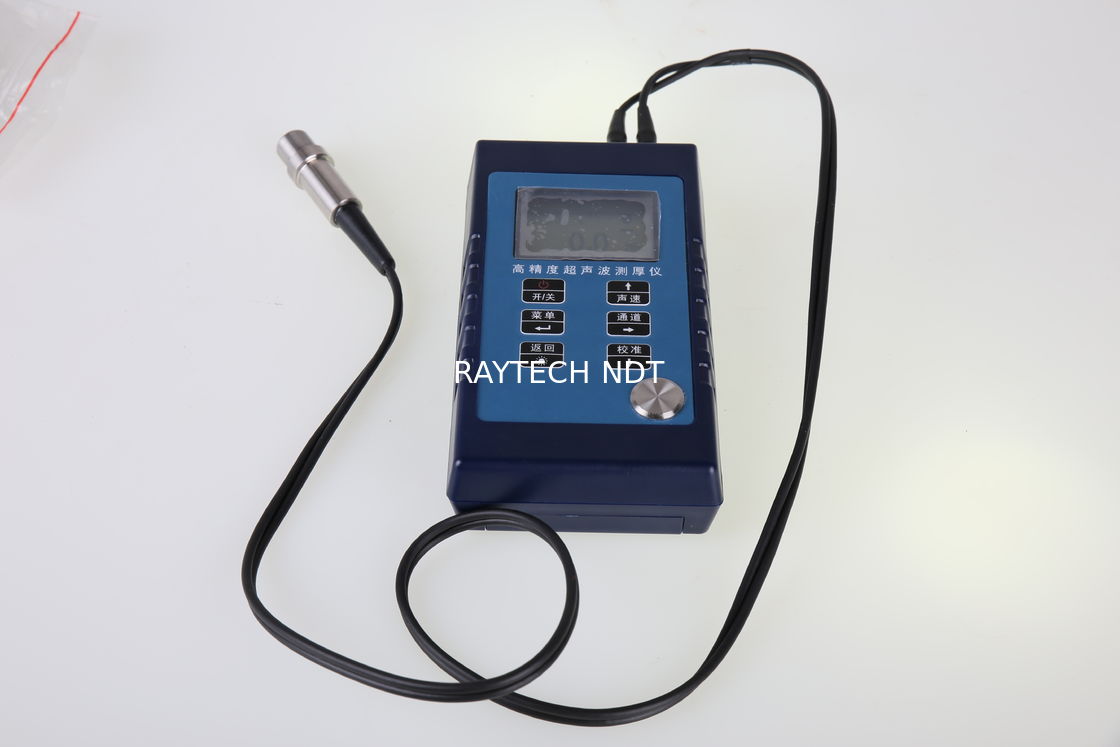

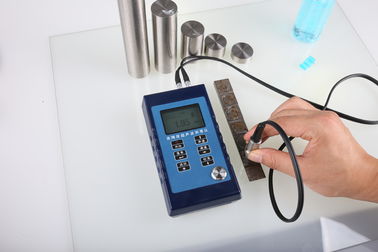

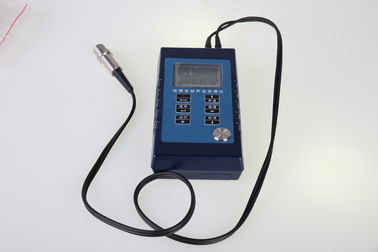

Large Image :  RTG-900 Wall Thickness gauge, Ultrasinic thickness gauge, UT thickness meter, thickness tester

Product Details:

Place of Origin: China
Brand Name: RAYTECH
Certification: ISO CE
Model Number: RTG-900

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: standard export package
Delivery Time: about 3~5days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Wall Thickness Gauge, Ultrasinic Thickness Gauge, UT Thickness Meter, Thickness Tester Measurement Range: 0.65~500mm
Display Resolution: 0.01mm,0.1mm Material Velocity: 508 ~ 9999m / S
Surface Measurement Limit: Φ10mm × 2.0mm Display: 128 × 64 Dot Matrix LCD Screen



RTG-900 Wall Thickness gauge, Ultrasinic thickness gauge,

UT thickness meter, thickness tester

RTG-900 Wall Thickness gauge, Ultrasinic thickness gauge, UT thickness meter, thickness tester

RTG-900 is an advanced nondestructive testing instrument, it can accurately measure all kinds of

plank and machining parts, widely used in petroleum, chemical industry, metallurgy, shipbuilding,

aviation, aerospace and other fields.

RTG-900 can be used for any good ultrasonic conductor thickness measurement, such as metal,

plastic, ceramic, glass, composites, epoxies etc.


Parameter:

Measurement range: 0.65~500mm (steel probe segmented applicable)

Display resolution:0.01mm,0.1mm

Material Velocity: 508 ~ 9999m / s

Accuracy: ± (1% H +0.1) mm

Surface measurement limit: Φ10mm × 2.0mm

Receive Bandwidth: 1MHz ~ 10MHz (-3dB)

Power supply: 3VDC (two AA alkaline batteries)

Working time: 280 hours (automatic mode)  100 hours (back-light on)

Display: 128 × 64 dot matrix LCD screen

Dimensions: 140 (L) × 80 (W) × 40 (H) mm

Weight: 176g (with battery)

Working temperature: -10 ~ 50 ℃ (using the temperature probe, the working temperature: <350 ℃)

Humidity: 20% ~ 90% RH


Features:

English menu operation

Shut down automatically or manually

Identify a variety of probes to meet more measurement needs: 2M, 5M, 7M, ZW5P (high temperature)

Applies to pipe wall thickness measurement

Large-capacity data storage

Metric / inch Optional: Display units can be selected between millimeters and inches

Limit alarm

Measuring the speed of sound

Have a back-light function; measure is suitable for the environment in a bad light


Standard configuration:


No.

Name

Quantity

Remark

1

Gauge Host

1



2

Standard probe

1



3

Coupling agent

1



4

Battery

2



5

Manual

1



6

Test certificate

1






Probe specification:


probe

Specification

Range

Temperature

Standard

5MHz,Ф10mm

1~200mm

-10~50℃

ZW5P (high temperature)

5MHz,Ф12mm

4~80mm

-10~300
300~500℃

Micro caliber

7MHz,Ф6mm

0.65 ~ 100mm (mainly for miniature pipe)

-10~50℃

CAST IRON

2MHz,Ф12mm or Ф22mm

3~50mm

-10~50℃

Wide-range probe

2MHz,Ф20mm

3~500mm

-10~50℃

ZGM

50g

For high temperature probe

-10~500℃


RTG-900 Wall Thickness gauge, Ultrasinic thickness gauge, UT thickness meter, thickness tester
TAG: Ultrasonic thickness gauge     UT Thickness Meter    Portable Ultrasonic Thickness Tester
