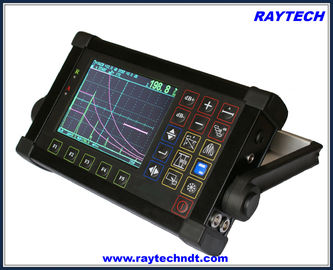

Portable Flaw Detector RFD680, Ultrasonic Flaw Detectors, NDT ultrasonic testing quipment

China Portable Flaw Detector RFD680, Ultrasonic Flaw Detectors, NDT ultrasonic testing quipment supplier
Portable Flaw Detector RFD680, Ultrasonic Flaw Detectors, NDT ultrasonic testing quipment supplier Portable Flaw Detector RFD680, Ultrasonic Flaw Detectors, NDT ultrasonic testing quipment supplier Portable Flaw Detector RFD680, Ultrasonic Flaw Detectors, NDT ultrasonic testing quipment supplier Portable Flaw Detector RFD680, Ultrasonic Flaw Detectors, NDT ultrasonic testing quipment supplier Portable Flaw Detector RFD680, Ultrasonic Flaw Detectors, NDT ultrasonic testing quipment supplier

Large Image :  Portable Flaw Detector RFD680, Ultrasonic Flaw Detectors, NDT ultrasonic testing quipment

Product Details:

Place of Origin: China
Brand Name: RAYTECH
Certification: ISO CE
Model Number: RFD680

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: standard export package
Delivery Time: about 3~5days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Portable Flaw Detector RFD680, Ultrasonic Flaw Detectors, NDT Ultrasonic Testing Quipment Measuring Range(mm): 0 ~ 10000
Measurement Mode: Single,Dual,Thru Port Type: Lemo 01
Gain(dB): 0~130 Weight(kg): 1.6(with Battery)

Portable Flaw Detector RFD680, Ultrasonic Flaw Detectors, NDT ultrasonic testing quipment



Portable Flaw Detector RFD680, Ultrasonic Flaw Detectors, NDT ultrasonic testing quipment





Automated calibration,Automated gain

★ DAC,AVG,TCG,B scan,AWS

★ High-speed capture and very low noise

★ Solid metal housing

★ high contrast viewing of the waveform from bright

★ Powerful pc software and reports can be export to excel



Features

  • Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,ф);
  • Automated switch three staff gauge ((Depth d,level p,distance s);
  • Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity ;
  • Convenient to make and use DACTCG and AVG to evaluate the echo, the curve can be modified and compensated
  • 6dB DAC functions;
  • 500 independence setup, any criterion can be input freely, we can work in the scene without test block;
  • Big memory of 1000 A graph
  • Automated gain and gain scan;
  • Peak Hold and Peak Memory;
  • B scan;
  • AWS D1.1
  • Automated make video of test process and play;
  • Powerful pc software and reports can be export to excel;
  • Li battery, continue working time up to 10 hours;
  • The embeded software can be online updated;

Other assistant function

• Display freeze;

• Automated echo degree;

• Angles and K-value;

• Lock and unlock function of system parameters;

• Electronic clock calendar ;

• Two gates setting and alarm indication;

• Gate and DAC alarm;



Specifications

Title Parameter Title Parameter
Measuring Range(mm) 0 ~ 10000 Measurement Mode Single,Dual,Thru
Vertical Linearity Error ≤3% Reject 0~80%
Horizontal Linearity Error ≤0.1% Pulse Displacement(μs) -20 ~ +3400
Sensitivity Leavings ≥62dB Zero(μs) 0.0 ~ 99.99
Dynamic range ≥34dB Port Type Lemo 01
Resolving Power ≥36dB Operating Temperature (℃) -20~50
Frequency Range(MHz) 0.5 ~ 20 H×W×D(mm) 240×150×50
Gain(dB) 0 ~ 130 Weight(kg) 1.6(with battery)
Material Velocity(m/s) 1000 ~ 15000



Standard Configuration





Name QTY
1 Main unit 1

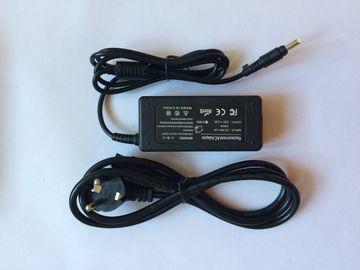

2 power adaptor 1

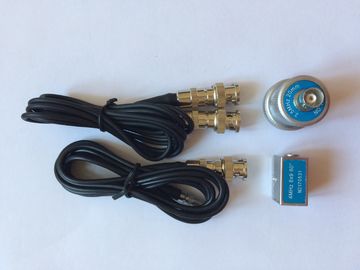

3 probe connecting cable 2
4 Instrument case 1
5 Instruction manual 1
6 Straight probe 1
7 Angle probe 8x9 60°4MHz 1
8 Certificate of approval 1
9 Warranty card 1

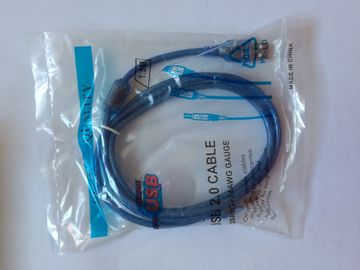

10 Software and cable 1

































Portable Flaw Detector RFD680, Ultrasonic Flaw Detectors, NDT ultrasonic testing quipment
