Pocket Coating Thickness Gauge, Paint Thickness Gage, Digital Painting Tester TG-8800

China Pocket Coating Thickness Gauge, Paint  Thickness Gage, Digital Painting Tester TG-8800 supplier
Pocket Coating Thickness Gauge, Paint  Thickness Gage, Digital Painting Tester TG-8800 supplier Pocket Coating Thickness Gauge, Paint  Thickness Gage, Digital Painting Tester TG-8800 supplier

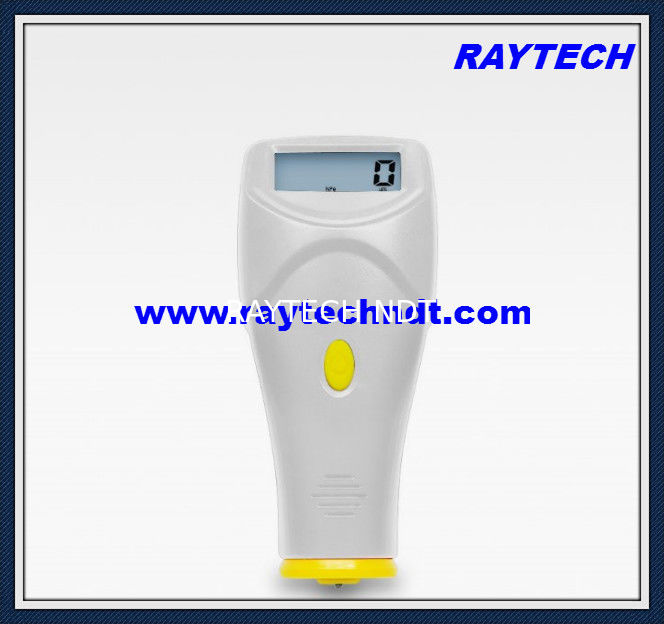

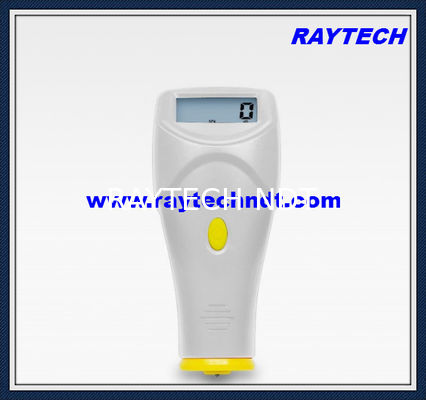

Large Image :  Pocket Coating Thickness Gauge, Paint Thickness Gage, Digital Painting Tester TG-8800

Product Details:

Place of Origin: China
Brand Name: RAYTECH
Certification: ISO CE
Model Number: TG-8800

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: standard export package
Delivery Time: about 3~5days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Pocket Coating Thickness Gauge, Paint Thickness Gage, Digital Painting Tester TG-8800 Probe Type: Buildin Probe
Measure Range: 0~1250um Power Supply: 4 Batteries
Minimum Measurement Area: 6mm Size: 108x48x32mm



Pocket Coating Thickness Gauge, Paint Thickness Gage,



Digital Painting Tester TG-8800



Pocket Coating Thickness Gauge, Paint  Thickness Gage, Digital Painting Tester TG-8800



Product Description



The Coating Thickness Gauge is suitable for automotive, paint layer coating thickness measurement; Integral Type suitable for single-hand operation, large probe with large contact surface have better

stability, users can get continuous, good repetitive and precise measurements.



It is a kind of portable measuring instrument, it can quickly, no damage and precise coating, coating thickness measurement; Not only can be used in the laboratory, also can be used in the engineering field; Through the use of different measuring head, but also can meet the needs of a variety of measurement; Widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and testing field; Is the material protection professional necessary instruments.



Product Feature



* It is not only a F type gauge but also a NF type gauge.
* Digital backlit display gives exact reading with no guessing or errors.
* Two measurement mode: Single and Continuous.
* Wide measuring range and high resolution.
* Manual or automatic shut down.
* Optional USB Cable to connect with PC.





Product Parameters



Measuring Range 0~1250µm/0~50mil
Resolution 0.1 um (0~99.9um)/1 um (over 100um)
Accuracy: 1~3%n or 2.5 µm or 0.1mil (Whichever is the greater)
Minimum Measurement Area 6 mm
Minimal Surface F Type convex1.5 mm / concave 25 mm
NF Type convex 3 mm / concave 50mm
Operating Condition Temp: 0~50°C /
Humidity: <95%
Size 108x48x32mm
Power Supply 2x1.5vAAA Um-4 Battery
Weight 55g (Not including batteries)




Product Accessories









Standard Accessories

Main Unit
Calibration Foils
Substrate ( Iron )
Substrate ( Aluminum )
Leather Bag
Operation Manual
Optional Accessories USB data output


Coating Thickness Gauge





TAG:  Coating Thickness Gauge



Painting Test Gage        Portable Thickness Gage Tester
