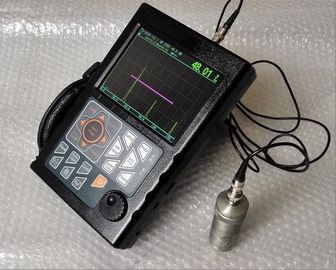

Digital Portable Ultrasonic Flaw Detector, NDT, NDE, UT Flaw Detector RFD650

China Digital Portable Ultrasonic Flaw Detector, NDT, NDE, UT Flaw Detector RFD650 supplier
Digital Portable Ultrasonic Flaw Detector, NDT, NDE, UT Flaw Detector RFD650 supplier Digital Portable Ultrasonic Flaw Detector, NDT, NDE, UT Flaw Detector RFD650 supplier

Large Image :  Digital Portable Ultrasonic Flaw Detector, NDT, NDE, UT Flaw Detector RFD650

Product Details:

Place of Origin: China
Brand Name: RAYTECH
Certification: ISO CE
Model Number: RFD650

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: standard export package
Delivery Time: about 3~5days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Digital Portable Ultrasonic Flaw Detector, NDT, NDE, UT Flaw Detector RFD650 Range: 0~10000mm
Resolution: 0.1mm And 1mm Range Of Gain: 0~130dB
Sound Speed: 1000 M/s~20000m/s Overall Dimension: 240mm×156mm×48mm







Digital Portable Ultrasonic Flaw Detector, NDT, NDE, UT Flaw



Detector RFD650



Digital Portable Ultrasonic Flaw Detector, NDT, NDE, UT Flaw Detector RFD650





Automated calibration,Automated gain

★ DAC,AVG,TCG,B scan,AWS

★ High-speed capture and very low noise

★ Solid metal housing

★ high contrast viewing of the waveform from bright

★ Powerful pc software and reports can be export to excel

Features:

1.Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB);

2.Automated switch three staff gauge ((Depth d,level p,distance s);

3.Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity;

4.Convenient to make and use DACTCG and AVG to evaluate the echo, the curve can be modified and compensated

5. 6dB DAC functions;

6.Standards of test for DAC is saved.

7. 500 independence setup, any criterion can be input freely, we can work in the scene without test

block;

8.Big memory of 1000 A graph

9.Automated gain and gain scan;

10.Peak Hold and Peak Memory;

11.B scan;

12.AWS D1.1

13.Automated make video of test process and play; use upan,the length of video is unlimited.

14.Powerful pc software and reports can be export to excel;

15.Li battery, continue working time up to 12 hours;

16.The embeded software can be online updated;



Other assistant function

Display freeze;

Automated echo degree;

Angles and K-value;

Lock and unlock function of system parameters;

Electronic clock calendar ;

Two gates setting and alarm indication;

Gate and DAC alarm;



Specifications


Title Parameter Title Parameter
Measuring Range(mm) 0 ~ 10000 Measurement Mode Single,Dual,Thru
Vertical Linearity Error ≤3% Reject 0~80%
Horizontal Linearity Error ≤0.1% Pulse Displacement(μs) -20 ~ +3400
Sensitivity Leavings ≥62dB Zero(μs) 0.0 ~ 99.99
Dynamic range ≥32dB Port Type BNC(Q9)
Resolving Power ≥36dB Operating Temperature (℃) -20~50
Frequency Range(MHz) 0.2 ~ 20 H×W×D(mm) 240×156×48
Gain(dB) 0 ~ 130 Weight(kg) 1.0(with battery)
Material Velocity(m/s) 1000 ~ 20000



Standard Configuration





Name QTY
1 Main unit 1

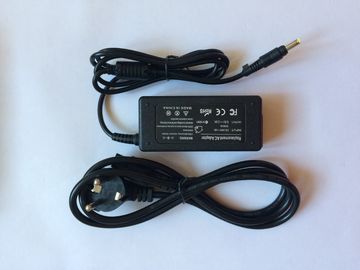

2 power adaptor 1
3 probe connecting cable 2
4 Instrument case 1
5 Instruction manual 1

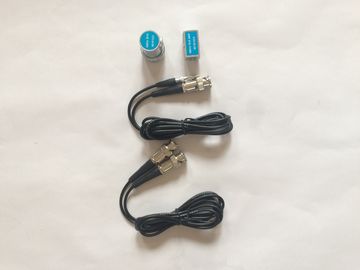

6 Straight probe 10mm 4MHz 1
7 Angle probe 8x9 60°4MHz 1
8 Certificate of approval 1
9 Warranty card 1

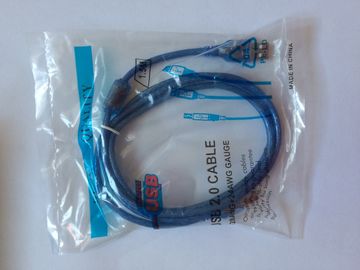

10 Software and cable 1































Digital Portable Ultrasonic Flaw Detector, NDT, NDE, UT Flaw Detector RFD650



TAG: Digital ultrasonic flaw detector     Ultrasonic Flaw Detector    UT flaw detector
