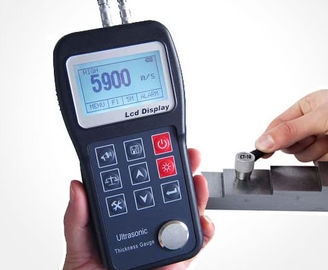

LED Display Ultrasonic Thickness Gauge, UT Wall thickness Gage, Metal Thickness Meter RTG300

China LED Display Ultrasonic Thickness Gauge, UT Wall thickness Gage, Metal Thickness Meter RTG300 supplier
LED Display Ultrasonic Thickness Gauge, UT Wall thickness Gage, Metal Thickness Meter RTG300 supplier LED Display Ultrasonic Thickness Gauge, UT Wall thickness Gage, Metal Thickness Meter RTG300 supplier

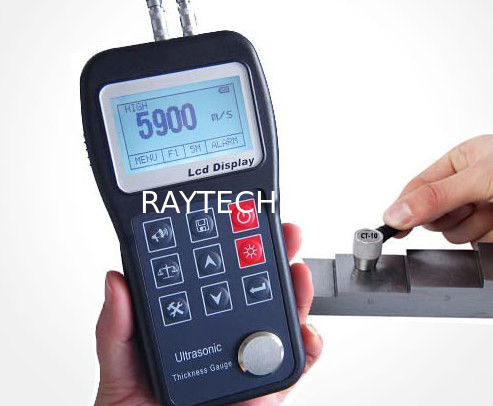

Large Image :  LED Display Ultrasonic Thickness Gauge, UT Wall thickness Gage, Metal Thickness Meter RTG300

Product Details:

Place of Origin: China
Brand Name: RAYTECH
Certification: ISO CE
Model Number: RTG300

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: standard export package
Delivery Time: about 3~5days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: LED Display Ultrasonic Thickness Gauge, UT Wall Thickness Gage, Metal Thickness Meter RTG300 Display: LED Backlight
Measuring Range: 0.75mm~300.0mm Units: Metric/Imperial Unit Seletable
Sound Velocity Range: 1000m/s~9999m/s(0.039~0.394in/μs Weight: 238g

LED Display Ultrasonic Thickness Gauge, UT Wall thickness Gage, Metal Thickness Meter RTG300

LED Display Ultrasonic Thickness Gauge, UT Wall thickness Gage, Metal Thickness Meter RTG300



Main function:

1.Suitable for measuring metal (such as steel, cast iron, aluminum, copper, etc.), plastic, ceramic, glass, glass fiber and other any good conductors of ultrasonic thickness.

2.Can be equipped with a variety of different frequency, chip size, double crystal probe use.

3.Have probe zero calibration, a two-point calibration function, can be automatically on system error correction.

4.Thickness can be known the sound velocity measurement, in order to improve the accuracy of measurement.

5.With functions of coupling status alerts.

6.LED backlight display, convenient to use in dark environment.

7.The battery indicator function, can real-time display the battery remaining power.

8.With automatic power saving function dormancy, automatic shutdown, etc.

9.Small, portable, high reliability, suitable for bad operating environment, vibration, impact resistance and electromagnetic interference.

Technology Parameter:

Measuring range:

0.75mm~300.0mm(0.03inch~11.8inch)

Units:

Metric/Imperial unit seletable

Sound Velocity Range:

1000m/s~9999m/s(0.039~0.394in/μs

Display resolution:

0.01mm or 0.1mm(lower than 100.0mm)
0.1mm(more than 99.99mm)

Accuracy:

±(0.5%Thickness+0.04)mm,

depends on Materials and conditions

Data Memory:

5 files(up to 100 values for each file)of stored values
5 Sound Velocity of stored values

Power Source:

2pcs 1.5V AA size,batteries.100 hours typical

operating time(LED backlight off)

Outline Dimensions:

150mm*74mm*32mm

Workpiece surface temperature:

- 10 ~ 60 ℃

The minimum thickness value capture capacity

With a minimum thickness value capture capacity

Standard configuration

Main unit, 5MHz probe, 4 mm steel calibration block, coupling agent, 2 batteries (non - Aviation)

Measurement cycle:

4 times/SEC, scanning of single point measurement

model 20 times per second.

Weight:

238 g

Power source:

Type AA alkaline battery 1.5 V (2)

Optional attachments:

2 MHZ, 7 MHZ and 5 MHZ

(high temperature) probe

Optional probe and parameters:

Model

Freq
MHZ

Diam
mm

Measuring Range

Lower limit

Description

N02

2

22

3.0mm~300.0mm(In Steel)
40mm (in Gray Cast Iron )

20

for thick, highly attenuating,

 or highly scattering materials

N05

5

10

1.2mm~230.0mm(In Steel)

Φ20mm×3.0mm

Normal Measurement

N05
/90°

5

10

1.2mm~230.0mm(In Steel)

Φ20mm×3.0mm

Normal Measurement

N07

7

6

0.75mm~80.0mm
(In Steel)

Φ15mm×2.0mm

For thin pipe wall or

small curvature pipe wall measurement

HT5

5

14

3~200mm (In Steel)

30

For high temperature

(lower than 300℃) measurement.





































LED Display Ultrasonic Thickness Gauge, UT Wall thickness Gage, Metal Thickness Meter RTG300
