Paint coating thickness gauge,Paint thickness meter gauge, digital paint thickness gauge

China Paint coating thickness gauge,Paint thickness meter gauge, digital paint thickness gauge supplier
Paint coating thickness gauge,Paint thickness meter gauge, digital paint thickness gauge supplier Paint coating thickness gauge,Paint thickness meter gauge, digital paint thickness gauge supplier

Large Image :  Paint coating thickness gauge,Paint thickness meter gauge, digital paint thickness gauge

Product Details:

Place of Origin: China
Brand Name: RAYTECH
Certification: ISO CE
Model Number: OTG-810N

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: standard export package
Delivery Time: about 3~5days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Paint Coating Thickness Gauge,Paint Thickness Meter Gauge, Digital Paint Thickness Gauge Probe Type: Built-in Probe
Measure Range: 0~1250um Power Supply: 2 * AA Batteries
Minimum Substrate: 10 * 10mm Thinnest Substrate: 0.4mm

Paint coating thickness gauge,Paint thickness meter gauge, digital paint thickness gauge



This device is a portable meter. It is capable of measuring coating thickness quickly, precisely and without injury, both for the laboratory and engineering environment. It is currently widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and testing fields; and is essential for material protection major.

Features

   Thickness measurement using Eddy Current Method to measure the non-conductive coating on a non-magnetic metal substrate.

   Single-point or two-point method could be used to correct probe system deviation, in order to ensure the accuracy of the device in the process       of measuring.

  Power voltage indicator.

  Speaker beep while operating.

  Power-off automatically when idle; manually power-off available.

  Negative display function to ensure the accuracy of zero point calibration.

  Ultra-low power consumption, less than 10 μA in standby mode.

Technical Data

  Measuring range: 0-1250 μm

  Power supply: 2 * AA batteries

  Measurement deviation: zero calibration ± (1 + 3% H); two-point calibration ± [(1% ~ 3% H)] H + 1.5

  Ambient temperature: 0-40 ℃

  Relative humidity: ≤85%

  Minimum substrate: 10 * 10mm

  Minimum curvature: 5mm convex; 5mm concave

  Thinnest substrate: 0.4mm

  Weight: 99g (with battery)

  Size: 102mm * 66mm * 24mm

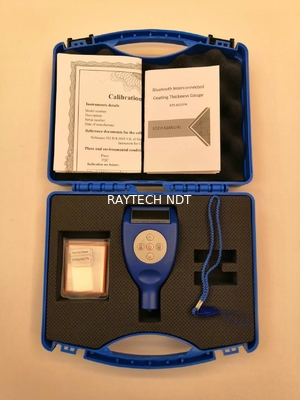

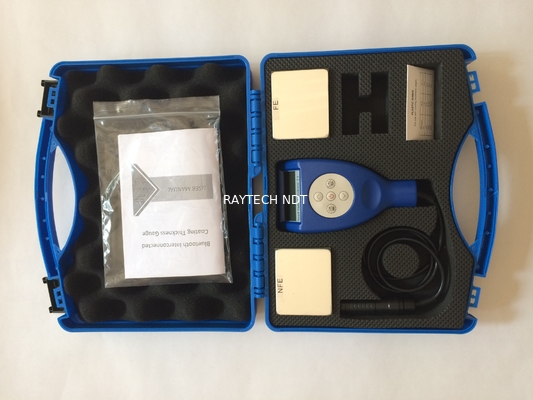

Item Checklist

Name

Quantity

Meter device

1

Standard films

5

Base substrate

1

Packing box

1

User Manual

1

























Services

This instrument has one-year quality guarantee, maintenance for all life. If there are any problems of this product, please contact the dealer in time.

Coating Thickness Gauge, Film thickness Meter, Paint Inspection Tester, Non Ferrous Base OTG-810NF
