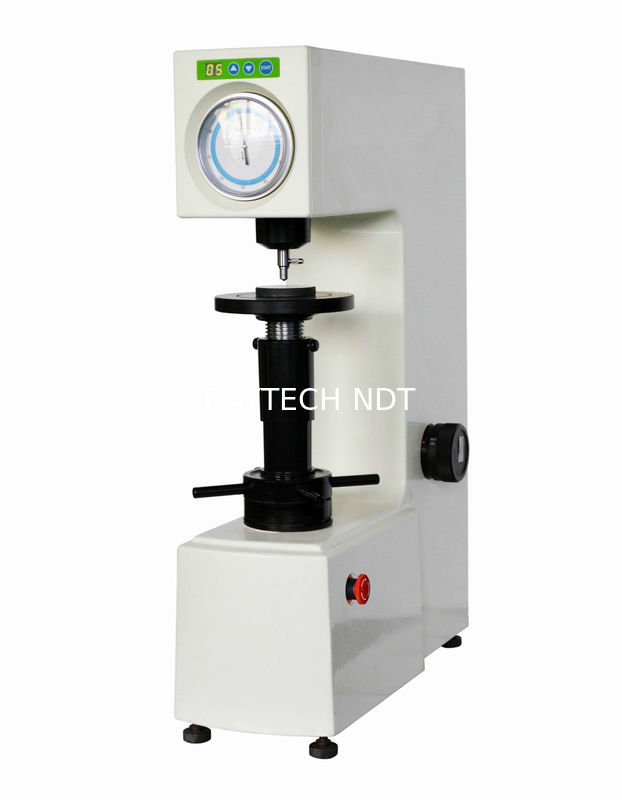

Motorized Superficial Automatic Loading Rockwell Hardness Tester HRM-45DT

China Motorized Superficial Automatic Loading Rockwell Hardness Tester HRM-45DT supplier
Motorized Superficial Automatic Loading Rockwell Hardness Tester HRM-45DT supplier Motorized Superficial Automatic Loading Rockwell Hardness Tester HRM-45DT supplier

Large Image :  Motorized Superficial Automatic Loading Rockwell Hardness Tester HRM-45DT

Product Details:

Place of Origin: CHINA
Brand Name: RAYTECH
Certification: ISO CE
Model Number: HRM-45DT

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Carton
Delivery Time: 5~8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500units per month
Detailed Product Description
Product Name: Motorized Superficial Automatic Loading Rockwell Hardness Tester HRM-45DT Initial Test Force: 3kgf (29.42N)
Total Test Force: 15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N) Indenter: Diamond Rockwell Indenter, ф1.588mmBall Indenter
Loading Method: Automatic (Loading/Dwell/Unloading) Resolution: 0.5HR



Motorized Superficial Automatic Loading Rockwell Hardness



Tester HRM-45DTMotorized Superficial Automatic Loading Rockwell Hardness Tester HRM-45DT









Main Function:



HRM-45DT Motorized superficial Rockwell hardness tester adopts the mechanism of automatic loading



and unloading of the test force, the test force is regulated by the load-change hand wheel. It can select



the dwell time and is very easy to use. Besides setting zero to dial, there is no man-made error. The



instrument has high sensitivity and stability.



Application range:



Suitable for surface quenched steel, surface heat treating and chemical treating materials, copper alloy,



aluminum alloy, sheet, zinc layers, chrome layers, tin layers, bearing steel and cold and hard casting etc.



Technical Specification:









Model



HRM-45DT



Initial Test Force



3kgf (29.42N)



Total Test Force



15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N)



Indenter



Diamond Rockwell Indenter, ф1.588mmBall Indenter



Loading Method



Automatic (Loading/Dwell/Unloading)



Hardness Reading



Dial



Resolution



0.5HR



Dwell Time



2~60s



Max. Height of Specimen



175mm



Throat



165mm



Power Supply



AC220V,50Hz



Execute Standard



ISO 6508,ASTM E-18,JIS Z2245,GB/T 230.2



Dimension



520×215×700mm,Packing Dimension: 650×370×950mm



Weight



Net Weight: 73kg,Gross Weight: 100kg




Packing List:





Name



Qty Name Qty



Instrument Main Body



1 set Diamond Rockwell Indenter 1 pc



ф1.588mmBall Indenter



1 pc Middle Plane Test Table 1 pc



Large Plane Test Table



1 pc V-shaped Test Table 1 pc

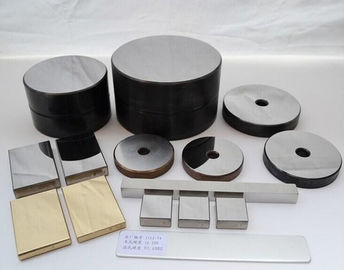

Hardness Block 70~85 HR30T



1 pc Hardness Block 80~90 HR15N 1 pc



Hardness Block 65~80 HR30N



1 pc Weight A, B, C 3 pcs



Power Cable



1 pc Fuse 2A 2 pcs



Level



1 pc Horizontal Regulating Screw 4 pcs



Screw Driver



1 pc Spanner 1 pc



Anti-dust Cover



1 pc Usage Instruction Manual 1 copy
