RS232 Interface Digital Rockwell Hardness Tester HRS-150 with LCD Screen and Built-in Printer

China RS232 Interface Digital Rockwell Hardness Tester HRS-150 with LCD Screen and Built-in Printer supplier
RS232 Interface Digital Rockwell Hardness Tester HRS-150 with LCD Screen and Built-in Printer supplier RS232 Interface Digital Rockwell Hardness Tester HRS-150 with LCD Screen and Built-in Printer supplier

Large Image :  RS232 Interface Digital Rockwell Hardness Tester HRS-150 with LCD Screen and Built-in Printer

Product Details:

Place of Origin: CHINA
Brand Name: RAYTECH
Certification: ISO CE
Model Number: HRS-150

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Carton
Delivery Time: 5~8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: RS232 Interface Digital Rockwell Hardness Tester HRS-150 With LCD Screen And Built-in Printer Initial Test Force: 10kgf (98.07N)
Total Test Force: 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) Indenter: Diamond Rockwell Indenter, ф1.588mmBall Indenter
Loading Method: Automatic (Loading/Dwell/Unloading) Resolution: 0.1HR


RS232 Interface Digital Rockwell Hardness Tester HRS-150

with LCD Screen and Built-in Printer

RS232 Interface Digital Rockwell Hardness Tester HRS-150 with LCD Screen and Built-in Printer

Main Function:

HRS-150 Digital Rockwell hardness tester is equipped with a newly-designed large displaying

screen with good reliability, excellent operation and easy watching, thus it is a high-tech product

combining the mechanic and electric features. It can show and set the present scale, test force,

test indenter, dwell time and hardness conversion; the main function is as follows: Selection of all

the Rockwell scales; Conversion scales of different kinds of hardness; Test results can be saved


and printed out, automatic calculation of maximum, minimum and average value; With RS232

interface for connecting to the computer.

Application range:

Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable

cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc.


Technical Specification:


Model


HRS-150


Initial Test Force


10kgf (98.07N)


Total Test Force


60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)


Indenter


Diamond Rockwell Indenter, ф1.588mmBall Indenter


Loading Method


Automatic (Loading/Dwell/Unloading)


Hardness Reading


LCD Screen Display


Test Scale


HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV


Conversion Scale


HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW


Data Output


Built-in Printer,RS232 Interface


Resolution


0.1HR


Dwell Time


0~60s


Max. Height of Specimen


175mm


Throat


165mm


Power Supply


AC220V,50Hz



Execute Standard


ISO 6508,ASTM E-18,JIS Z2245,GB/T 230.2


Dimension


520×215×700mm,Packing Dimension: 650×370×950mm


Weight


Net Weight: 78kg,Gross Weight: 100kg




Packing List:




Name


QtyNameQty


Instrument Main Body


1 setDiamond Rockwell Indenter1 pc


ф1.588mmBall Indenter


1 pcMiddle Plane Test Table1 pc


Large Plane Test Table


1 pcV-shaped Test Table1 pc

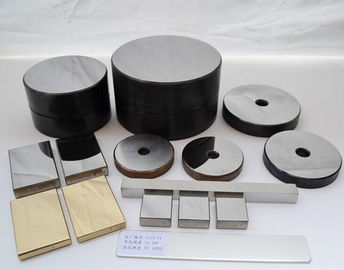

Hardness Block 60~70 HRC


1 pcHardness Block 20~30 HRC1 pc


Hardness Block 80~100 HRB


1 pcWeight A, B, C3 pcs


Power Cable


1 pcFuse 2A2 pcs


Level


1 pcHorizontal Regulating Screw4 pcs


Screw Driver


1 pcSpanner1 pc


Anti-dust Cover


1 pcUsage Instruction Manual1 copy
