Motorized Rockwell Hardness Tester HR-150DT, Automatic Loading, Diamond Rockwell Indenter
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Motorized Rockwell Hardness Tester HR-150DT, Automatic Loading, Diamond Rockwell Indenter | Initial Test Force: | 10kgf (98.07N) |
|---|---|---|---|
| Total Test Force: | 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) | Indenter: | Diamond Rockwell Indenter, ф1.588mmBall Indenter |
| Loading Method: | Automatic (Loading/Dwell/Unloading) | Resolution: | 0.5HR |

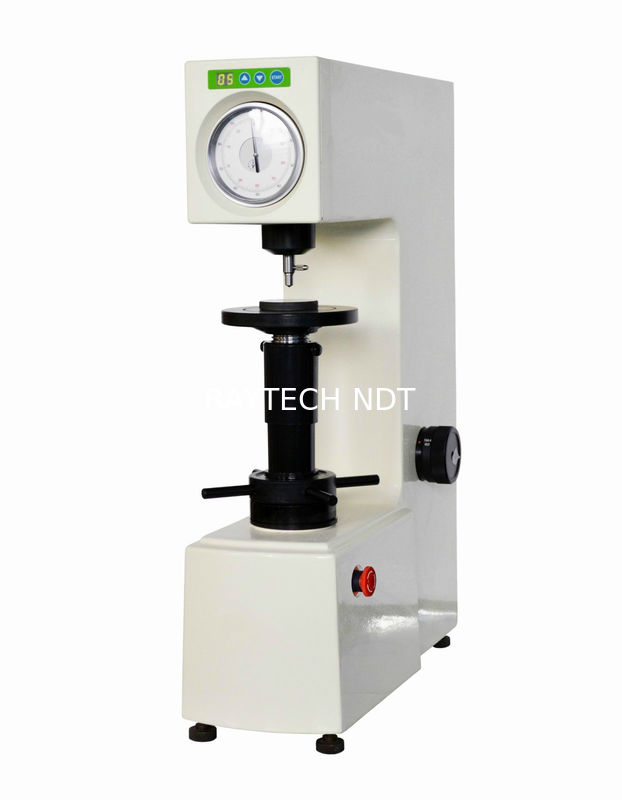

Motorized Rockwell Hardness Tester HR-150DT, Automatic
Loading, Diamond Rockwell Indenter
Main Function:
HR-150DT Motorized Rockwell hardness tester adopts the mechanism of automatic loading and
unloading of the test force, the test force is regulated by the load-change hand wheel. It can select
the dwell time and is very easy to use. Besides setting zero to dial, there is no man-made error.
The instrument has high sensitivity and stability.
Application range:
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable
cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc.
Technical Specification:
| HR-150DT |
| 10kgf (98.07N) |
| 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) |
| Diamond Rockwell Indenter, ф1.588mmBall Indenter |
| Automatic (Loading/Dwell/Unloading) |
| Dial |
| 0.5HR |
| 2~60s |
| 175mm |
| 165mm |
| AC220V,50Hz |
| ISO 6508,ASTM E-18,JIS Z2245,GB/T 230.2 |
| 520×215×700mm,Packing Dimension: 650×370×950mm |
| Net Weight: 78kg,Gross Weight: 100kg |
Packing List:
| Qty | Name | Qty |
| 1 set | Diamond Rockwell Indenter | 1 pc |
| 1 pc | Middle Plane Test Table | 1 pc |
| 1 pc | V-shaped Test Table | 1 pc |

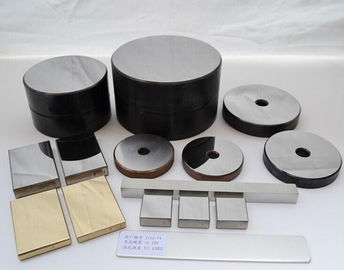

| 1 pc | Hardness Block 20~30 HRC | 1 pc |
| 1 pc | Weight A, B, C | 3 pcs |
| 1 pc | Fuse 2A | 2 pcs |
| 1 pc | Horizontal Regulating Screw | 4 pcs |
| 1 pc | Spanner | 1 pc |
| 1 pc | Usage Instruction Manual | 1 copy |
