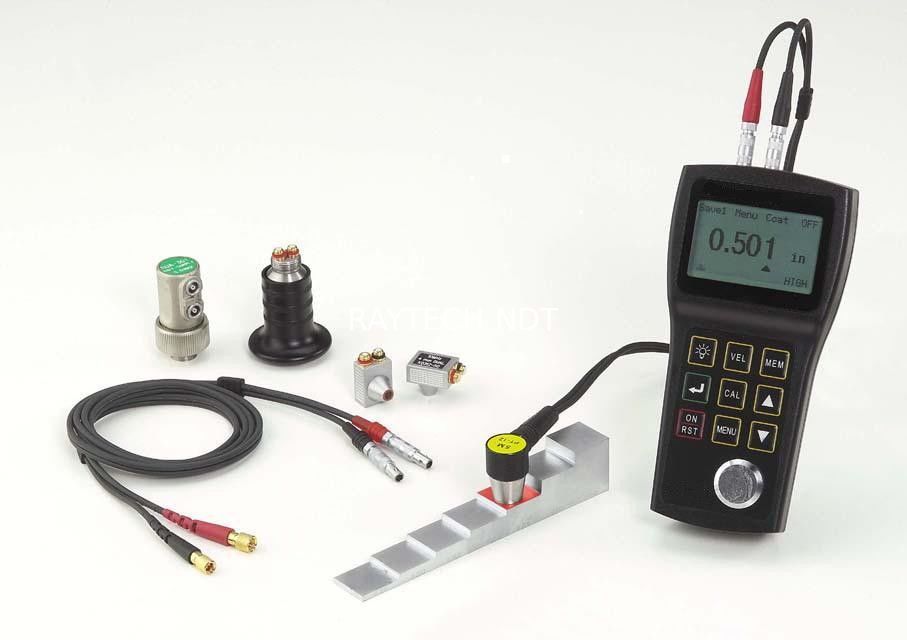

Digital Ultrasonic Thickness Meter, Metal Thickness Gauge, non destructive testing RTG-510
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Digital Ultrasonic Thickness Meter, Metal Thickness Gauge, Non Destructive Testing RTG-510 | MEASURMENT RANGE STANDARD: | 0.8 Mm TO 300 Mm |
|---|---|---|---|
| THROUGH COATING: | 2.5 Mm – 18 Mm | DISPLAY RESOLUTION: | 0.01MM |
| BULIT-IN STANDARD BLOCK: | 4MM | VELOCITY RANGE: | 1000-9999 M/s |
Digital Ultrasonic Thickness Meter, Metal Thickness Gauge,
non destructive testing RTG-510
TECHNICAL DATA
|
DISPLAY
|
128X64 PIXEL LCD WITH BACK LIGHT |
| MEASURMENT RANGE STANDARD |
0.8 mm TO 300 mm IN STEEL DEPENDING OF THE PROBE special request can reach measuring range up to 500mm
|
| THROUGH COATING |
2.5 mm – 18 mm ( DEPNDING OF THE PROBES )
|
| TOLERANCE |
+/-0.05 mm IN STEEL
|
| DISPLAY RESOLUTION |
0.01mm ( Less than 100.0 mm )
0.1mm( over 100 mm )
|
| BULIT-IN STANDARD BLOCK |
4.00 mm
|
| VELOCITY RANGE |
1000-9999 m/s
|
| POWER |
2 EA. 1.2 V AAA BATTERY
|
| OUTSIDE DIMENSION |
149X73X32 mm
|
| WEIGHT |
160 g
|
FEATURES:
- AUTOMATIC SELF CALIBRATION
- COUPLANT INDICATOR
- AUTOMATIC POWER OFF DEVICE IN 5 MINUTES AND MANUAL POWER OFF FUNCTION
- HIGH-LOW LIMIT ALARM
- LCD BRIGHTNESS ADJUST
- THROUGH COATING CAPABILTY
- LOW BATTERY INDICTOR
STANDARD PACKAGE:
- RTG510 MAIN UNIT WITH THOUGH COATING MODE
- HARD CARRING CASE
- COUPLANT BOTTLE
- STANDARD 8 mm, 5 MHz PROBE WITH CABLE ( THROUGH COATING DEVICE)
- Operation manual
- Calibration report
- Packing list
OPTIONAL ACCESSORIES:
- 4 STEP STEEL TEST BLOCK
- 7 STEP METRICS STEEL TEST BLOCK
- 5 MHz, 4 mm CONTACT PROBE
- 10 MHz, 4 mm, CONTACT PROBE
- 5 MHz HIGH TEMPERATURE PROBE
- PROBE CABLES
THICKNESS PROBE EHCO-ECHO RTG500/RTG510
| Photo | Model | Frequency MHz | Probe dia. | Testing range | Min. Pipe dia. | Features |
| PT-06 | 7.5 | 6 | 0.8mm~30mm (steel) | Ф20mm |
For thin pipe wall or small curvature pipe wall measurement |
|
| PT-04 | 10 | 4 | 0.8mm~20mm (steel) | Ф20mm |
For thin pipe wall or small curvature pipe wall measurement |
|
| PT-08 | 5 | 8 | 0.8mm~100mm (steel) | Ф20mm | Normal measurement | |
| ZT-12 | 2 | 12 | 4.0mm~300mm (steel) | Ф30mm |
For thick highly attenuating or highly scattering materials |
|
| PT-12 | 5 | 10 | 1.0mm~200mm (steel) | Ф20mm | Normal measurement | |
| GT-12 | 5 | 10 | 4.0mm~80mm (steel) | Ф20mm |
For high temperature (Lower then 400℃) measurement |
TAG: Ultrasonic through coating thickness meter
