Product Details:

Place of Origin: China
Brand Name: Raytech
Certification: ISO CE
Model Number: RFD-610

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: standard export package
Delivery Time: about 3~5days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500units per month
Detailed Product Description
Product Name: China Manufacturer Digital Portable Handheld Ultrasonic Flaw Detector Automatic Calibration Range: 0~10000mm
Resolution For Scanning: 0.1mm And 1mm D-Delay: -20μs~+3400μs
P-Delay: 0μs~99.99μs Sound Speed: 1000 M/s~15000m/s

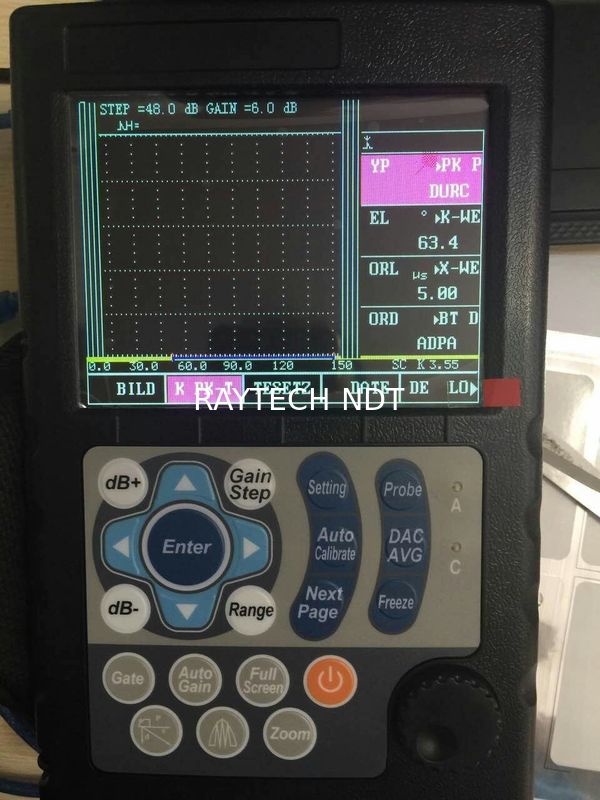

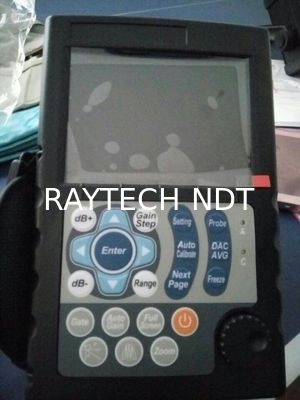

China Manufacturer Digital Portable Handheld Ultrasonic Flaw



Detector Automatic Calibration





China Manufacturer Digital Portable Handheld Ultrasonic Flaw   Detector Automatic Calibration



Performance Features



1.Automated calibration of transducer Zero Offset and/or Velocity ;



2.Automated gain,Peak Hold and Peak Memory;



3.Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,ф);



4.Automated switch three staff gauge ((Depth d,level p,distance s);



5.100 independence setup, any criterion can be input freely, we can work in the scene without



test block;



6.Big memory of 300 A graph.



7.Gate and DAC alarm;Acoustic-Optical alarm;



8.RS232/USB port,communication with pc is easy;



9.The embeded software can be online updated;



10.Li battery, continue working time up to 10 hours;



11.Display freeze;



12.Automated echo degree;



13.Angles and K-value;



14.Lock and unlock function of system parameters;



15.Dormancy and screen savers;



16.Electronic clock calendar ;



17.Two gates setting and alarm indication;



18.High-speed capture and very low noise;



19.DAC,AVG,B Scan ; Solid metal housing ;



20Automated calculate the size of the flaw with w ide bottom type in AVG function.



21.AWS D1.1;



22.6dB DAC functions;



23.Automated make video of test process and play;



24.Provides high contrast viewing of the waveform from bright, direct sunlight to completae



darkness and easy to read from all angles;



25.Powerful pc software and reports can be export to excel;





Measuring Range and Measuring Error



Range of scanning: 0 mm ~10000 mm



Resolution for scanning: 0.1mm (2.5mm ~100mm)



1mm (100 mm ~5000mm)



Range of gain: 0dB ~110 dB



D-Delay: -20μs~+3400μs



P-Delay: 0μs~99.99μs



Sound speed : 1000 m/s~15000m/s



Operation Environment



Temperature: -10℃~50℃



Humidity: 20%~90%RH



Free of strong magnetic field and corrosion.



Power supply



Li battery 7.4V 4800mAh



Overall Dimension and Weight



Overall dimension: 240mm×150mm×50mm



Weight: 1.6kg





Technical Parameters



Designation

Technical Data

Range of scanning (mm)

Range of scanning (mm):0~10000
Steps: 2.5,5,10,20, 30,40,50,60,70,80,90, 100,150,200, 250, 300, 350,400,450,500,600,700,800,900,1000,2000,3000,4000,5000,6000,7000,8000,10000
Adjusting step: 0.1mm(2.5 mm~99.9mm),1mm(100mm~10000mm)

D-delay (ms)

D-delay (ms):-20~+3400
Steps: -20,-10,0.0, 10, 20, 50,100,150,200,250,300,350,400,450,500, 600,
700,800,900,1000,1500,2000,2500,3000,3400.
Adjusting steps: 0.1(-20ms~999.9ms),1(1000ms~3400ms)

P-delay (ms)

P-delay:0.0~99.99
Adjusting steps: 0.01

MTLVEL(m/s)

MTLVEL:1000~15000
7 fixed levels: 2260,2730,3080,3230,4700,5920,6300,12000
Adjusting steps:  1

Working mode

Single probe (receiving and sending), double probe (one for receiving and another for sending), transmission  (transmission probe)

Frequency Range (MHz)

0.5~20

Gain adjustment (dB)

0~120
Adjusting step: 0.0,0.1,0.5,1,2,6,12

Reject

0%~80% of screen height, step: 1%

Vertical linear error

Vertical linear error is not more than 3%

Horizontal linear error

Not more than 0.2% in the scanning range

Sensitivity Leavings

≥62 dB

Dynamic range

≥34dB

Alarm

Three modes, i.e. forbidden wave, loss wave and auto

A-Scan display area

Full screen or local
A-Scan display freezing and de-freezing  A-Scan filling

Data save



300 A-Scan images (including setting of instrument)


Standard communication interface with PC

RS232/USB

Measuring unit

mm/inch

Battery

Li battery 7.4V  4800mAh

Power adaptor

Input 100V~240V/50Hz~60Hz
Output 9VDC/1.5A

Working temperature

-10℃~50℃

Working humidity

20%~90%

Port type

BNC / LEMO

Overall dimension (mm)

240×150×50

Weight (kg)

1.6



Standard Configuration



Designation

Quantity

Main unit

1.5A/9V power adaptor

probe connecting cable

2

Carrying case

1

Instruction manual

Straight probe

10mm 4MHz (One)

Angle probe

8×9 60°4MHz (One)



Options



Designation

Quantit

Serial cable

1 (9 pin)

Communication software for PC

1 set
