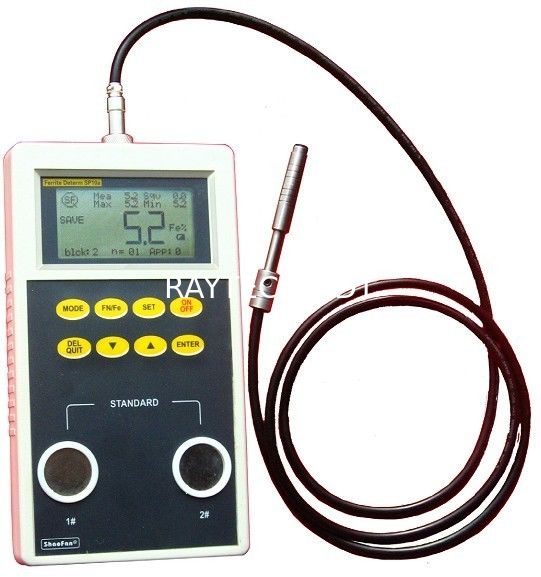

Portable Ferrite Meter, Ferrite Content Testing Machine, Ferrite Content Tester FE100

China Portable Ferrite Meter, Ferrite Content Testing Machine, Ferrite Content Tester FE100 supplier
Portable Ferrite Meter, Ferrite Content Testing Machine, Ferrite Content Tester FE100 supplier Portable Ferrite Meter, Ferrite Content Testing Machine, Ferrite Content Tester FE100 supplier

Large Image :  Portable Ferrite Meter, Ferrite Content Testing Machine, Ferrite Content Tester FE100

Product Details:

Place of Origin: China
Brand Name: Raytech
Certification: ISO CE
Model Number: FE-100

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Carton
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 500units/month
Contact Now
Detailed Product Description
Product Name: Portable Ferrite Meter, Ferrite Content Testing Machine, Ferrite Content Tester Range: 0.1~80%Fe, (0.1~110) WRC-number
Precision: +-2 %( Raneg0.1~30%Fe), +- 3 %( Raneg30~80% Fe) Operating Temperature: 5 ~ 40
Batteries: 9v 6F22 LX WX H: 175 *100* 38mm





Portable Ferrite Meter, Ferrite Content Testing Machine,



Ferrite Content Tester FE100



Portable Ferrite Meter, Ferrite Content Testing Machine, Ferrite Content Tester FE100





1. Preface



In the chemical industry the stress-bearing members of containers,pipes,reactor vessels and



other plant are usually made of austenitic steel or duplex steel or cladding of austenitic chromium-



nickel steel.The residual ferrite content must be within a specific range compatible with the



mechanical strength requirements or the item concerned.



The FE100 was developed to facilitate accurate ferrite content measurements On welded seams



and cladding items. It gives results that match for the standards of GB/T1954-2008,ISO 8249



and ANSI/AWS A4.2.





2. Feature



● LC-display,



● Two display modes (SAVE and FREE).



● Two units — Fe% and FN (WRC number).



● Statistics display together with measurements.



● Built-in Rs-232 interface for printer(Option if need)







3. Technical data



The meter is mainly used for the determination of the ferrite content



of welded austenitic steel or Duplex or cladding of austenitic



chromium-nickel steel weld.





Range



0.1~80%Fe, (0.1~110) WRC-number



Precision



+-2 %( raneg0.1~30%Fe), +- 3 %( raneg30~80% Fe)



Operating

temperature



5 ~ 40



Batteries



9v 6F22



Equivalent

Standard



2



LX WX H



175 *100* 38mm



Accessories

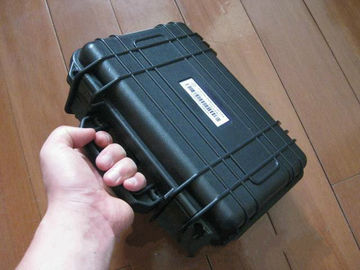

Main unit, probe, two calibration sample piece, carrying-case ,



operating manual, certificate.









TAG: Digital Ferrite Meter
