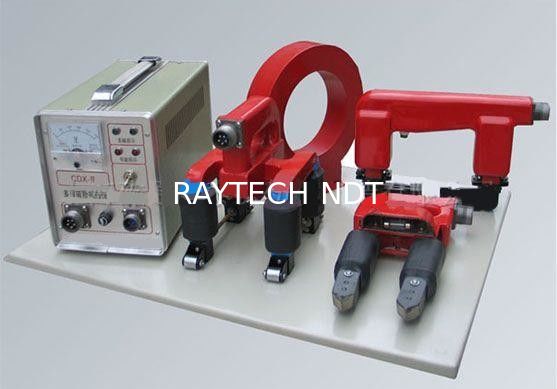

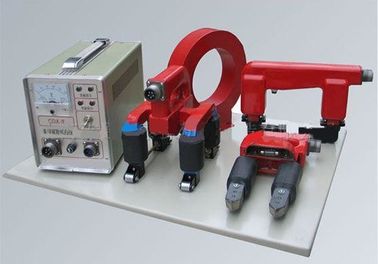

MT Flaw Detector, Magnetic Flaw Detector, Magnetic Particle Testing Instrument

MT Flaw Detector, Magnetic Flaw Detector, Magnetic Particle

Testing Instrument

Usage: For aviation,, space flight, railway, automotive, ship, pressure vessel, mechanical industry etc.


Main specification

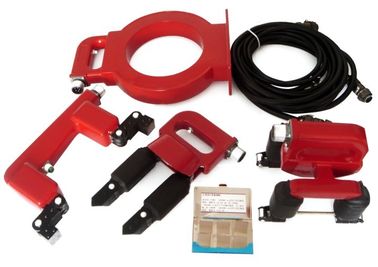

A Probe: It is using to inspect all fillet weld and exterior angle including inside and outside of

huge specimen. Polar distance:20-160; elevating power: AC≥4.

E Porbe: It can meet all of the workpiece can be placed in the circumference to crack detection

and use it to detect fatigue cracks in the workpiece. Meanwhile, demagnetizing specimen also

could do it.  Polar distance: 110, elevating power: AC≥12.5.

D Probe: It equips live joints, which could inspect specimen of plane sharp and find the

defects.Polar distance:60-220, elevating power: AC≥4.5, DC≥18.

O Probe: Inner diameter: 150, Center magnetic≥180Oe. It can meet all of the workpiece

can be placed in the circumference to crack detection and use it to detect fatigue cracks in the

workpiece. Meanwhile, demagnetizing specimen also could do it.

Optional probes
