Magnetic Particle Tesing Machine, MPI, Magnetic Flaw Detector, MT Yoke RCDX-220

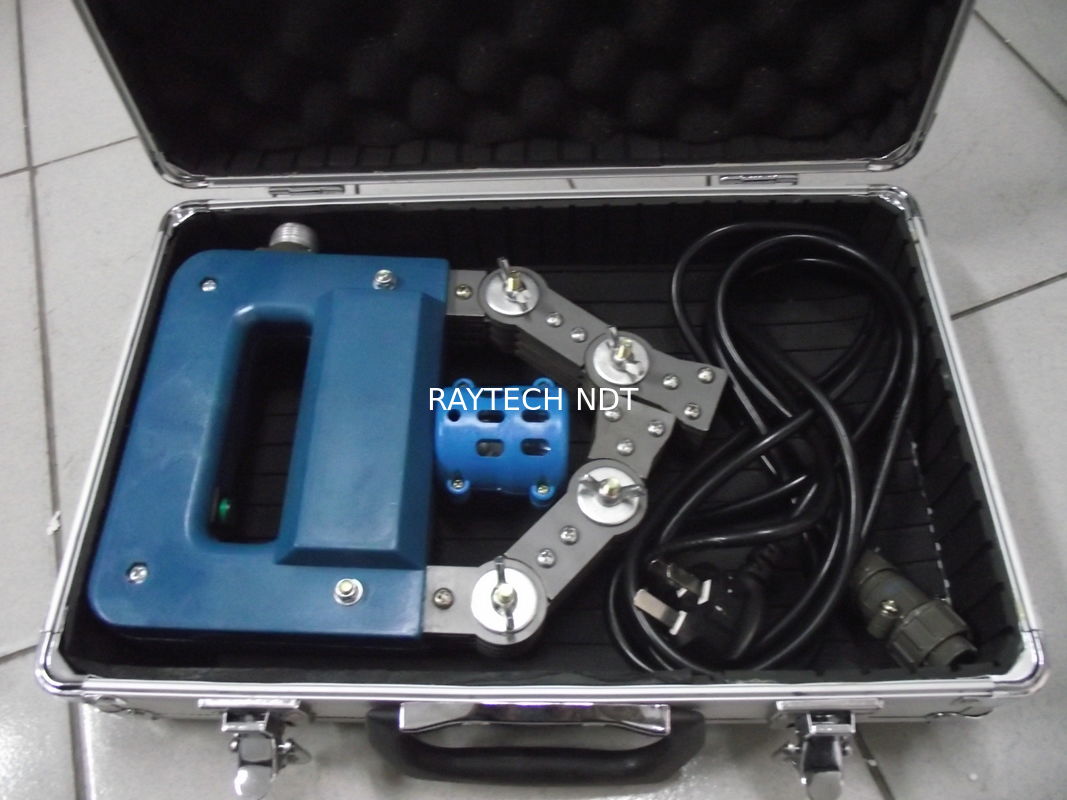

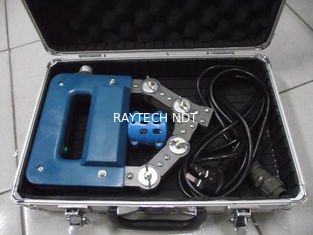

Large Image : Magnetic Particle Tesing Machine, MPI, Magnetic Flaw Detector, MT Yoke RCDX-220

Product Details:

Place of Origin:	China
Brand Name:	Raytech
Certification:	ISO CE
Model Number:	RCDX-220

Payment & Shipping Terms:

Minimum Order Quantity:	1unit
Packaging Details:	Standard Export Carton
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	500units/month

Contact Now

Detailed Product Description

Product Name:	Magnetic Particle Tesing Machine, MPI, Magnetic Flaw Detector, MT Yoke	Charging Power Supply:	220V 50Hz
Operating Current:	AC1.4A	Magnetic Electrode Distance:	0~200mm
Probe Weight:	3.1kgs	Outline Dimension(㎜):	208×52×146

Magnetic Particle Tesing Machine, MPI, Magnetic Flaw

Detector, MT Yoke RCDX-220

Magnetic Particle Tesing Machine, MPI, Magnetic Flaw Detector, MT Yoke RCDX-220

Technical Parameters

Model parameters		RCDX-220 Magnetic Yoke Flaw Detector	RCDX-220AC/DC Magnetic Yoke Flaw Detector
Power supply		/	110/220V 50Hz 12V
Charging power supply		220V 50Hz	110/220V 50Hz
Using battery		/	MF12—7.2AH
Operating current		AC1.4A	AC1.4A DC1.7A
Charging time		/	8~15h
Battery life		/	More than 6 hours
Working interval		1 minute switch on 1 minute off	1 minute switch on 1 minute off
Magnetic electrode distance		0~200mm	0~200mm
Lifting power	A C	>5.5kg	>5.5kg
Lifting power	D C	/	>26kg
Weight	Probe	3.1kg	3.1kg
Weight	Battery package	/	2.9kg
Outline dimension(㎜)	Probe	208×52×146	208×52×146
	Battery package	/	160×70×100
	Charger	/	75×50×40

TAG: Magnetic Yoke Flaw Detector
