Porosity Detectors, Digital Portable Holiday Detector, detect range:30um~1mm, RHD-20

Certification
Good quality Portable Hardness Tester for sales
Good quality Portable Hardness Tester for sales
Easy to talk with, very professional and fast service, the quality is super good.

—— Ali Sharif

I'm Online Chat Now

Porosity Detectors, Digital Portable Holiday Detector, detect range:30um~1mm, RHD-20

China Porosity Detectors, Digital Portable Holiday Detector, detect range:30um~1mm, RHD-20 supplier
Porosity Detectors, Digital Portable Holiday Detector, detect range:30um~1mm, RHD-20 supplier Porosity Detectors, Digital Portable Holiday Detector, detect range:30um~1mm, RHD-20 supplier Porosity Detectors, Digital Portable Holiday Detector, detect range:30um~1mm, RHD-20 supplier Porosity Detectors, Digital Portable Holiday Detector, detect range:30um~1mm, RHD-20 supplier Porosity Detectors, Digital Portable Holiday Detector, detect range:30um~1mm, RHD-20 supplier

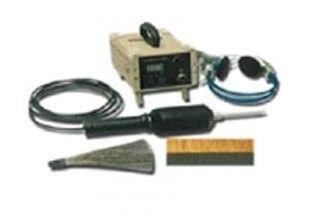

Large Image :  Porosity Detectors, Digital Portable Holiday Detector, detect range:30um~1mm, RHD-20

Product Details:

Place of Origin: China
Brand Name: RAYTECH
Certification: ISO CE
Model Number: RHD-20

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Standard export carton, 40*47*22cm
Delivery Time: 5days
Payment Terms: Western Union, T/T
Supply Ability: 500units/month
Detailed Product Description
Product Name: Porosity Detectors, Digital Portable Holiday Detector, Detect Range:30um~1mm, RHD-20 Model Name: RHD-20
Detector Range: 30um~1mm Output Voltage: 600V~8000V
Display: LCD Net Weight: 2.2kgs



Porosity Detectors, Digital Portable Holiday Detector,



detect range:30um~1mm, RHD-20


Porosity Detectors, Digital Portable Holiday Detector, detect range:30um~1mm, RHD-20

Porosity Detectors, Digital Portable Holiday Detector, detect range:30um~1mm, RHD-20

RHD-10/20 Porosity Detectors are employed in the non-destructive detection and location of

pinholes, bare spots or thin points in protective coatings applies for corrosion protection over

metal and concrete (conductive) surfaces.

With corrosion an extremely costly and disruptive worldwide problem, preventative determination

becomes essential.

For newly constructed tanks, pipelines and other installations, where corrosion prevention

coatings have had to be applies, specifications will normally call for a specific coating to a

specific thickness. By using a our Detector to verify the competency of the sealing coatings, the

contractor can be assures that his coatings responsibility has been met. In terms of cost

effectiveness, with the low capital and operating costs of the Detector, the contractor will have

some protection from claims at a very low price.


Technical specifications



RHD-20 MODE Parameter RHD-10 MODE Parameter
Detector range 30um~1mm Detector range 0.05mm~10mm
Output voltage 600V~8000V Output voltage 0.6KV~30KV
DC power supply 12V DC power supply 12V
LCD display support LCD display support
Weight 2.2kg Weight 2.2kg
Dimensions 130*88*220mm Dimensions 130*88*220mm

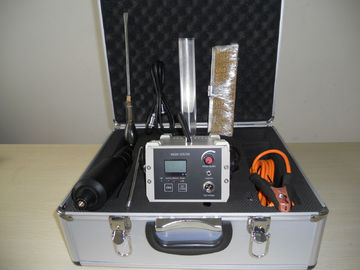

Standard delivery


Item Qty Item Qty
Detector unit 1 Fuse 2
Probe Handle 1 Charger 1
Flat brush 1 Kit case 1
Pen brush 1 Instruction manual 1
Connector for brushes 1 Warranty card 1



Porosity Detectors, Digital Portable Holiday Detector, detect range:30um~1mm, RHD-20

Tag: Holiday detectors   Porosiy Detector     Coating Testing Machine
