Home ProductsPortable Hardness Tester

Hardness meter, Digital Portable hardness tester, Metal hardness measurement RH-140

Certification
Good quality Portable Hardness Tester for sales
Good quality Portable Hardness Tester for sales
Easy to talk with, very professional and fast service, the quality is super good.

—— Ali Sharif

I'm Online Chat Now

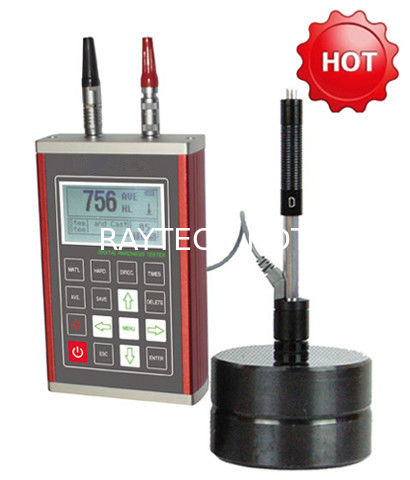

Hardness meter, Digital Portable hardness tester, Metal hardness measurement RH-140

China Hardness meter, Digital Portable hardness tester, Metal hardness measurement RH-140 supplier
Hardness meter, Digital Portable hardness tester, Metal hardness measurement RH-140 supplier Hardness meter, Digital Portable hardness tester, Metal hardness measurement RH-140 supplier

Large Image :  Hardness meter, Digital Portable hardness tester, Metal hardness measurement RH-140

Product Details:

Place of Origin: China
Brand Name: Raytech
Certification: ISO CE
Model Number: RH-140

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: standard export package
Delivery Time: about 3~5days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Hardness Meter, Digital Portable Hardness Tester, Metal Hardness Measurement RH-140 Display: LCD Display Of 128×64 Matrix
Impact Device: D Type Memory: Max 600 Groups
Work Voltage: 3V( 2 AA Alkaline Batteries) Interface Port: RS232





Hardness meter, Digital Portable hardness tester,



Metal hardness measurement RH-140





Portable hardness tester





Features:



1.LCD display of 128×64 matrix.



2.Using the D high precision impact device



3.Converts to all common hardness scales(HV ,HB,HRC,HRB,HRA,HS).



4.English displaying and menu operating, the operation is easy and convenient.



5.Hermetically sealed metal shell, solid and durable, has excellent resistance to vibration, shock



and electromagnetic interference ability.



6.With USB2.0 interface, multiple communication modes are adopted to meet customized



requirements of various users.



7.Equipped with a data processing software, through the USB interface, can exchange data with



computer printing and parameter setting



8.Equipped with 7 types of impact devices which need not to be recalibrated when changing



them, the system can identify the type of impact device automatically.



9.Max 600 groups(impact times:32~1)of data can be stored at internal non volatile data



storage.



10.Upper and lower limit of hardness can be preset; When the tested value exceeds the limits,



alarm will send out automatically to make convenient for the requirements of batch



measurements.



11.Back light display has been used to make convenient for the use in poor light.



12.Test values software calibration function.



13.Material of “cast steel” is added; HB values can be read out directly when D/DC impact



device is used to measure “cast steel” work piece.



14.Printer be separated from main unit and copies of testing results can be printed as required.



15.Power is two of AA battery. Continuous working period: approx. 200 h (no back light on).



16.Software of PC can be installed according to the requirements of user, the function will be



more powerful to satisfy the more strict demands of quality control and management.



17.Failure analysis of pressure vessel, steam turbo-generator set and other equipment.



18.Narrow testing space where work piece installed.





Main Application:



1.The assembled machinery and permanently installed parts



2.Die cavity of molds



3.Heavy work piece





4.Bearings and other parts



5.Cases which require the test result with normalized original recording



6.Material identification of the metal material warehouse



7.Quick tests of large range and multipoint measuring positions for heavy



8.Workpiece.





Specification:





RH-140

Testing material

Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel



Measuring range (um)



HLD(170-960), (19-651)HB,(13-100)HRB,(17-68.5)HRC,(59-85)HRA,(80-976)HV, (30~110)HS



Sample length (mm)



HL, HB, HRB, HRC, HRA, HV, HS.



Impact Directions



360°



Display



128*64 digital matrix LCD



Memory



100-max 600group(32 every group)



Work voltage



3V( 2 AA alkaline batteries)



Interface port



RS232



Dimensions



125mm*71mm*27mm



Weight (Host)



0.4kg



Continuous work time



200 hours (with backlight off)





standard configuration:





No.

Item

Quantity

Standard
Configuration

1

Main body



2

D type impact device



3

Test block with HLD value



4

Cleaning brush (I)

1



5

Instruction manual

1



6

Warranty card

4



7

Small supporting ring

1



8

Screwdriver

1



9

Certificate of conformity

1



10

 Instrument box

1



11

5 alkaline battery

2



1

Other types of impact devices

1

Optional Configuration

2

Other types of support ring

1



3

Other types of impact ball/body

7



4

Mini-printer

1



5

Data processing software

1



6

Connecting line

1





TAG: Portable hardness tester    Digital Hardness Meter   Hardness Measure
