Ultrasonic Thickness Gauge Meter, Ultrasonic pipe thickness gauge, ndt thickness gauge RTG900

China Ultrasonic Thickness Gauge Meter, Ultrasonic pipe thickness gauge, ndt thickness gauge RTG900 supplier
Ultrasonic Thickness Gauge Meter, Ultrasonic pipe thickness gauge, ndt thickness gauge RTG900 supplier Ultrasonic Thickness Gauge Meter, Ultrasonic pipe thickness gauge, ndt thickness gauge RTG900 supplier Ultrasonic Thickness Gauge Meter, Ultrasonic pipe thickness gauge, ndt thickness gauge RTG900 supplier Ultrasonic Thickness Gauge Meter, Ultrasonic pipe thickness gauge, ndt thickness gauge RTG900 supplier Ultrasonic Thickness Gauge Meter, Ultrasonic pipe thickness gauge, ndt thickness gauge RTG900 supplier

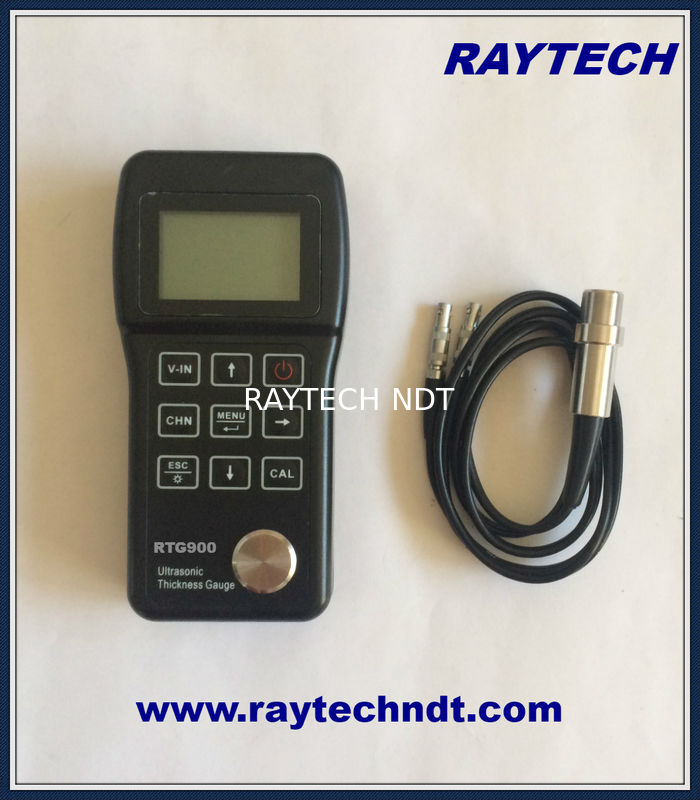

Large Image :  Ultrasonic Thickness Gauge Meter, Ultrasonic pipe thickness gauge, ndt thickness gauge RTG900

Product Details:

Place of Origin: China
Brand Name: RAYTECH
Certification: ISO CE
Model Number: RTG900

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: standard export package
Delivery Time: about 3~5days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500units per month
Detailed Product Description
Product Name: Ultrasonic Thickness Gauge Meter, Ultrasonic Pipe Thickness Gauge, Ndt Thickness Gauge RTG900 Measurement Range: 0.65~300mm
Display Resolution: 0.01mm,0.1mm Material Velocity: 508 ~ 9999m / S
Surface Measurement Limit: Φ10mm × 2.0mm Display: 128 × 64 Dot Matrix LCD Screen

Ultrasonic Thickness Gauge Meter, Ultrasonic pipe thickness gauge, ndt thickness gauge RTG900

Ultrasonic Thickness Gauge Meter, Ultrasonic pipe thickness gauge, ndt thickness gauge RTG900

Application Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing. Materials measured: 11 types of materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron

Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials. Transducer models are available for special application, including for coarsegrain material and high temperature applications. Two-Point Calibration function. Two work modes: Single point mode and Scan mode. Coupling status indicator showing the coupling status.

High resolution measurement
Probe automatic zero calibration for system error correction
Capture the value of the minimum thickness.
Status indicator of the coupling and low battery.
Auto sleep and auto power off function to conserve battery life.
Humanized shape design, compact and portable, Can be used in harsh environment.

Specifications
1.Measuring range: 0.65 ~ 300mm (steel probe segmented applicable)
2.Display resolution: 0.01mm, 0.1mm
3.Material Velocity: 508 ~ 9999m / s
4.Accuracy: ± (1% H +0.1) mm
5.Surface measurement limit: Φ10mm × 2.0mm
6.Receive Bandwidth: 1MHz ~ 10MHz (-3dB)
7.Power supply: 3VDC (two AA alkaline batteries)
8.Working time: 280 hours (automatic mode)
100 hours (back-light on)
9.Display: 128 × 64 dot matrix LCD screen
10.Dimensions: 140 (L) × 80 (W) × 40 (H) mm
11.Weight: 176g (with battery)
12.Working temperature: -10 ~ 50 ℃ (using the temperature probe, the working temperature: <500 ℃)
13.Humidity: 20% ~ 90% RH

Configuration

  No Item Quantity Note

Standard
Configuration

1 Main body 1
2 Transducer 1
3 Couplant 1
4 Instrument Case 1
5 Operating Manual 1
6 Alkaline battery 2 AA size
7
8
Optional Configuration 9 Transducer: 2MHz,Ф12mm
10 Transducer: 5MHz,Ф8mm
11 Transducer: 5MHz,Ф12mm
12 Transducer: 7MHz,Ф6mm
13
14


Appendix A: Transducer Selection

Option accessories:

probe Specification Range Temperature
Ordinary 5MHz,Ф10mm 1~200mm -10~50℃
ZS5P (high temperature) 5MHz,Ф12mm 4~80mm -10~50℃
Micro Dia. Type 7MHz,Ф6mm 0.65 ~ 100mm (mainly for pipe) -10~50℃
Cast Iron Type 2MHФ12mmor Ø22mm 3 ~ 50mm -10~50℃
wide range probe 2MHz,Ф20mm 3 ~ 500mm -10~50℃
Coupling agent 50g Suitable for ZS5P probe -10~500℃


Appendix B: Sound Velocities



material velocity (m/s) material velocity(m/s)
Water(20℃) 1480 Stainless steel (304) 5720
Glycerol 1920 Brass 4640
Water glass 2350 Copper 4700
Nylon 2620 Glass 5440
Acetate resin 2670 Nickel 5630
Acrylic acid (s) Resin 2730 Steel 330 5600
Tin 3230 Steel 4330 5850
Gold 3240 Steel,Iron 5900
Phosphor bronze 3530 titanium 6070
Silver 3600 Magnesium 6310
Zinc 4170 Aluminum 6300


TAG :   Ultrasonic Thickness Gauge     Digital Ultrasonic Thickness Gauge     Portable Ultrasonic Thickness Gauge
