0-1500µm Coating Thickness Gauge, coating thickness measurement instruments RTG-8102
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | 0-1500µm Coating Thickness Gauge, Coating Thickness Measurement Instruments RTG-8102 | Probe Type: | Build-in Probe |
|---|---|---|---|
| Measure Range: | 0~1500um | Power Supply: | 4 * AA Batteries |
| Minimum Measurement Area: | 5mm | Size: | 126 X 69 X 35mm |
0-1500µm Coating Thickness Gauge, coating thickness measurement instruments RTG-8102
Product Description
| Measuring Range | 0-1500µm (0-1.5mm) or 0-60mil | Resolution | 0.1µm (0-99.9 µm) and 1µm (over 100 µm) |
| Color | Blue ,Black ,Red ,Yellow | Application | measuring coating thickness |
| Accuracy | ±1-2% H H: coating thickness |
Certification | CE, RoHS |
| Power supply | 2 x 1.5V AA Batteries or USB | Warranty | 1 years |
| Item Name | coating thickness gauge | Minimum Measurement Area | 5mm |
| Minimum Sample Thickness | 0.3mm | MOQ | 1 Piece |
| Model Number | RTG-8102 | Operating Conditions | Temp: -10 - 50ºC and Humidity: < 85% |
| Weight | 97g ( including batteries) | Dimensions | 126 x 69 x 35mm |
Application:
This model includes two functions, F and N.
1. F function can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)
2. N function can measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)
Features
- Single-point or two-point method could be used to correct probe system deviation, in order to ensure the accuracy of the device in the process of measuring.
- Power voltage indicator. supply by USB 5V or 2 AA batteries (AA)
- Speaker beeps while operating.
- Power-off automatically when idle; manually power-off available.
- Negative display function to ensure the accuracy of zero point calibration.
- Ultra-low power consumption, less than 10 μA in standby mode.
- Operation method: Graphic menu button operation
- Human-computer interaction: buttons, backlight dot matrix screen, light, buzzer
- Data transfer: USB, Bluetooth
- PC software: Windows PC, Android App , iOS App

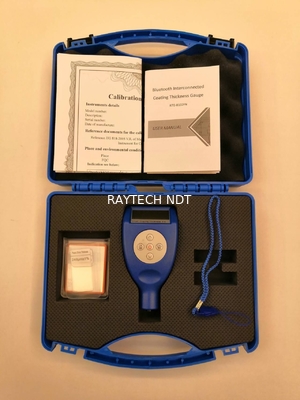

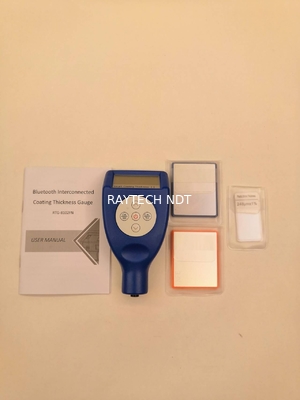

Product Accessories:
|
Standard Accessories |
Main Unit |
| Calibration Foils | |
| Substrate ( Iron ) | |
| Substrate ( Aluminum ) | |
| Carrying Case | |
| Operation Manual | |
| Optional Accessories | USB data output |
| Bluetooth data output |
