Product Details:
Payment & Shipping Terms:
|
Product Name: | Pen Type Vibration Meter, Vibration Pen, Portable Vibration Meter, Digital Vibration Tester | Measurement Parameter: | Displacement Peak_Peak (micron) |
---|---|---|---|
Range: | 1~1999 Micron | Accuracy: | ±5% ± 2 Digits |
Display: | 4 Digits LCD, Refresh Interval About 0.5 Second | Power Supply: | 1/2 AA, 3.6V, Operation Current 4-7mA |

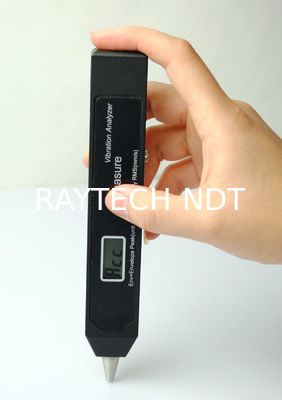

Pen Type Vibration Meter, Vibration Pen, Portable Vibration
Meter, Digital Vibration Tester
Features:
Extremely reliable and potable, low cost instrument specifically designed for on site maintenance in your plant or workshop. It measures overall vibration level by Displacement Peak_Peak. This easy to use instrument equires little operator training.
It features with one-button operation, holding function and automatic power off.
With remote switch and magnet base to avoid handheld problem, get reliable and consistent data.
Specifications:
Measurement parameter |
Displacement Peak_Peak (micron) |
Range |
1~1999 micron |
Accuracy |
±5% ± 2 digits |
Frequency response |
10Hz < f < 1000Hz, ±10% |
Display |
4 digits LCD, refresh interval about 0.5 second |
Power supply |
1/2 AA, 3.6V, Operation Current 4-7mA |
Battery capacity |
>100 hours continuously or 4000 times measurement |
Operation environment |
Operation Temperature: 0oC~50 oC; Relative humidity: < 85% |
Dimensions |
160mm x 25mm x 17mm (WxDxH) |
Weight |
120g (include batteries) |
Case Material |
Aluminum |

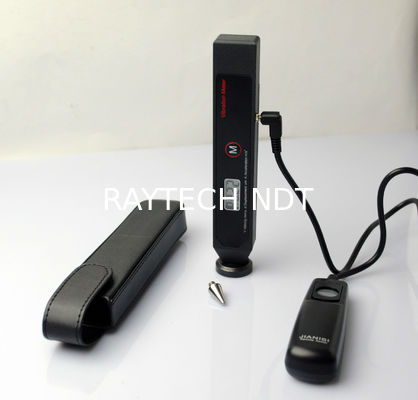

Standard delivery:
Vibration meter
Small pocket bag
Remote switch
Magnet base
User’s Manual
Battery (Inside meter)
Certificate
TAG: Vibration Tester Pocket Size Vibration Meter
