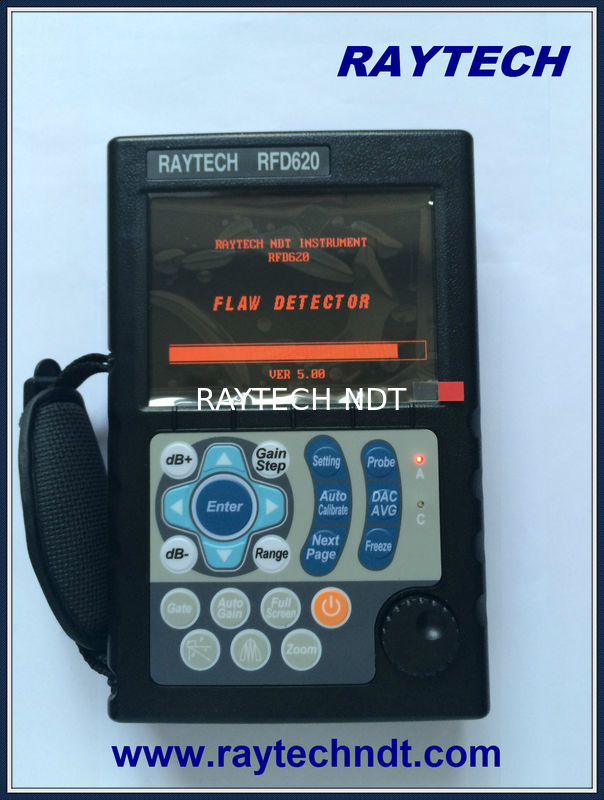

Portable Ultrasonic Flaw Detector with Measurement Range 0 to 10000

China Portable Ultrasonic Flaw Detector with Measurement Range 0 to 10000 supplier
Portable Ultrasonic Flaw Detector with Measurement Range 0 to 10000 supplier Portable Ultrasonic Flaw Detector with Measurement Range 0 to 10000 supplier Portable Ultrasonic Flaw Detector with Measurement Range 0 to 10000 supplier Portable Ultrasonic Flaw Detector with Measurement Range 0 to 10000 supplier Portable Ultrasonic Flaw Detector with Measurement Range 0 to 10000 supplier Portable Ultrasonic Flaw Detector with Measurement Range 0 to 10000 supplier

Large Image :  Portable Ultrasonic Flaw Detector with Measurement Range 0 to 10000

Product Details:

Place of Origin: China
Brand Name: RAYTECH
Certification: ISO CE
Model Number: RFD620

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Price: contact us
Packaging Details: standard export package
Delivery Time: about 3~5days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500units per month
Detailed Product Description
Product Name: Portable Ultrasonic Flaw Detector With Measurement Range 0 To 10000 Measuring Range(mm): 0 ~ 10000
Measurement Mode: Single,Dual,Thru Port Type: BNC
Gain(dB): 0~120 Weight(kg): 1.0(with Battery)

Portable Ultrasonic Flaw Detector with Measurement Range 0 to 10000



Description:



Automated calibration,Automated gain



★ DAC,AVG,TCG,B scan,AWS

★ High-speed capture and very low noise

★ Solid metal housing

★ high contrast viewing of the waveform from bright

★ Powerful pc software and reports can be export to excel



Features:



1.Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB);

2.Automated switch three staff gauge ((Depth d,level p,distance s);

3.Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity;

4.Convenient to make and use DACTCG and AVG to evaluate the echo, the curve can be modified and compensated

5. 6dB DAC functions;

6.Standards of test for DAC is saved.

7. 300 independence setup, any criterion can be input freely, we can work in the scene without test

block;

8.Big memory of 800 A graph

9.Automated gain and gain scan;

10.Peak Hold and Peak Memory;

11.B scan;

12.AWS D1.1

13.Automated make video of test process and play; use upan,the length of video is unlimited.

14.Powerful pc software and reports can be export to excel;

15.Li battery, continue working time up to 12 hours;

16.The embeded software can be online updated;



Other assistant function



Display freeze;

Automated echo degree;

Angles and K-value;

Lock and unlock function of system parameters;

Electronic clock calendar ;

Two gates setting and alarm indication;

Gate and DAC alarm;



Specifications



Title Parameter Title Parameter
Measuring Range(mm) 0 ~ 10000 Measurement Mode Single,Dual,Thru
Vertical Linearity Error ≤3% Reject 0~80%
Horizontal Linearity Error ≤0.1% Pulse Displacement(μs) -20 ~ +3400
Sensitivity Leavings ≥62dB Zero(μs) 0.0 ~ 99.99
Dynamic range ≥32dB Port Type BNC(Q9)
Resolving Power ≥36dB Operating Temperature (℃) -20~50
Frequency Range(MHz) 0.5 ~ 20 H×W×D(mm) 240×156×48
Gain(dB) 0 ~ 120 Weight(kg) 1.0(with battery)
Material Velocity(m/s) 1000 ~ 15000

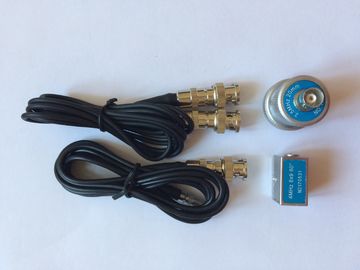

Standard Configuration







Name QTY
1 Main unit 1
2 power adaptor 1
3 probe connecting cable 2
4 Instrument case 1
5 Instruction manual 1
6

Straight probe

20mm 2.5MHz

1
7 Angle probe 8x9 60°4MHz 1
8 Certificate of approval 1
9 Warranty card 1
10 Software and cable 1



































Portable Ultrasonic Flaw Detector with Measurement Range 0 to 10000

Portable Ultrasonic Flaw Detector with Measurement Range 0 to 10000
