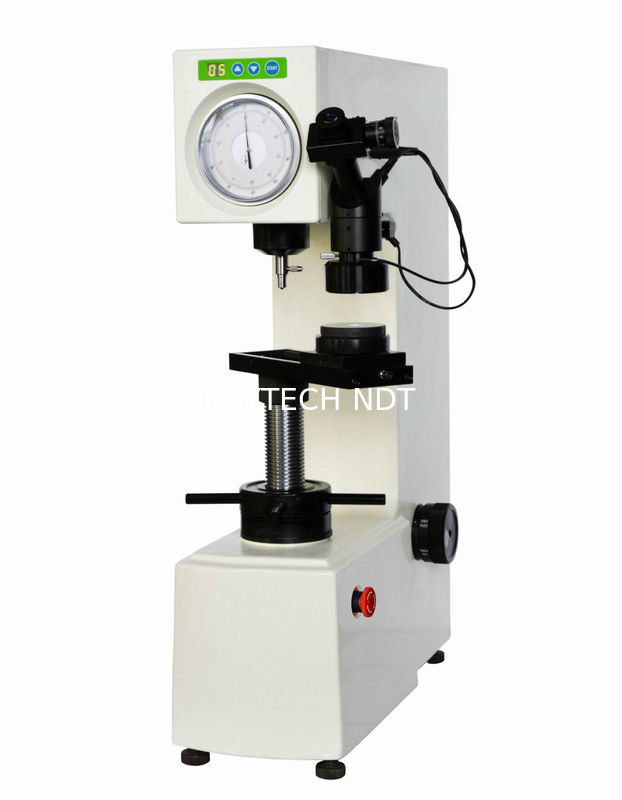

Brinell Rockwell Vickers Hardness Tester HBRV-187.5, multi-functional hardness tester

China Brinell Rockwell Vickers Hardness Tester HBRV-187.5, multi-functional hardness tester supplier
Brinell Rockwell Vickers Hardness Tester HBRV-187.5, multi-functional hardness tester supplier Brinell Rockwell Vickers Hardness Tester HBRV-187.5, multi-functional hardness tester supplier

Large Image :  Brinell Rockwell Vickers Hardness Tester HBRV-187.5, multi-functional hardness tester

Product Details:

Place of Origin: CHINA
Brand Name: RAYTECH
Certification: ISO CE
Model Number: HBRV-187.5

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Carton
Delivery Time: 5~8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Brinell Rockwell Vickers Hardness Tester HBRV-187.5, Multi-functional Hardness Tester Rockwell Test Force: 60-150kgf
Brinell Test Force: 30-187.5kgf Vickers Test Force: 30-100kgf
Magnification: Brinell: 37.5×, Vickers: 75× Resolution: Rockwell: 0.5HR, Brinell: 4μm, Vickers: 2μm



Brinell Rockwell Vickers Hardness Tester HBRV-187.5,



multi-functional hardness tester



Brinell Rockwell Vickers Hardness Tester HBRV-187.5, multi-functional hardness tester





Brinell Rockwell Vickers Hardness Tester HBRV-187.5, multi-functional hardness tester

Brinell Rockwell Vickers Hardness Tester HBRV-187.5, multi-functional hardness tester

Brinell Rockwell Vickers Hardness Tester HBRV-187.5, multi-functional hardness tester



Main Function:



HBRV-187.5 Brinell Rockwell & Vickers hardness tester is a multi-functional hardness tester with



Brinell, Rockwell &Vickers three test modes and 7 level of test forces, which can test several



kinds of hardness. Test force loading, dwell, unload adopts automatic system, widely used and



easy to operate, therefore it is the popular machine for industrial enterprises and scientific



research institutes.



Application range:



Suitable for hardened and surface hardened steel, hard alloy steel, casting parts, non-ferrous



metals, various kinds of hardening and tempering steel and tempered steel, carburized steel



sheet, soft metals, surface heat treating and chemical treating materials etc.



Technical Specification:



Model



HBRV-187.5



Rockwell Test Force



60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)



Brinell Test Force



30kgf (294.2N), 31.25kgf (306.5N), 62.5kgf (612.9N), 100kgf (980.7N), 187.5kgf (1839N)



Vickers Test Force



30kgf (294.2N), 100kgf (980.7N)



Indenter



Diamond Rockwell Indenter, Diamond Vickers Indenter,



ф1.588mm, ф2.5mm, ф5mmBall Indenter



Hardness Reading



Rockwell: Dial, Brinell & Vickers: Check Hardness Table



Magnification



Brinell: 37.5×, Vickers: 75×



Resolution



Rockwell: 0.5HR, Brinell: 4μm, Vickers: 2μm



Dwell Time



2~60s



Max. Height of Specimen



Rockwell: 175mm, Brinell: 100mm, Vickers: 115mm



Throat



165mm



Power Supply





AC220V,50Hz



Execute Standard



ISO 6508,ASTM E-18,JIS Z2245,GB/T 230.2

ISO 6506,ASTM E10-12,JIS Z2243,GB/T 231.2

ISO 6507,ASTM E92,JIS Z2244,GB/T 4340.2



Dimension



520×240×700mm,Packing Dimension: 650×370×950mm



Weight



Net Weight: 80kg,Gross Weight: 105kg







Packing List:





Name



Qty Name Qty



Instrument Main Body



1 set Diamond Rockwell Indenter 1 pc



Diamond Vickers Indenter



1 pc ф1.588mm, ф2.5mm, ф5mmBall Indenter each 1 pc



Slipped Test Table



1 pc Middle Plane Test Table 1 pc



Large Plane Test Table



1 pc V-shaped Test Table 1 pc



15× Digital Measuring Eyepiece



1 pc 2.5×, 5× Objective each 1 pc



Microscope System (include the inside light and outside light)

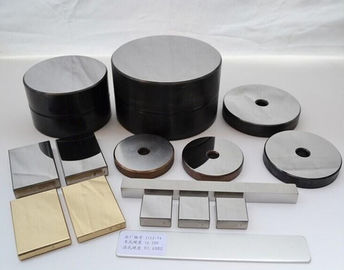

1 set Hardness Block 150~250 HBW 2.5/187.5 1 pc



Hardness Block 60~70 HRC



1 pc Hardness Block 20~30 HRC 1 pc



Hardness Block 80~100 HRB



1 pc Hardness Block 700~800 HV30 1 pc



Weights 0, 1, 2, 3, 4



5 pcs Power Cable 1 pc



Fuse 2A



2 pcs Horizontal Regulating Screw 4 pcs



Level



1 pc Spanner 1 pc



Screw Driver



1 pc Anti-dust Cover 1 pc



Usage Instruction Manual



1 copy
