No need Power Supply Manual Loading Superficial Rockwell Hardness Tester HRM-45

China No need Power Supply Manual Loading Superficial Rockwell Hardness Tester HRM-45 supplier
No need Power Supply Manual Loading Superficial Rockwell Hardness Tester HRM-45 supplier No need Power Supply Manual Loading Superficial Rockwell Hardness Tester HRM-45 supplier

Large Image :  No need Power Supply Manual Loading Superficial Rockwell Hardness Tester HRM-45

Product Details:

Place of Origin: CHINA
Brand Name: RAYTECH
Certification: ISO CE
Model Number: HRM-45

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Carton
Delivery Time: 5~8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: No Need Power Supply Manual Loading Superficial Rockwell Hardness Tester HRM-45 Initial Test Force: 3kgf (29.42N)
Total Test Force: 15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N) Indenter: Diamond Rockwell Indenter, ф1.588mmBall Indenter
Loading Method: Manual Resolution: 0.5HR

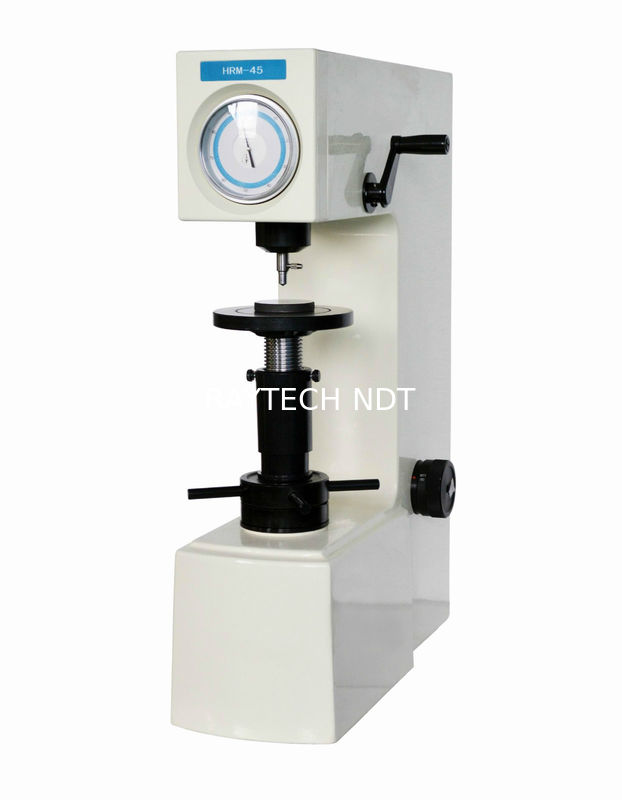

No need Power Supply Manual Loading Superficial Rockwell



Hardness Tester HRM-45



Superficial Rockwell Hardness Tester





Main Function:



HRM-45 Superficial Rockwell hardness tester is a popularly-used hardness testing instrument to measure



the superficial Rockwell hardness of the materials. No need for power supply, the speed of the test force



loading is regulated by the buffer and the test force is regulated by the load-change hand wheel. It has



easy operation and stable performance, therefore it is widely used.



Application range:



Suitable for surface quenched steel, surface heat treating and chemical treating materials, copper alloy,



aluminum alloy, sheet, zinc layers, chrome layers, tin layers, bearing steel and cold and hard casting etc.



Technical Specification:





Model



HRM-45



Initial Test Force



3kgf (29.42N)



Total Test Force



15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N)



Indenter



Diamond Rockwell Indenter, ф1.588mmBall Indenter



Loading Method



Manual



Hardness Reading



Dial



Resolution



0.5HR



Max. Height of Specimen



175mm



Throat



165mm



Execute Standard



ISO 6508,ASTM E-18,JIS Z2245,GB/T 230.2



Dimension



520×245×700mm,Packing Dimension: 650×370×950mm



Weight



Net Weight: 73kg,Gross Weight: 100kg




Packing List:





Name



Qty Name Qty



Instrument Main Body



1 set Diamond Rockwell Indenter 1 pc



ф1.588mmBall Indenter



1 pc Middle Plane Test Table 1 pc



Large Plane Test Table



1 pc V-shaped Test Table 1 pc

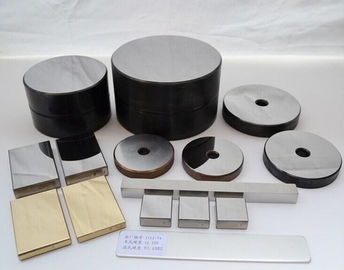

Hardness Block 70~85 HR30T



1 pc Hardness Block 80~90 HR15N 1 pc



Hardness Block 65~80 HR30N



1 pc Weight A, B, C 3 pcs



Anti-dust Cover



1 pc Usage Instruction Manual 1 copy
