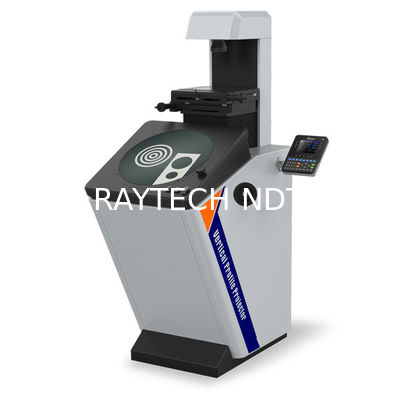

Ø400mm Digital Vertical Profile Projector, Table type Profile Projector RPV410-2010

China Ø400mm Digital Vertical Profile Projector, Table type Profile Projector  RPV410-2010 supplier
Ø400mm Digital Vertical Profile Projector, Table type Profile Projector  RPV410-2010 supplier Ø400mm Digital Vertical Profile Projector, Table type Profile Projector  RPV410-2010 supplier

Large Image :  Ø400mm Digital Vertical Profile Projector, Table type Profile Projector RPV410-2010

Product Details:

Place of Origin: China
Brand Name: Raytech
Certification: CE ISO
Model Number: RPV410-2010

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Package
Delivery Time: 5~8working days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Digital Vertical Profile Projector, Table Type Profile Projector Table Size: 308x408mm
Glass Table Size: 198x306mm XY Travel Range: 200x100mm
Z Travel Range: 100mm Resolution: 0.001 Mm







Ø400mm Digital Vertical Profile Projector, Table type Profile



Projector RPV410-2010



profile projector

Digital Vertical Profile Projector, Table type Profile Projector

Digital Vertical Profile Projector, Table type Profile Projector

Digital Vertical Profile Projector, Table type Profile Projector



Features:



● The lifting system adopts cross roller rail and precision screw drive, which makes lifting drive



more comfortable and stable;



● Coating process reflector, clearer image and great dustproof;


● Adjustable contour and surface illumination, to meet with difference workpiece demand;


● Imported high light and long using life LED illumination ,to ensure precision measurement demand;


● High resolution optical system with clear image and magnification error is less than 0.08%;


● Powerful Bi-axial fan cooling system,highly increase using life;

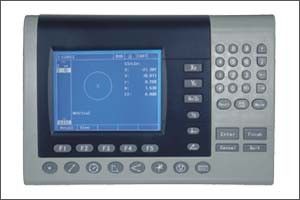

● Powerful and colorful DRO DP400,realized fast and accurate 2D Measurement;


● Built-in Mini-printer, can print and save data;


● With standard 10X objective, optional 5X,20X,50X objective,rotary table, foot switch ,clamp, etc.





Specification:



Model

RPV410-2010

Code#

#511-440

Table Size

308x408mm

Glass Table Size

198x306mm

XY Travel Range

200x100mm

Z Travel Range 100mm
Accuracy ≤3+L/200(um)
Resolution 0.001 mm
Max. Workpiece Load 10Kg
Screen Effective Diameter:φ412mm ≥ Ø400mm
Screen rotation 0~360° ; Resolution: 1’or 0.01°, accuracy: 6’
Digital Readout DP400 (510-340)powerful digital readout
Illumination Transparent:3.2V/10W LED; Reflected illumination :3.2V/10W LED
Operating Environment 20℃±5℃,RH 40%-70%RH
Power AC110V/60Hz; 220V/50Hz,150W




Objective lens:

Magnification RPV410-5X RPV410-10X RPV410-20X RPV410-50X
View Field φ80mm φ40mm φ20mm φ8mm
Working Distance 65mm 80mm 67.7mm 51.4mm
