Impact Device for Portable Hardness Tester, Hardness Test Block, Hardness Tester Accessories

China Impact Device for Portable Hardness Tester, Hardness Test Block, Hardness Tester Accessories supplier
Impact Device for Portable Hardness Tester, Hardness Test Block, Hardness Tester Accessories supplier Impact Device for Portable Hardness Tester, Hardness Test Block, Hardness Tester Accessories supplier

Large Image :  Impact Device for Portable Hardness Tester, Hardness Test Block, Hardness Tester Accessories

Product Details:

Place of Origin: China
Brand Name: Raytech
Certification: ISO CE
Model Number: Impact device, Hardness test block

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: standard export package
Delivery Time: about 3~5days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Impact Device For Portable Hardness Tester, Hardness Test Block, Hardness Tester Accessories Impact Device: D, DL, DC, C, D+15, E, G
Use: For Portable Hardness Tester Hardness Test Block Value: Can According To Customer









Impact Device for Portable Hardness Tester, Hardness Test



Block, Hardness Tester Accessories





Impact Device for Portable Hardness Tester, Hardness Test Block, Hardness Tester Accessories

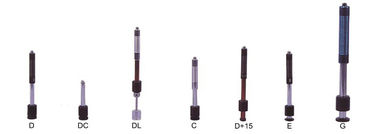

Type of impact device



DC(D)/DL D+15 C G E



Impacting energy

Mass of impact body



11mJ

5.5g/7.2g

11mJ

7.8g

2.7mJ

3.0g

90mJ

20.0g

11mJ

5.5g



Test tip hardness:

Dia. Test tip:

Material of test tip:



1600HV

3mm

Tungsten carbide

1600HV

3mm

Tungsten carbide

1600HV

3mm

Tungsten carbide

1600HV

5mm

Tungsten carbide

5000HV

3mm

synthetic diamond



Impact device diameter:



Impact device length:



Impact device weight:



20mm



86(147)/75mm



50g

20mm



162mm



80g

20mm



141mm



75g

30mm



254mm



250g

20mm



155mm



80g



Max. hardness of sample



940HV 940HV 1000HV 650HB 1200HV



Mean roughness value of sample surface Ra:





1.6μm

1.6μm 0.4μm 6.3μm 1.6μm



Min. weight of sample:



Measure directly(need support)



Need coupling tightly



>5kg



2~5kg





0.05~2kg

>5kg



2~5kg





0.05~2kg

>1.5kg



0.5~1.5kg





0.02~0.5kg

>15kg



5~15kg





0.5~5kg

>5kg



2~5kg





0.05~2kg



Min. thickness of sample Coupling tightly



Min. layer thickness for surface hardening





5mm





≥0.8mm



5mm





≥0.8mm



1mm





≥0.2mm



10mm





≥1.2mm



5mm





≥0.8mm





































Size of tip indentation



Hardness 300HV



Indentation diameter



Depth of indentation





0.54mm





24μm



0.54mm





24μm



0.38mm





12μm



1.03mm





53μm



0.54mm





24μm

Hardness 600HV



Indentation diameter



Depth of indentation





0.54mm





17μm



0.54mm





17μm



0.32mm





8μm



0.90mm





41μm



0.54mm



17μm

Hardness 800HV



Indentation diameter



Depth of indentation





0.35mm





10μm



0.35mm





10μm



0.35mm





7μm



--





--



0.35mm





10μm

Application



DC type used to measuring hole or inside face of cylinder,

DL type used to measuring elongated narrow slot or hole,

D type for routine measurements.



Suitable for measuring surface of the trench or concave. Suitable for measuring thin workpiece and harden surface. Suitable for heavy or rough castings and forgings. Suitable high hardness material.

Impact Device for Portable Hardness Tester, Hardness Test Block, Hardness Tester Accessories



Various type of standard

testing block

Impact Device for Portable Hardness Tester, Hardness Test Block, Hardness Tester Accessories Connecting cable
