Machinery Vibration Monitor, Vibration Measurement Machine, Vibration Testing Instrument VM908B

China Machinery Vibration Monitor, Vibration Measurement Machine, Vibration Testing Instrument VM908B supplier
Machinery Vibration Monitor, Vibration Measurement Machine, Vibration Testing Instrument VM908B supplier Machinery Vibration Monitor, Vibration Measurement Machine, Vibration Testing Instrument VM908B supplier

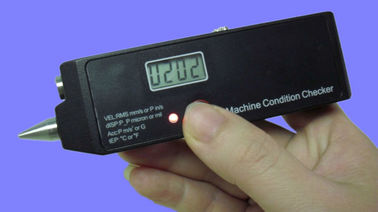

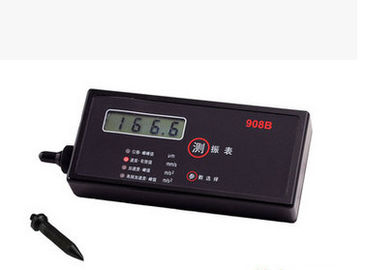

Large Image :  Machinery Vibration Monitor, Vibration Measurement Machine, Vibration Testing Instrument VM908B

Product Details:

Place of Origin: China
Brand Name: Raytech
Certification: ISO CE
Model Number: VM908B

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Carton
Delivery Time: 5days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 5000units per month
Contact Now
Detailed Product Description
Product Name: Hand-Held Vibration Meter, Gear Damage Tester, Bearing Faults Measurement VM908 Displacement: 10-500Hz
Velocity: 10-1000Hz Acceleration: 10-1000Hz(Inner Accelerometer 908B)10-10000Hz (Depending On External Accelerometer Model)
Overall Accuracy: +5% Pickup: Accelerometer With Handheld Probe And /or Magnetic Base







Machinery Vibration Monitor, Vibration Measurement Machine,





Vibration Testing Instrument VM908B





Machinery Vibration Monitor, Vibration Measurement Machine, Vibration Testing Instrument VM908B







Features:



Measuring vibration velocity, displacement and acceleration.



Small size, transducer included, battery powered, no other component required.



Optional for inner or external Accelerometer.



One button control both power and measurement. Very easy for use.



3 1/2 LCD digital display, sampling per second.



Holding function.



Automatic power off.



Suitable for monitoring machinery vibration caused by out-of-balance, misalignment,



gear damage, bearing faults and etc.




Specifications:



Amplitude Ranges



Displacement 1—1999 µm (or 200 mil) peak-peak





Velocity 0.1—199.9 mm/s (or 20 in/s) true RMS





Acceleration 0.1—199.9 m/s2 (or 20 g) Peak



Overall accuracy



+5%



Temperature range



0 - 40 0C



Frequency response



Displacement 10-500Hz







Velocity 10-1000Hz







Acceleration 10-1000Hz(Inner accelerometer 908B)



10-10000Hz (Depending on external accelerometer model)



Battery



9V 6F22, 25 hours of continuous operation



Pickup



Accelerometer with handheld probe and /or magnetic base



Dimensions



13×6×2.3 cm



Weight



200 g











TAG:   Machine Vibration Monitor
