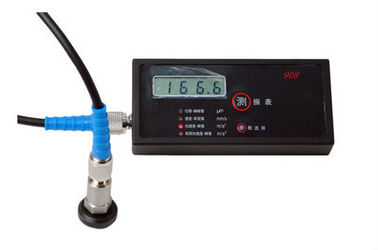

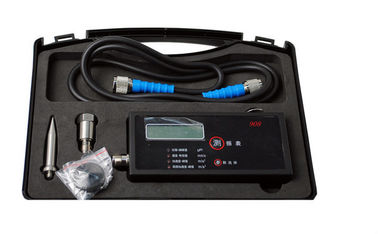

Hand-Held Vibration Meter, Gear Damage Tester, Bearing faults Measurement VM908

China Hand-Held Vibration Meter, Gear Damage Tester, Bearing faults Measurement VM908 supplier

Large Image :  Hand-Held Vibration Meter, Gear Damage Tester, Bearing faults Measurement VM908

Product Details:

Place of Origin: China
Brand Name: Raytech
Certification: ISO CE
Model Number: VM908

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Carton
Delivery Time: 5days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 5000units per month
Detailed Product Description
Product Name: Hand-Held Vibration Meter, Gear Damage Tester, Bearing Faults Measurement VM908 Displacement: 1—1999 µm (or 200 Mil) Peak-peak
Velocity: 10-1000Hz Acceleration: 0.1—199.9 M/s2 (or 20 G) Peak
Displacement: 10-500Hz Dimensions: 13×6×2.3 Cm
Weight: 200 G





Hand-Held Vibration Meter, Gear Damage Tester, Bearing



faults Measurement VM908





Hand-Held Vibration Meter, Gear Damage Tester, Bearing faults Measurement VM908





Features:



Measuring vibration velocity, displacement and acceleration.



Small size, transducer included, battery powered, no other component required.



Optional for inner or external Accelerometer.



One button control both power and measurement. Very easy for use.



3 1/2 LCD digital display, sampling per second.



Holding function.



Automatic power off.



Suitable for monitoring machinery vibration caused by out-of-balance, misalignment,



gear damage, bearing faults and etc.




Specifications:



Amplitude Ranges



Displacement 1—1999 µm (or 200 mil) peak-peak







Velocity 0.1—199.9 mm/s (or 20 in/s) true RMS







Acceleration 0.1—199.9 m/s2 (or 20 g) Peak



Overall accuracy



+5%



Temperature range



0 - 40 0C



Frequency response



Displacement 10-500Hz







Velocity 10-1000Hz







Acceleration 10-10000Hz (Depending on external



accelerometer model)



Battery



9V 6F22, 25 hours of continuous operation.



Pickup



Accelerometer with handheld probe and /or magnetic base



Dimensions



13×6×2.3 cm



Weight



200 g

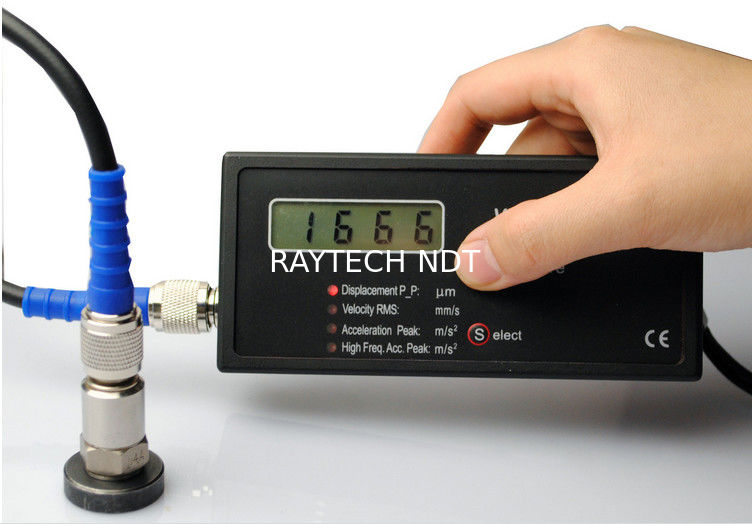

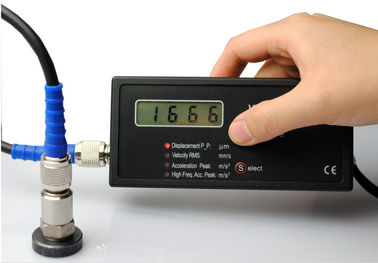

Two ways to measure:

Hand-Held Vibration Meter, Gear Damage Tester, Bearing faults Measurement VM908



Hand-Held Vibration Meter, Gear Damage Tester, Bearing faults Measurement VM908

If you need this accessory, please declare in order.
