Pipeline Welding Testing Machine, X-ray Pipeline Crawler, Pipeline X ray flaw detector RXPC-100B

China Pipeline Welding Testing Machine,  X-ray Pipeline Crawler, Pipeline X ray flaw detector RXPC-100B supplier
Pipeline Welding Testing Machine,  X-ray Pipeline Crawler, Pipeline X ray flaw detector RXPC-100B supplier Pipeline Welding Testing Machine,  X-ray Pipeline Crawler, Pipeline X ray flaw detector RXPC-100B supplier

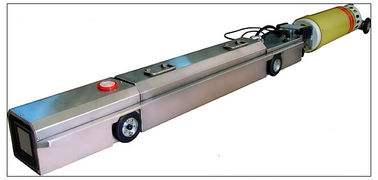

Large Image :  Pipeline Welding Testing Machine, X-ray Pipeline Crawler, Pipeline X ray flaw detector RXPC-100B

Product Details:

Place of Origin: China
Brand Name: Raytech
Certification: ISO CE
Model Number: RXPC-100B

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Carton
Payment Terms: Western Union, MoneyGram, T/T, L/C
Supply Ability: 100units per month
Contact Now
Detailed Product Description
Product Name: Pipeline Welding Testing Machine, X-ray Pipeline Crawler, Pipeline X Ray Flaw Detector Pipe Diameter Detecting Range: Φ380—Φ1016mm
Crawler Length: 2000mm Creeping Speed: 16-18M/min
Creeping Distance: 2KM Exposure Time: 1s~1h Continues Adjustable
Exposure Voltage: 5 Selection Total Weight: 125kgs



Pipeline Welding Testing Machine, X-ray Pipeline Crawler,



Pipeline X ray flaw detector RXPC-100B



Pipeline Welding Testing Machine,  X-ray Pipeline Crawler, Pipeline X ray flaw detector RXPC-100B



The X-ray pipeline crawlers include the special part that can detect the welding line of long

pipeline. The X-ray pipeline crawlers have the advantages of high radiographic quality, high

imaging sensitivity, low failure rate and high work efficiency. The X-ray pipeline crawlers have

differential driving and vibration absorbers. The chassis of the X-ray pipeline crawlers can be

moved in the pipeline steadily without off center running and overturning. The X-ray pipeline

crawlers can be moved in the pipeline with great efficiency because it is controlled by PLC with

protecting it from blocking and under voltage. The X-ray pipeline crawler is easy to be separated

into several parts and then to be put together, so it is easy to carry. You can change the exposure

parameter and make the X-ray pipeline crawler move, stop and have an exposure with the

exterior controlling source. The X-ray pipeline crawlers are easy to operate.


Specification of X Ray Pipeline Crawler



Model

Specification


RXPC-100A RXPC-100B RXPC-100C


Pipe diameter detecting range


Φ800—Φ1500mm Φ380—Φ1016mm Φ273—Φ700mm


Total weight


140KG 125KG 100KG


Crawler length


2200mm 2000mm 2000mm


Creeping speed


15M/min 16-18M/min 15M/min


Creeping distance


2KM 2KM 2KM


Locating error


±5mm ±5mm ±5mm


Max.output voltage


300Kv 250Kv 200Kv


Max.outout current


3mA 3mA 3mA


Climbing ability


40° 40° 25°


Radiation angle


360°*35° 360°*35° 360°*35°


Output power


1.5KW 1.25KW 1KW


Battery energy


22Ah/120V 17Ah/120V 12Ah/120V


Motor power


300W 300W 200W


Exposure time


1s~1h continues adjustable 1s~1h continues adjustable 1s~1h continues adjustable


Exposure voltage


5 selection 5 selection 5 selection


Operation temperature


-30°~ 70° -30°~ 70° -30°~ 70°




The crawler include below parts as standard accessories:

Main vehicle

Lead acid pile: 110V(22Ah)

X-ray machine: 250KV/5mA

Instruction source
