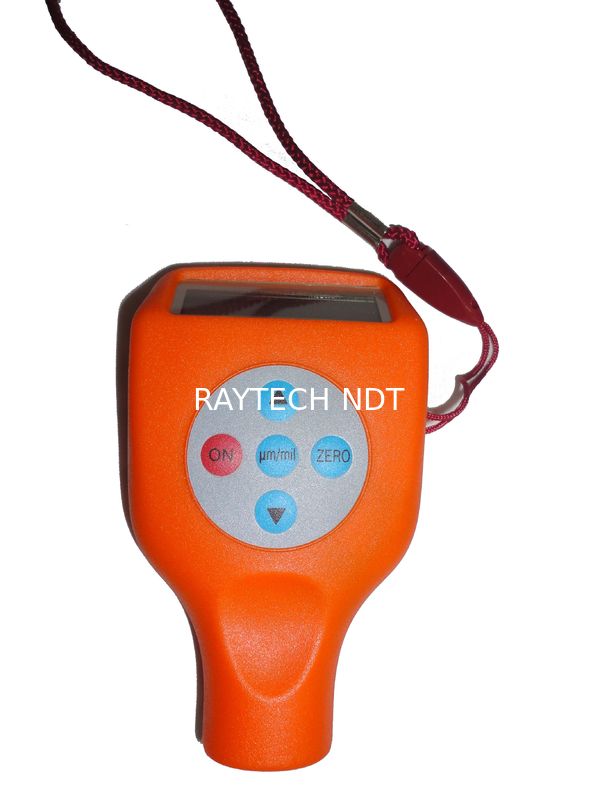

OTG-810F Painting Thickness Tester, China Coating Thickness Gauge

China OTG-810F Painting Thickness Tester, China Coating Thickness Gauge supplier
OTG-810F Painting Thickness Tester, China Coating Thickness Gauge supplier OTG-810F Painting Thickness Tester, China Coating Thickness Gauge supplier

Large Image :  OTG-810F Painting Thickness Tester, China Coating Thickness Gauge

Product Details:

Place of Origin: China
Brand Name: Raytech
Certification: ISO
Model Number: OTG-810F

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: standard export package
Delivery Time: about 3~5days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Painting Thickness Tester, China Coating Thickness Gauge Color: Orange
Probe Type: Inbuild Probe Measure Range: 0~1250um
Power Supply: 2 * AA Batteries Weight: 99g (with Battery)





OTG-810F Painting Thickness Tester, China Coating



Thickness Gauge



OTG-810F Painting Thickness Tester, China Coating Thickness Gauge







Introduction



This device is a portable meter. It is capable of measuring coating thickness quickly, precisely and without



injury, both for the laboratory and engineering environment. It is currently widely used in manufacturing,



metal processing industry, chemical industry, commodity inspection and testing fields; and is essential for



material protection major.





Features



 Thickness measurement using Magnetic Method to measure the non-magnetic



coating on a magnetic metal substrate.



 Single-point or two-point method could be used to correct probe system deviation,



in order to ensure the accuracy of the device in the process of measuring.



  Power voltage indicator.



  Speaker beep while operating.



  Power-off automatically when idle; manually power-off available.



  Negative display function to ensure the accuracy of zero point calibration.



  Ultra-low power consumption, less than 10 μA in standby mode.





Technical Data



  Measuring range: 0-1250 μm



  Power supply: 2 * AA batteries



  Measurement deviation: zero calibration ± (1 + 3% H); two-point calibration ± [(1%



~ 3% H)] H + 1.5



  Ambient temperature: 0-40 ℃



  Relative humidity: ≤85%



  Minimum substrate: 10 * 10mm



  Minimum curvature: 5mm convex; 5mm concave



  Thinnest substrate: 0.4mm



  Weight: 99g (with battery)



  Size: 102mm * 66mm * 24mm





Item Checklist



Name

Quantity

Meter device

1

Standard films

5

Base substrate

1

Packing box

1

User Manual

1

























Services



This instrument has one-year quality guarantee, maintenance for all life.



If there are any problem of this product, please contact the dealer in time.





TAG: Painting Thickness Tester
