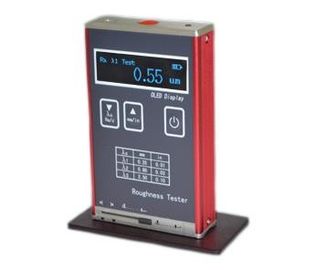

SRT100 Surface Roughness Tester, Ra Rz Surface Roughometer,Surface Finish Measuring Instrument

China SRT100 Surface Roughness Tester, Ra Rz Surface Roughometer,Surface Finish Measuring Instrument supplier
SRT100 Surface Roughness Tester, Ra Rz Surface Roughometer,Surface Finish Measuring Instrument supplier SRT100 Surface Roughness Tester, Ra Rz Surface Roughometer,Surface Finish Measuring Instrument supplier

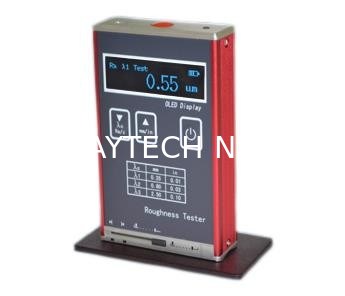

Large Image :  SRT100 Surface Roughness Tester, Ra Rz Surface Roughometer,Surface Finish Measuring Instrument

Product Details:

Place of Origin: China
Brand Name: RAYTECH
Certification: ISO CE
Model Number: SRT100

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: standard export package
Delivery Time: about 3~5days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: SRT100 Surface Roughness Tester, Ra Rz Surface Roughometer,Surface Finish Measuring Instrument Testing Parameters: Ra Rz
Stroke Length(mm): 6 Sample Length(mm): 0.25 ,0.80 ,2.50
Evaluation Length(mm): 1.25 ,4.0 ,5.0 Measuring Range: Ra: 0.05 ~ 15.0 Rz: 0.1 ~ 50.0

SRT100 Surface Roughness Tester, Ra Rz Surface Roughometer,

Surface Finish Measuring Instrument





SRT100 Surface Roughness Tester, Ra Rz Surface Roughometer,Surface Finish Measuring Instrument



Main Function:



1.Shape used to pull aluminum mold design, durable, anti-electromagnetic interference ability



significantly, in line with the design of the new trend.



2.Using high-speed DSP processor for data processing and calculation, measurement and



computation speed is greatly improved.



3.Liquid crystal display wide temperature using OLED color display, popular high brightness, no



visual angle,, is suitable for various occasions.



4.The lithium ion rechargeable battery, can work for a long time, no memory effect, can while



charging, charging time is short, long battery life.



5.Charging and communication using the common USB interface. Using a dedicated charger or



computer USB port for charging, convenient and quick.



6.Dot matrix liquid crystal display, interface prompt information rich.



7.Real-time monitoring of lithium battery power and display, and to remind users to charge with



charging progress indication.



8.Automatic shutdown function and low power design of software and hardware of the instrument



with long working hours, suitable for field use.





Specification:



1.Testing parameters(µm ):Ra,Rz



2.Stroke length(mm):6



3.Sample length(mm):0.25 ,0.80 ,2.50



4.Evaluation length(mm):1.25 ,4.0 ,5.0



5.Measuring range(µm ): Ra:  0.05 ~ 15.0  Rz:  0.1 ~ 50.0



6.Error:±(7-10)%



7.Variability: <12%



8.Transducer contacting pin round diameter and angle:



9.Contacting pin round diameter:10 µm±1 µm


10.Battery:3.7V Li



11.Size:106 mm×70 mm×24 mm



12.Weight:200g



13.Sensor needle static force and its rate of change:



14.Stylus static force: ≤ 0.016N



15.Force measuring rate of change: ≤ 800N/m



16.Working conditions:



17.Temperature:  -20℃~40℃



18.Relative humidity:   <  90%



19.No shake and coercivity around





Standard package



NO.

Name

Qty

1

Main unit

1

2

Transducer

1

3

Batteries

1

4

Charger

1

5

Standard Test Block

1

6

Operation Manual

1

7

Certificate of approval

1

8

Instrument case

1



SRT100 Surface Roughness Tester, Ra Rz Surface Roughometer,Surface Finish Measuring Instrument

TAG: Surface roughness tester     Portable Surface Roughness Gauge



         Surface Profile Gauge
